0.5T Remote Control Class A4 Industrial Electric Winch

Minimum Order Quantity : 1 set Price : USD 1000-USD3000/set
Packaging Details : High quality plywood crate Delivery Time : 15 days after receiving deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 100 set/per month
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: JKD

Detail Information

Usage: Hoisting Type: Liftling Equipment
Capacity: 0.5ton-100ton Rope Length: 10-500m
Power Soruce: Electric Rope Type: Steel Wire
High Light:

A4 Industrial Electric Winch

,

0.5T Industrial Electric Winch

,

A4 electric capstan winch

Product Description

0.5T Remote Control Industrial Electric Winch Working Class A4 ISO Certification

Product description:



Electric winch, also known as winch, covers a small area, simple installation, convenient displacement, accurate positioning, stable advantages, can be used for vertical lift, horizontal or tilting pull material.A type winch is composed of an electric motor, a coupling, a brake, a gear box and a drum, which is driven by mechanical power to complete the traction work by winding a rope.



Technical parameters:



Model Capactiy Lifting Speed Motor Motor R.P.M Voltage Lifting N.W.
(Kg) (m/min) Power (V) height (kg)
    (Kw)   (m)
JKD-300/600kg 300/600 14/7 0.6 1380 380 60 32
JKD-400/800kg 400/800 12/6 1.8 1380 220 60 34
JKD-500/1000kg 500/1000 12/6, 16/8 1.5 1380 380 100 50
JKD-750/1500kg 750/1500 16/8 2.0 1380 380 100 65
JKD-1/2T 1000/2000 16/8 3.0 1380 380 100 120



Product Advantages:


1. The hoist is more integrated and modular in structure design, making the parts of the equipment more universal.


2. The whole machine is made of C section steel, making it stronger and stronger.


3. The surface adopts anti-rust spray treatment process, which is anti-corrosion and not easy to fade.


4. The use of cyclic gear set rotation, improve the efficiency of the utilization rate, more compact and reasonable reduction device.


The gear is made of 45 steel and precision machined, which has a longer service life and a stronger resistance to damage than the traditional steel gear of winch.



Notes for use:


1. Wire ropes on the drum should be arranged in a neat way. If overlap or oblique winding is found, the wire ropes should be stopped and rearranged.It is strictly prohibited to pull and step on the wire rope with hands and feet in rotation.The wire rope is not allowed to be released completely, and at least three turns should be kept.


2. The wire rope shall not be knotted or twisted, and shall be replaced when the broken wire exceeds 10% in one pitch.


3. During the operation, no one is allowed to cross the wire rope. After the object (object) is lifted, the operator is not allowed to leave the winder.Objects or hanging cages should be lowered to the ground when resting.


4. During the operation, the driver and signalman shall maintain good visibility with the hoisting object, and the driver and signalman shall cooperate closely and obey the unified command of the signal.


5. In case of power failure during operation, the power should be cut off and the hoist should be lowered to the ground.


6. Follow the signals of the commanding personnel during the work. If the signal is unclear or may cause an accident, the operation should be suspended.


7. In case of sudden power failure during operation, pull the knife and put down the conveyance immediately.





Product display

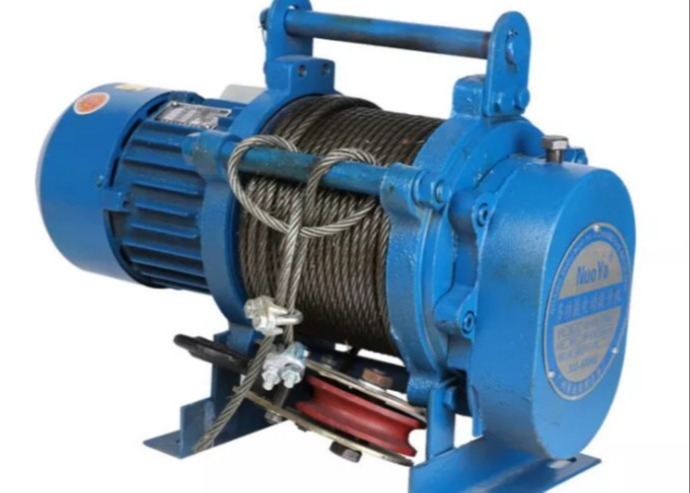

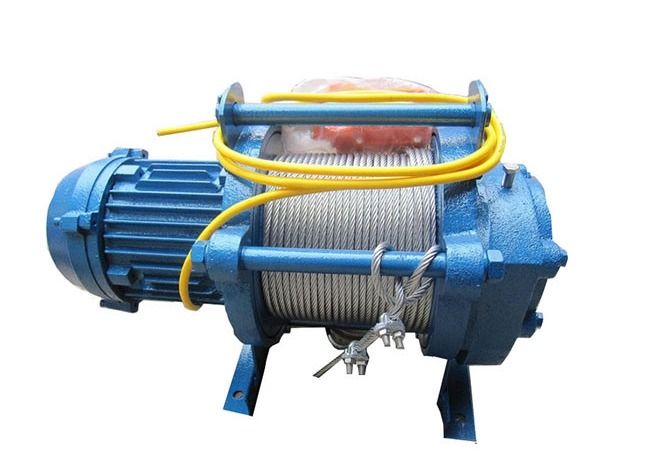

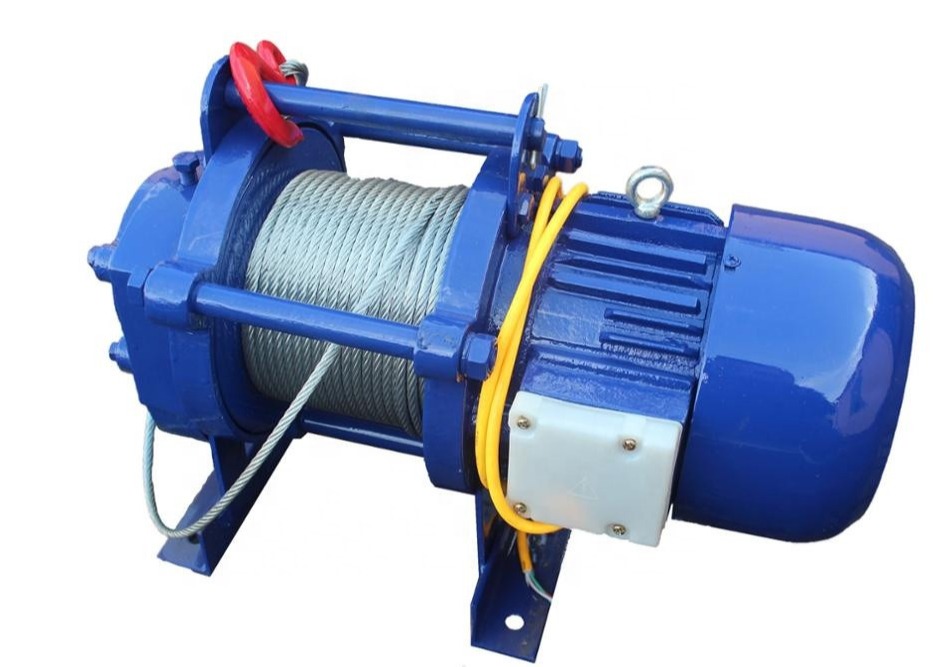

0.5T Remote Control Class A4 Industrial Electric Winch 00.5T Remote Control Class A4 Industrial Electric Winch 1



Packaging and shipping



1. Use the wooden box made of inspection free plates in line with export requirements, and use plywood with a thickness of 9mm-15mm.



2. The wooden box made of solid wood can meet the requirements of export through fumigation and detoxification.



3 boxes board joint is tight, the box board combination is smooth without dislocation, the cloth nail is reasonable, the reinforcement belt is not less than 2, to meet the requirements of the export.

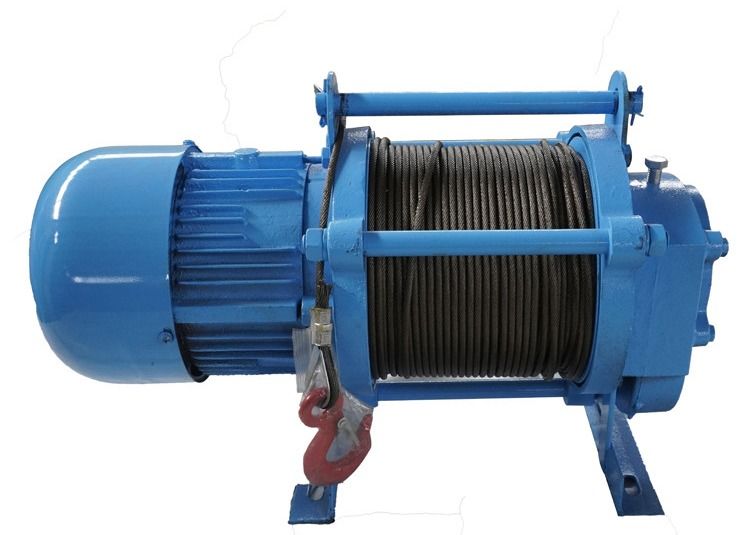

0.5T Remote Control Class A4 Industrial Electric Winch 2
