Industry Cable Pulling 10T Heavy Duty Electric Winch

Minimum Order Quantity : 1 set Price : USD 3000-USD6000/set
Packaging Details : High quality plywood crate Delivery Time : 15 days after receiving deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 100 set/per month
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: JM

Detail Information

Capacity: 10t Power Source: 380V 50Hz 3phase Or According To Your Demand
Application: Construction, Bridges, Metallurgy, Mining Color: Design As Your Requirement
Material: Steel Motor: Nanjing Chinese Famous Brand
High Light:

10T Heavy Duty Electric Winch

,

100M Heavy Duty Electric Winch

,

10T electric trolley winch

Product Description

Heavy Duty 10T JM Model Industry Cable Pulling Electric Winch Fast Speed

Product description:



Electric winch is also known as fast electric winch, it is driven by the motor as power, through the driving device so that the drum rotary lifting tools.



The motor can control its speed through a frequency converter.It is mainly used for hoisting, unloading and hauling heavy objects.



Such as various large and medium-sized concrete, steel structures and mechanical equipment installation and disassembly.



Suitable for civil construction and installation of construction and installation companies, mining areas and factories.Therefore, it is not only applicable to mining, but also can be used in ordinary engineering for lifting traction movement.



Technical parameters:



Basic Parameters Rated Load Average Speed of Rope Capacity of Rope Rope Diameter Motor Power Overall Dimension Total Weight
Model KN m/min m mm KW mm kg
JM1 10 15 100 9.3 3 620×701×417 270
JM1.6 16 16 150 12.5 5.5 945×996×570 500
JM2 20 16 150 13 7.5 945×996×570 550
JM3.2 32 9.5 150 15.5 7.5 1430×1160×910 1100
JM3.2B 32 12 195 15.5 7.5 1082×1014×610 536
JM5 50 10 270 21.5 11 1235×1230×805 1560
JM5B 50 9.5 200 21.5 11 1620×1260×945 1800
JM5C 50 9.5 350 21.5 11 1235×1230×805 1800
JM5D 50 15 350 21.5 15 1235×1230×805 1850
JM5E 50 20 350 21.5 22 1235×1230×805 2000
JM20 200 10 600 43 45 3950*2560*1950 9900
JM25 250 9 700 48 55 4350*2800*2030 13500
JM32 320 9 700 56 75 4500*2850*2100 14800
JM50 500 9 800 65 90 4930*3050*2250 19500
JM65 650 10.5 3600 64 160 5900*4680*3200 46000
We can design and manufacture all kinds of non-standard product according to your requirement



Fixing method of electric winch:


1. The electric winch shall be installed in a flat, open and local place with no obstacles in front. The operator shall be able to look directly at the hoisting process of the equipment and withstand the command signal together.


2. The position of the device of electric winch should be a little further away from the middle of hoisting, such as hoisting with the mast, the interval shall not be less than the height of the mast.


3. The spacing between the first guide block and the axis of the reel should be more than 25 times the length of the reel to ensure that the deflection Angle is less than 2°, so that the wire ropes wound around the reel can be arranged in sequence and not wrapped together.


4. The fixed position of the electric winch should be firm, beware of overturning and moving.Usually, anchor, workshop plinth and weight pressure are used as anchor points and the fixed rope binding the base of electric hoist should be drawn from both sides to prevent the base from moving after being stressed.


5. Make the traction wire rope horizontally wound into the reel from the bottom of the reel by adjusting the orientation of the guide pulley.



Electric winch reducer:


The reducer plays the role of matching speed and transferring torque between the prime mover and the working machine or actuator. The reducer is a relatively precise machine. The purpose of using it is to reduce speed and increase torque.According to the different transmission series can be divided into single stage and multi - stage reducer;


The reducer plays the role of matching speed and transferring torque between the prime mover and the working machine or actuator. The reducer is a relatively precise machine. The purpose of using it is to reduce speed and increase torque.


Reducer is generally used in low speed high torque transmission device, the electric motor, internal combustion engine, or other high speed operating of power on the input shaft of the reducer gear of big gear on the output shaft gear mesh less to achieve the purpose of deceleration, ordinary there is few on the same principle of gear reducer and achieve ideal reduction effect, the size of the ratio of the number of teeth on the gears, transmission ratio.


Scope of application for electric winch:


Due to small volume, light weight, heavy lifting, flexible operation, safe and reliable, durable and other characteristics of many modern enterprises are used, suitable for construction, Bridges, metallurgy, mining and other enterprise site, used for material lifting and large hoisting engineering for lifting, dragging all kinds of materials and equipment.



Product display

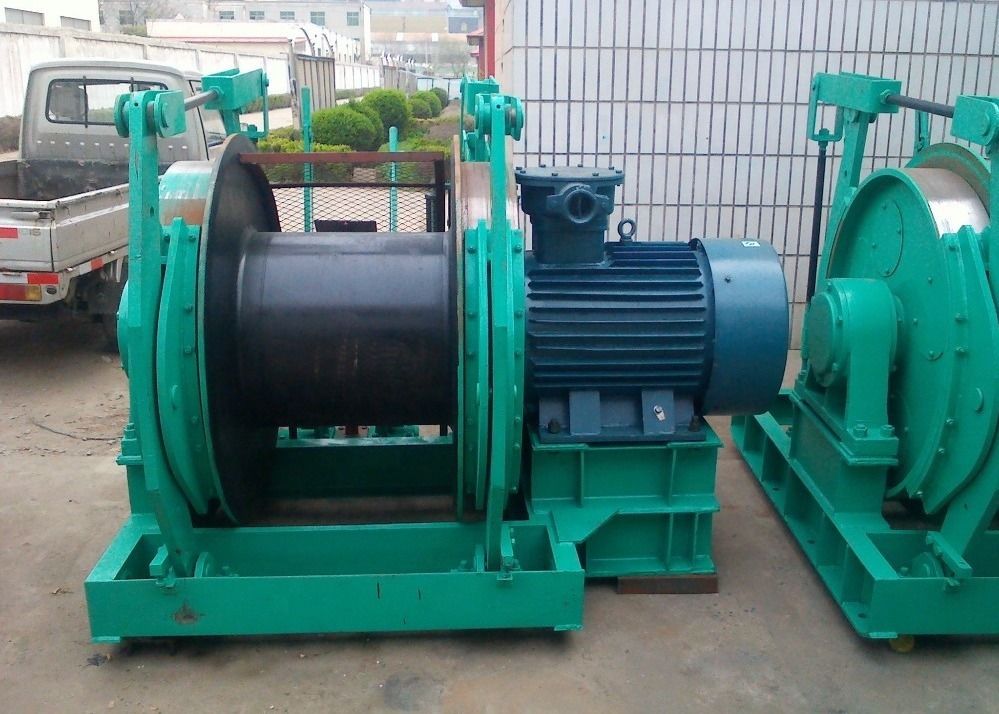

Industry Cable Pulling 10T Heavy Duty Electric Winch 0

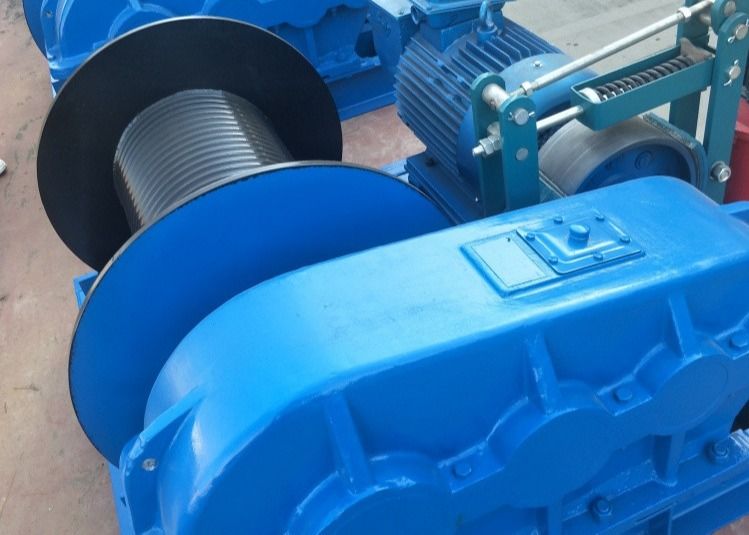

Industry Cable Pulling 10T Heavy Duty Electric Winch 1

Packaging

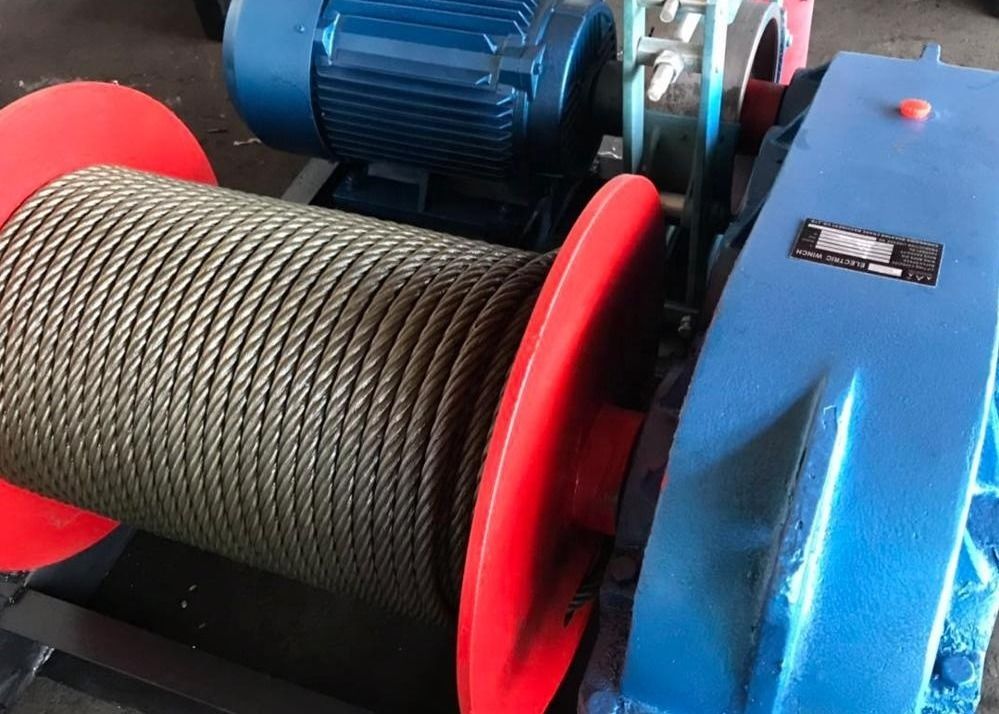

Industry Cable Pulling 10T Heavy Duty Electric Winch 2
