Wire Rope 34m/min Industrial Electric Winch For Construction Material

Minimum Order Quantity : 1 set Price : USD 3000-USD6000/set
Packaging Details : High quality plywood crate Delivery Time : 15 days after receiving deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 100 set/per month
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: JK

Detail Information

Rope Diameter: 21mm Structure: Strong Steel
Speed: High Speed,19-34m/min Weight: 21Ton
Name: Industrial Electric Pulling Cable Winches Application: Warehouse, Workshop
High Light:

34m/min Industrial Electric Winch

,

21T Industrial Electric Winch

,

34m/min electric hoist lifting winch

Product Description

High Speed Wire Rope Pulling 50 Ton Used For Lifting Construction Material

Product description:



Fast winch is also called winch.A device driven by human or mechanical power to complete the traction of a reel by winding a rope.Split and electric, mainly electric - based.The rated speed of the fast winch is 19-34m/min. Its characteristics are fast lifting speed and high working efficiency.


The rapid electric winch is mainly used for vertical transportation and pile driving.As a highly efficient lifting equipment, it is widely used in many industries.



Technical parameters:



Type Rated Load Rated Speed Rope capacity Motor Model Motor Power Overall Dimension (mm) Total Weight(kg)
(kn) (m/min) (m) (kw)
JK1 10 22 100 Y112M-4 4 620*701*417 300
JK1.6 16 24 120 Y132S-4 5.5 945*996*570 500
JK2 20 24 120 Y132M-4 7.5 945*996*570 550
JK3.2 32 25 200 YZR180L-6 15 1325*1335*840 1200
JK5 50 30 200 YZR225M-6 30 1900*1620*985 2400
JK8 80 25 250 YZR280S-8 45 1533*1985*1045 3500
JK10 100 30 300 YZR315S-8 55 2250*2500*1300 5100



Purpose of fast winch:


Due to high bearing capacity, low cost, compact product structure, high transmission efficiency, good technical reliability (braking performance) and other advantages have been used by many modern enterprises, widely used in building construction, installation process for lifting, lifting building materials, components, equipment, etc..It can also be used in mines, docks, Bridges, warehouses and other long-term enhancement of goods use.


Fast winch is mainly used in construction, railway, highway, factory and mine, port, bridge, installation for vertical lifting, horizontal and slope dragging and other working conditions.The model of the fast winch is JK, and the rated speed of the wire rope is ranging from 19-34m/min.



Instructions for fast winch:


1. Hoist before use must check and tighten the screws and screw off gas screw with just the right amount of mechanical gear lubricants general logo above the hoist gear box (pitted), then tighten the oil screw hoist, and empty, first for oil in the bearing and gear, drive before the formal use electric hoist;


2. Every time the hoist is loaded with heavy objects, a low distance test lifting must be carried out first to check whether the brake performance of the hoist is too tight or too loose. If so, the spring nut of the brake lever shall be adjusted timely;


3. Before the power is connected, the good condition of the ground wire must be checked to prevent electric shock;


4. During the use of electric winch, if the brake disc is stained with oil and the braking efficiency is reduced, sprinkle some dry powder (such as dry lime powder), that is, the braking efficiency of winch can be restored;


5. Frequently check the fasteners in all parts of the hoist to prevent looseness which may affect the safety of use;


6. The number of safety turns of the wire rope winding on the winch drum shall not be less than 3.



Main characteristics of fast winch:


First, durable and reliable, long service life


The main parts are made of high quality steel, the castings are made of ductile iron, the transmission parts are heat-treated, fully lubricated, running smoothly, all the rotating mechanisms are sealed, the dust and dust cannot be invaded, the parts are not easy to wear out, the service life is long, saving maintenance costs;


Second, the braking performance is safe and reliable


The new ZD series conical rotor braking motor is selected. The motor is equipped with braking device, which has large starting torque and reliable braking.When the power is on, the brake automatically opens, and when the power is off, the brake automatically closes, so as to achieve safety and reliability;


Three, smooth operation, low noise


The planetary transmission device with little tooth difference is different from the general power transmission mechanism, and the operation is very uniform and stable.In addition, transmission gear, fixed pin plate, eccentric shaft through static and dynamic balance correction, reduce vibration, reduce noise, improve the working environment;


Four, easy to operate, simple maintenance


Use button operation, safe and light.There are two kinds of operating devices for users to choose. Generally, drivers are used to sit on the seat to operate. If the site conditions do not allow, the operation button can be used to move the operation.The transmission system of the whole machine is completely sealed, so the lubrication system is not polluted, just need to fill lubricating oil regularly, check the fastening of connecting bolts, reduce the daily dimension design, advanced technology, compact structure, small volume, light weight.





Product display

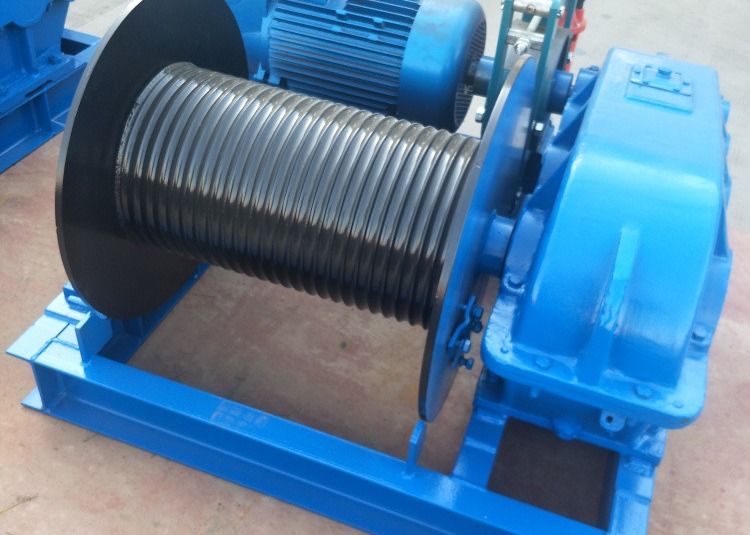

Wire Rope 34m/min Industrial Electric Winch For Construction Material 0

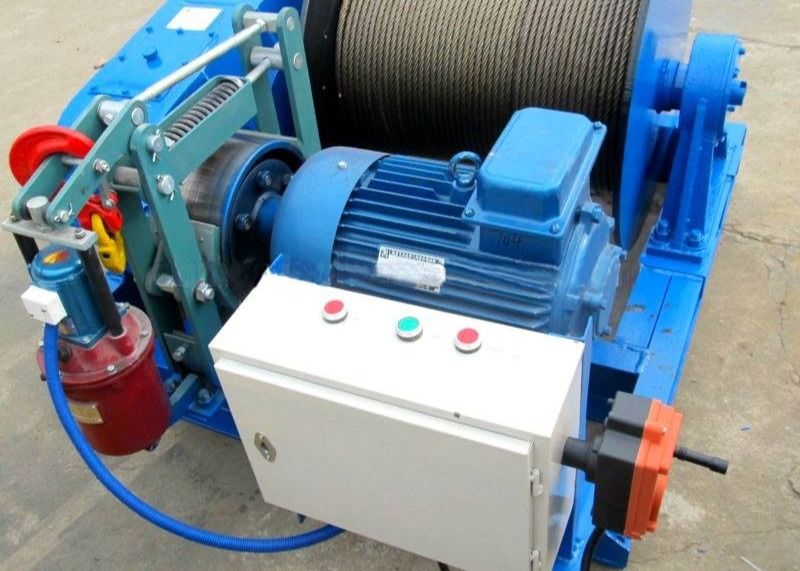

Wire Rope 34m/min Industrial Electric Winch For Construction Material 1

Packaging

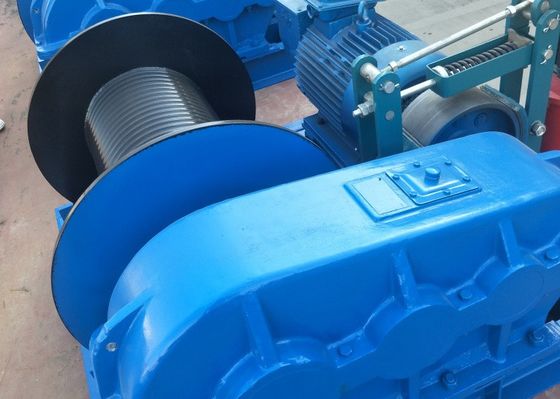

Wire Rope 34m/min Industrial Electric Winch For Construction Material 2
