Straight Line 1.5 Ton Industrial Electric Winch Lifting Equipment

Minimum Order Quantity : 1 set Price : USD 1000-USD3000/set
Packaging Details : High quality plywood crate Delivery Time : 15 days after receiving deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 100 set/per month
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: JKD

Detail Information

Use: Lifting Or Pulling Capacity: 1.5Ton
Rope Length: 200m Power Supply: 3 P380V 50HZ Or Custom
Core Components: Motor Condition: New
Lift Speed: 8-16m/min Machinery Test Report: Provided
High Light:

1.5 Ton Industrial Electric Winch

,

16m/min Industrial Electric Winch

,

1.5 Ton electric pulling winch

Product Description

JKD Model Straight Line Industrial Electric Winch Light Weight 1.5Ton Lifting Equipment​

Product description:



Straight line electric winch belongs to hoist products one of hoist product has compact structure, use safety, less maintenance, low maintenance cost advantages, Silence according to the customer's needs a type hoist processing customized, one glyph hoist adopts 380 v power supply, on either side of the drum, the motor on one side, one side is reducer, reducer adopts planetary gear reducer, inside is more convenient to operate, Silence a bridge type hoist using mining, production, warehouse, etc.The customer can make repairs and replacements.The winch is divided into two kinds: simple speed and single drum speed.Can be customized according to the needs of customers.The price of one - type winch is reasonable.



Technical parameters:



Type Rated load(KN) Drum Size Rope Motor model Power kw Rotation Speed r/min Overall Dimension mm Total Weight kg
Diameter mm Length mm Rope Capacity m Size Diameter mm Lifting Speed m/min length width height
0.5 T 5 160 340 200 6*19 7.7 22 Y100-6 1.5 960 580 660 350 160
1T 10 160 400 200 6*19 9.3 22 Y132-6 3 960 620 780 380 260
2T 20 220 480 150 6*19 12.5 22 Y160-6 7.5 960 750 780 480 600
5T 50 320 900 400 6*19 17.5 8 Y180-6 11 960 1270 1500 800 1400



Product Features:



1, double brake system, more safe and reliable.



2. High efficiency, light weight motor, asbestos-free brake system, low energy consumption.



3, stamping steel shell, light and strong, rustproof, corrosion resistant, greatly improve the service life.



4, lightweight, beautiful and durable canvas chain bag, convenient storage chain.



5, with limit switch device, when reaching the limit will automatically stop operation, to prevent the chain out of danger.



Points to note during installation of electric winch:


1. For newly installed or dismantled hoist, empty car test should be carried out for several times at first.But before the completion of installation, do not try to turn on the electricity;


2. The motor shall have a separate operating switch, and overload and torque protection devices shall be installed. The metal shell shall be reliably grounded to ensure safety;


3. During the operation of the winch, if there is any abnormal sound, brake failure or high temperature rise of the reducer bearing, it shall be stopped for inspection and troubleshooting.


4. During the use of the hoist, it is prohibited to use the hoist in an unpermitted environment and under the circumstances of exceeding the rated load and the rated closing times per hour (120 times).


5, installation, debugging and maintenance, wire rope electric hoist must strictly check whether the limit device is flexible and reliable, hoist load test is based on the rated load weight, for repeated rise and fall and move around the test, check whether some of its mechanical transmission is normal and reliable.


6. During operation, the operator should concentrate, see the signal clearly and follow the command.During the operation of the winch, the operator is not allowed to leave his post.When lifting heavy objects, the operation should be gentle and smooth, do not rise or fall rapidly, and try to avoid emergency braking in the air.





Safe Use of electric winch:


1. During installation, the base shall be firmly balanced, the surrounding drainage shall be unimpeded, the ground anchor shall be set up reliably, and a work shed shall be built.The position of the operator should be able to see the person in charge and the object being dragged or lifted.


2, before the operation, should check the hoist and the ground fixed, elastic coupling shall not be loose.Safety devices, protective facilities, electrical lines, zero or ground connection wires, brake devices and wire ropes shall be inspected and used only after they are all qualified.


3, the use of belt or open gear transmission part, should be equipped with a protective cover, the guide pulley shall not use the open plate pulley.







Product display

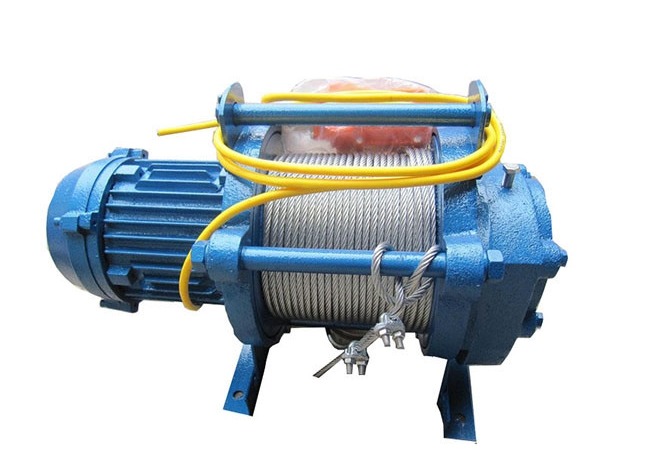

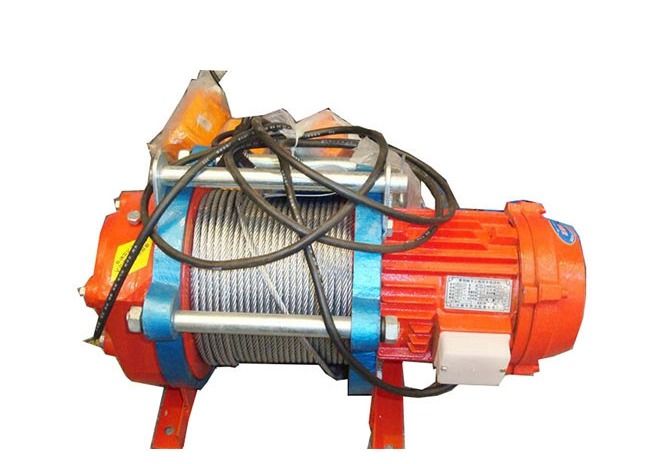

Straight Line 1.5 Ton Industrial Electric Winch Lifting Equipment 0Straight Line 1.5 Ton Industrial Electric Winch Lifting Equipment 1



Packaging and shipping



1. Use the wooden box made of inspection free plates in line with export requirements, and use plywood with a thickness of 9mm-15mm.



2. The wooden box made of solid wood can meet the requirements of export through fumigation and detoxification.



3 boxes board joint is tight, the box board combination is smooth without dislocation, the cloth nail is reasonable, the reinforcement belt is not less than 2, to meet the requirements of the export.

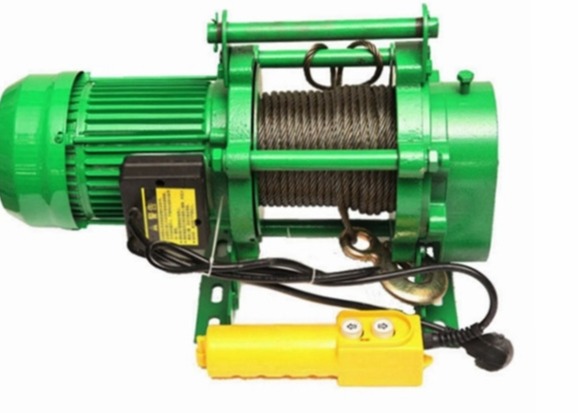

Straight Line 1.5 Ton Industrial Electric Winch Lifting Equipment 2
