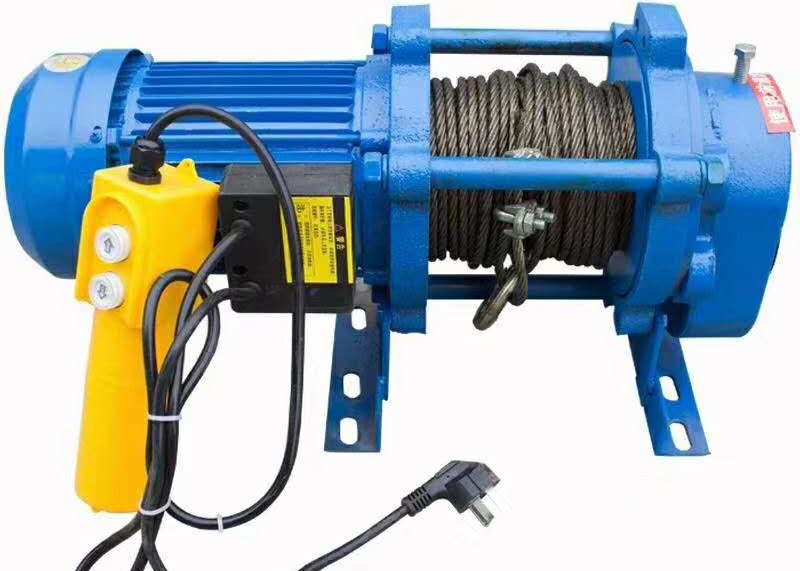

Vertical 2T Rope Length 100m Material Handling Electric Winch

Minimum Order Quantity : 1 set Price : USD 1000-USD3000/set
Packaging Details : High quality plywood crate Delivery Time : 15 days after receiving deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 100 set/per month
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: JKD

Detail Information

Use: Lifting Or Pulling Product Name: JKD Electric Winch
Test Load: 1.5 Times Application: Construction Site Lifter
After-sales Service Provided: Video Technical Support Sling Type: Wire Rope
High Light:

Length 100m Material Handling Electric Winch

,

2T Material Handling Electric Winch

,

Length 100m electric hoist lifting winch

Product Description

Pulling Cable And Vertical Lifting 2T Wire Rope Length 100m Wood Handling Electric Winch

Product description:



Winch is a light and small hoisting equipment, which is used to hoist or pull heavy objects by winding steel wire rope or chain with winding drum, also known as winch. The winch can lift vertically, horizontally or obliquely. The winch is divided into three types: manual winch, electric winch and hydraulic winch. Mainly electric winch. It can be used alone or as a component of hoisting, road building, mine hoisting and other machinery. It is widely used because of its simple operation, large amount of rope winding and convenient displacement. Mainly used in building, water conservancy engineering, forestry, mining, wharf and other materials lift or level drag.



Technical parameters:



Model Capactiy Lifting Speed Motor Motor R.P.M Voltage Lifting N.W.
(Kg) (m/min) Power (V) height (kg)
    (Kw)   (m)
JKD-300/600kg 300/600 14/7 0.6 1380 380 60 32
JKD-400/800kg 400/800 12/6 1.8 1380 220 60 34
JKD-500/1000kg 500/1000 12/6, 16/8 1.5 1380 380 100 50
JKD-750/1500kg 750/1500 16/8 2.0 1380 380 100 65
JKD-1/2T 1000/2000 16/8 3.0 1380 380 100 120



Installation and use of electric winch:


There are two types of one - type winch: fixed type and trolley type.Fixed type is divided into "A1, A2, A3, A4" four types, the ground, wall multi-angle fixed 360° arbitrary rope, or directly installed on the framework for use, such as various types of cranes, small cranes.



The trolley type has the running function, plus the walking sports car, can be installed on the track for use.Trolley type crane can be installed on a variety of forms of crane or suspended on the I-beam, linear, curved track reciprocating lifting heavy objects, fixed hoist can be installed on the fixed support for vertical or different angles (360°) of traction.


Operating environment of electric winch:


One word hoist can be used alone, also can be in lifting, road construction and mine machinery components, mainly used in construction, water conservancy, forestry, mines, docks, ports, electricity, steel, shipbuilding, petrochemical industry, railway, building, metallurgy, chemical industry, automobile manufacturing, plastics machinery, industrial control, highway, bulk transportation, pipeline auxiliary tunnel and shaft, slope protection for governance, salvage, ocean engineering, airport construction, bridge, aviation, aerospace, stadium, indoor, outdoor and other material lift or drag.









Notes for electric winch:


(1) Overloading is strictly prohibited.That is, more than the rated tonnage.


(2) High temperature objects shall not be directly lifted. For objects with edges and corners, protective plates shall be added.


(3) The wire rope shall not be knotted or twisted, and shall be replaced when the broken wire exceeds 10% in one pitch.


(4) In the process of use, the steel wire ropes used should be checked frequently, and the steel wire ropes used should be scrapped immediately after reaching the scrap standard.


(5) Please pay attention to avoid knotting, flattening, arc injury and erosion of chemical media during use.


(6) During the operation, no one shall cross the winching wire rope in operation.It is forbidden to step on the wire rope in operation with hands and feet.


(7) During operation, the operator shall not leave the hoist after the object (object) is lifted, and the object or hanging cage shall be lowered to the ground during rest.





Product display

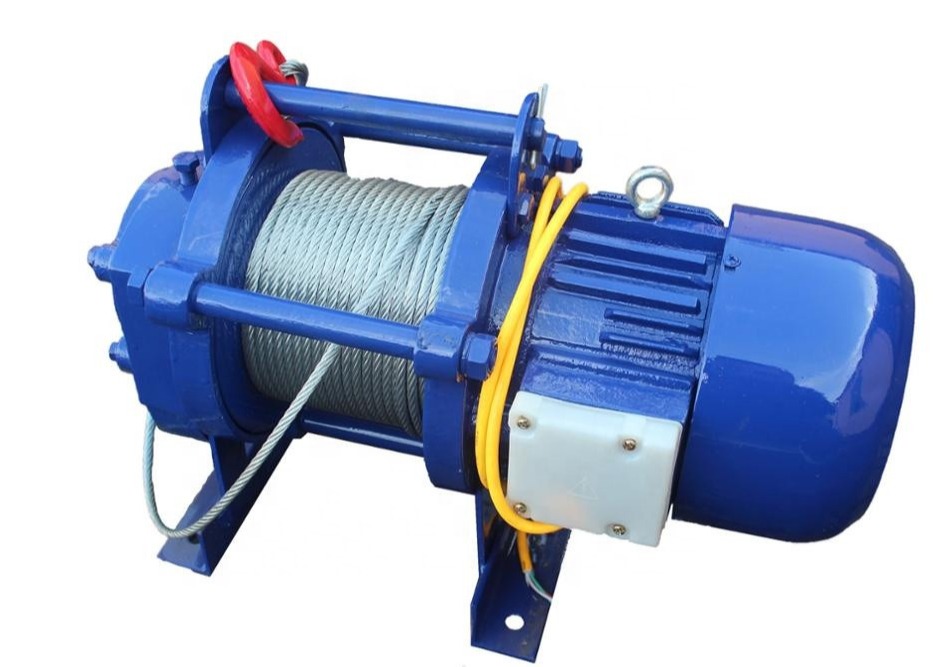

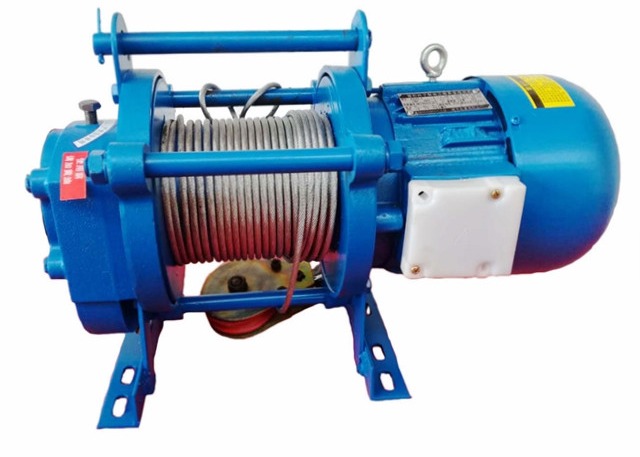

Vertical 2T Rope Length 100m Material Handling Electric Winch 0Vertical 2T Rope Length 100m Material Handling Electric Winch 1



Packaging and shipping



1. Use the wooden box made of inspection free plates in line with export requirements, and use plywood with a thickness of 9mm-15mm.



2. The wooden box made of solid wood can meet the requirements of export through fumigation and detoxification.



3 boxes board joint is tight, the box board combination is smooth without dislocation, the cloth nail is reasonable, the reinforcement belt is not less than 2, to meet the requirements of the export.

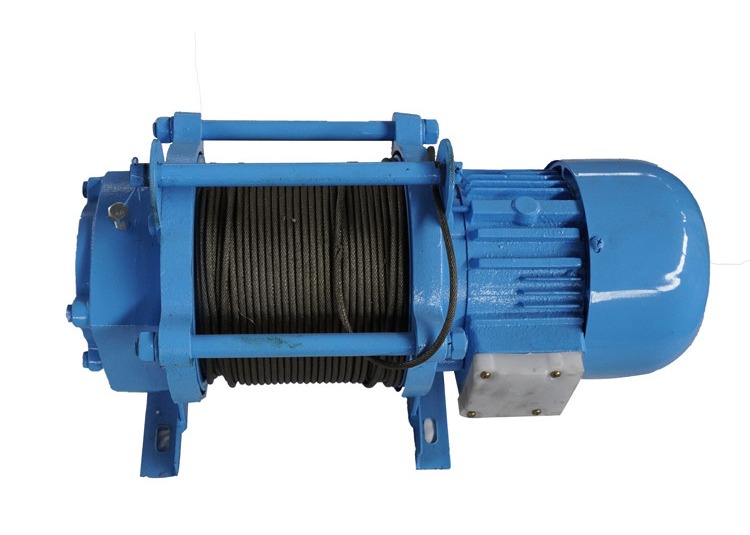

Vertical 2T Rope Length 100m Material Handling Electric Winch 2
