Construction Capstan Electric Winch Rope Drum Button Control Floor Mounted

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : High quality plywood crate Delivery Time : 15 days after receiving deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 100 set/per month
Place of Origin: China Brand Name: SILENCE
Certification: ISO CE Model Number: JK-D

Detail Information

Power Source: Electric Type: Planetary Gear
Color: Yellow Or Blue Electric: Schnider, SIMENS Or As Request
Mounted Type: Floor Mounted Warranty: 12 Months
Brake System: Mechanical Brake
High Light:

electric wire rope winch

,

marine electric winch

Product Description

JK-D model Rope drum button control construction capstan electric winch

Product description:



JK-D Capstan Electric Winch Windlass is a new type hoist which is a planetary drive with small teeth difference. It is also the ideal replacement of traditional hoist. It has the advantages of compact structure, stable running, convenient operation, easy maintenance, low noise level and long service life. JK-D series winch is widely used in building construction, piers, bridges, and metallurgical industries for lifting and installation.
This series winch is not only in line with national GB/T10055-1996 construction hoist safety rules but also in keeping with national industry standards JGJ88-92 Elevator Safety Technical Specifications.



Features:

1) Double Limit Switch.
2) Current Overload Protection Function.
3) High Quality Polyurethane Materials Buffer.
4) Emergency Stop System.
5) Weight Overload Protection Device.
6) Voltage Lower Protection Function.
7) Lifting Mechanism: Explosive-proof electrical hoist.



Advantage:

1) Top quality with competitive price.
2) Widely used in the double beam bridge crane and gantry crane.
3) Easy to install and high quality.
4) Compact structure and reasonable design.
5) Overload protection, shock protective, Explosion-proof performance.


Announcements:
1) Temperature -10℃~+40℃ ( when surrounding temperature is below 0, before start-up, lubricating oil should be heated up).
2) Humidity ≤85%.
3) Altitude below 1000 m, no fire and explosion accident and so on.
4) It uses 380V,50Hz, 3-phase alternating current power supply and ±5% tolerable voltage difference.
5) Working grades of winch in use are M4 or M5.
6) When increasing every grade working grade, its rated pull should correspondingly reduce 20%.



Technical parameters



Model Rated pull of rope(KN) Wire rope speed rating(m/min) Rope capacity (m) Minimum wire rope diameter(mm) Motor Total weight(kg) Size
KW length width height
JK0.75D 7.5 30 100 9.3 3 165 900 340 400
JK1.25D 12.5 46 120 11

7.5

315 1140 400 450
JK1.6D 16 28 160 12.5 7.5 350 1200 440 480
JK2.0D 20 36 190 13

13

510 1400 470 548

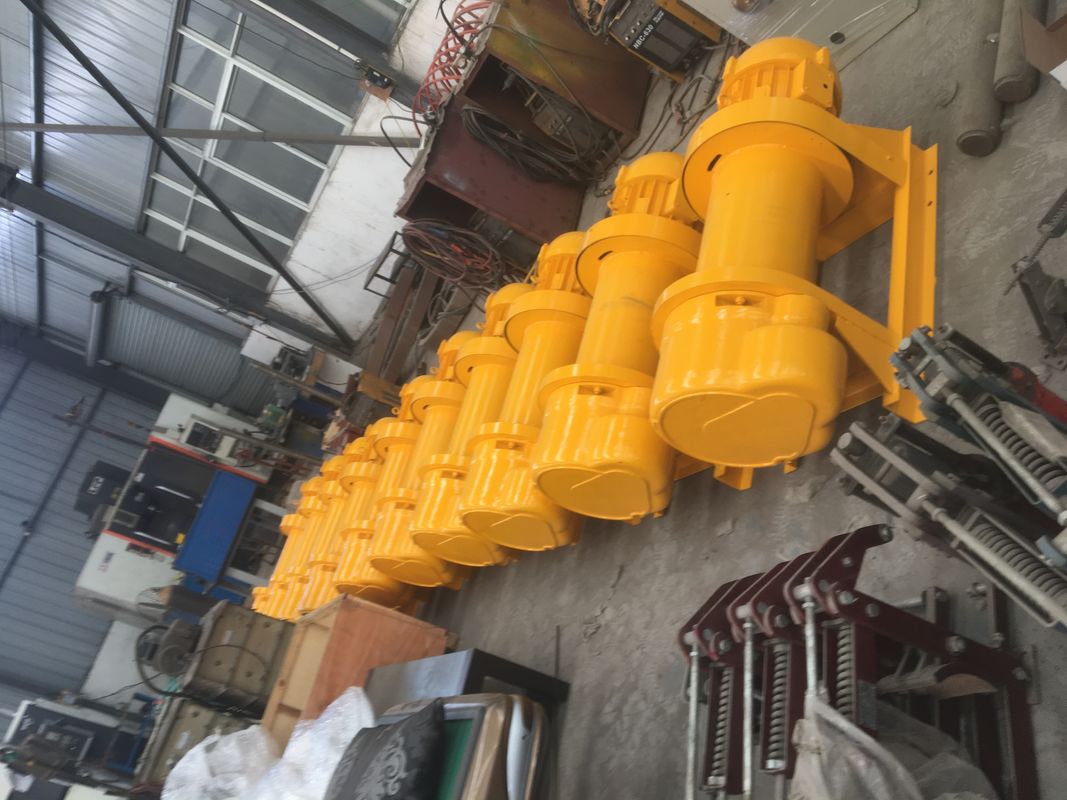

Product display



Construction Capstan Electric Winch Rope Drum Button Control Floor Mounted 0

Construction Capstan Electric Winch Rope Drum Button Control Floor Mounted 1

Packaging

Construction Capstan Electric Winch Rope Drum Button Control Floor Mounted 2
