Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability
Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability
Contact Now

Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : High quality plywood crate Delivery Time : 15 days after receiving deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 100 set/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: JM JK

Detail Information
Power Source: 3P 380V 50HZ Capacity: 1-20T
Rope Length: Customized Color: Blue Or Others
Warranty: 12 Moths Brake: Electromagnetic Brake
Application: Cranes, Slip Way, Ship, Dry Dock, Shore
High Light:

high speed electric winch

,

electric wire rope winch

Product Description

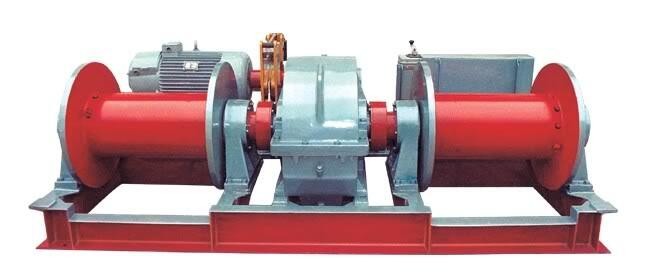

Heavy type single/double drum customized electric winch 10 ton 20 ton 30 ton

Product description



Electric Winch is drum winding wire rope or chain ascension or traction weight of small-sized lifting equipment.



Winch can be vertical, horizontal or inclined pulling heavy objects.Divided into manual winch and electric hoist winch.Now is given priority to with electric winch, Can be used alone, also can be made in lifting, such as road construction and mine machinery components, because of simple operation, large amount of rope and displacement easily and widely used.Mainly used in construction, water conservancy, forestry, mining, port, etc material lift or drag.


Product details

1. Pure copper motor: pure copper motor has the characteristics of magnetic sensitivity, high melting point and low loss, and large cooling port.

2. High-quality reel: the reel is made of seamless steel tube, strong and durable without deformation.

3. Channel steel base: thicken the channel steel base to enhance the stability of the machine.

4. Refined steel enclosure: the motor enclosure is made of high-quality refined steel, which protects the internal parts from being assembled tightly.

Technical parameters

Model Rated pull of rope(KN) Wire rope speed rating(m/min) Minimum wire rope diameter(mm) Motor Total weight(kg) Size
type power length width height
JM1 10 15 9.3 YZR 112M-6 2.2 270 740 690 490
JM2 20 16 13

YZR

160M-6

 7.5 550 940 900 570
JM3 30 9.5 15.5 YZR 160M-6 7.5 1100 1430 1160 910
JM5 50 9.5 21.5

YZR

160L-6

 11 1800 1620 1260 948
JM10 100 8 30 YZR 200L-6 22 3800 2280 1500 950
JM16 160 10 37

YZR

250M-8

 37 8800 3750 2400 1850
JM20 200 10 43 YZR 280S-8 45 9900 3950 2560 1950
JM25 250 9 48 YZR 280M-8 55 13500 4350 2800 2030
JM32 320 9 52 YZR 315S-8 75 20000 4500 2850 2100




Manufacturing shop

Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability 0
Professional equipment production workshop, product quality assurance, production process orderly division of labor.

 Product display
Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability 1

Packaging

Customized Heavy Duty Electric Winch 10T 20T 30T Single / Double Drum Good Stability 2
