55 Ton Double Girder European Overhead Crane Remote Control

Product Description

55 Ton Double Girder European Overhead Crane Remote Control

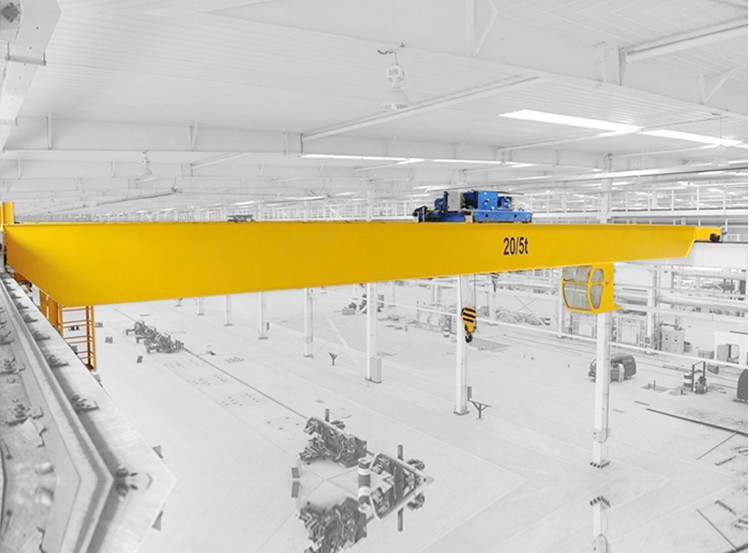

Description of Double Girder European Overhead Crane



Double girder overhead cranes give a better height of lift in a given headroom as the hook travels between the beams. They are available in higher capacities than single girder and for heavy duty applications they can be supplied with open winch hoists.



Technical parameter of Double Girder European Overhead Crane







Capacity (Ton)	10	20	30	50	80	100
Lifting Height (m)	9-30	9-30	9-30	9-30	9-30	9-30
Lifting Speed (m/min)	5/0.83	5/0.83	4/0.67	4/0.67	2/0.33	0-1.9/0-2.8
Trolley Speed (m/min)	0-20	0-20	0-20	0-20	0-20	0-20
Bridge Speed (m/min)	0-32	0-32	0-32	0-32	0-32	0-32

Features of Double Girder European Overhead Crane



In general



European optimization design, light dead weight, small wheel load, and short size.



Good driving capacity, double lifting speed, frequency control of trolley and crane



Smooth and stable traveling



A variety of patterns meet customers'needs



Mechanical parts



Single main girder, welding box structure, camber meeting national standard



Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52).



Main welds joint adopts union melt welding, nondestructive inspection.



After welding, main girder is through shot blasting treatment, gets Sa2.5 class, and eliminate welding stress.



Main girder and end girder adopts bolted connection to ensure strength and accuracy of the whole set.



The trolley and crane adopt three-in-one driving mechanism, frequency stepless speed regulating, hard-tooth surface, disc brake.



Crane driving IP55, F class insulation, contact continuity reaches 40% ED.



Epoxy zin-rich paint, a long service life, beautiful outlook and lustre.



Crane buffer block, anti-derail end plate



Trolley



Compact constructure, small size, light weight.



Square steel for traveling rail.



Consists of three-in-one reducer, trolley frame and electric hoist.



Three-in-one structure for trolley traveling



Electrical parts



Safe slide wire provides power whose conductivity is high and voltage drop is small, and current collector slide speed is swift.



Lifting mechanism, trolley and crane can be controlled independently, and work synchronously or individually.



Reasonable layout, simple maintenance and insulation class IP55 for electric control box



Flat cable, galvanized track and cable pulley for trolley traveling power supply, smooth traveling



Electric contactless module speed regulation controlling



Smooth traveling, lifting, and pushing-on
