15T Workshop Euro Design Double Girder Overhead Crane A6 Working Duty

Minimum Order Quantity : 1 set Price : USD4000-USD15000
Packaging Details : High quality standard exported plywood crate Delivery Time : 15-20 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: LHO

Detail Information

Warranty: 24 Months Span: 7.5-31.5m
Feature: Double Girder Bridge Crane Max. Lifting Height: 30m
Capacity: 15 Ton Application: Warehouse And So On,plants
Control Method: Cabin Control Power Supply: 3 Phase AC 380V 50HZ
High Light:

15T Euro Double Girder Overhead Crane

,

A6 Euro Double Girder Overhead Crane

,

15T A6 double girder bridge crane

Product Description

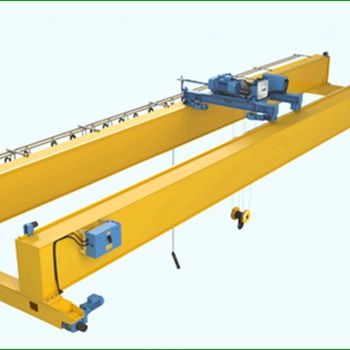

15T Workshop Usage Euro Design Double Girder Overhead Crane A6 Working Duty



Description of Euro Double girder overhead crane


European Type Double Girder Overhead Crane is a type of light duty crane that is designed according to European standard.Compared with the common type light duty crane, it has the features of light self weight, small wheel pressure, delicate manufacture ,longer service time etc. hoisting mechanism that is installed on the double girder overhead crane and work.Electric hoist can lift cargos, the trolley can travel on the rails of double girder overhead crane.



Technical parameter of Euro Double girder overhead crane



Lifting capacity ton 5-350
Lifting height m 1-20
Span m 10.5-31.5
Working environment temperture °C -25~40
Speed Hoisting Main m/min 0.84-9.5
Aux. 5.22-12.6
crab 5.8-38.4
trolley 17.7-78
Working system   A5-A6
Power source   three-Phase A C 50HZ 380V



Main feature of single girder overhead crane



1. Double welding box girder, DIN/FEM standard deflection.


2. Material Q235B or Q345B. (Similar to the international steel Fe360 or Fe520)


3. Whole length CNC cutting for complete web plate, high deflection accuracy.


4. High quality automatic welding and NDT inspection.


5. Shot-blasting SA2.5 for complete girder after welding, stress release.


6. Epoxy zinc rich high quality painting, 2X2 with 140μ M.


7.10.9 class High tension bolts mounting between girder and legs, life time safe connection

.
8. Double flanged or flat wheels, anti-friction bearings, cellular buffers, derailment protectors.


9. Full-length service platform along the crane bridge is supplied, where it is equipped with protective hand railing and toe strips.



Safe features of Euro Double girder overhead crane



1. Weight overload protection device: If the material is over the capacity, the crane will give a sharp warning for protection itself.


2. Emergency brake: If the operation staff encounters some emergency situation, we could start the emergency brake system to protection the related treasure.


3. Control Method: Ground control and cab control to avoid any injure to the operation staff.


4. Main lifting motor: With thermal protection and currency protection.


5. Hooks with latch.


6. Top quality long time bearing polyurethane materials buffer.


7. Protective earthing.


8. Crane traveling limit switches.

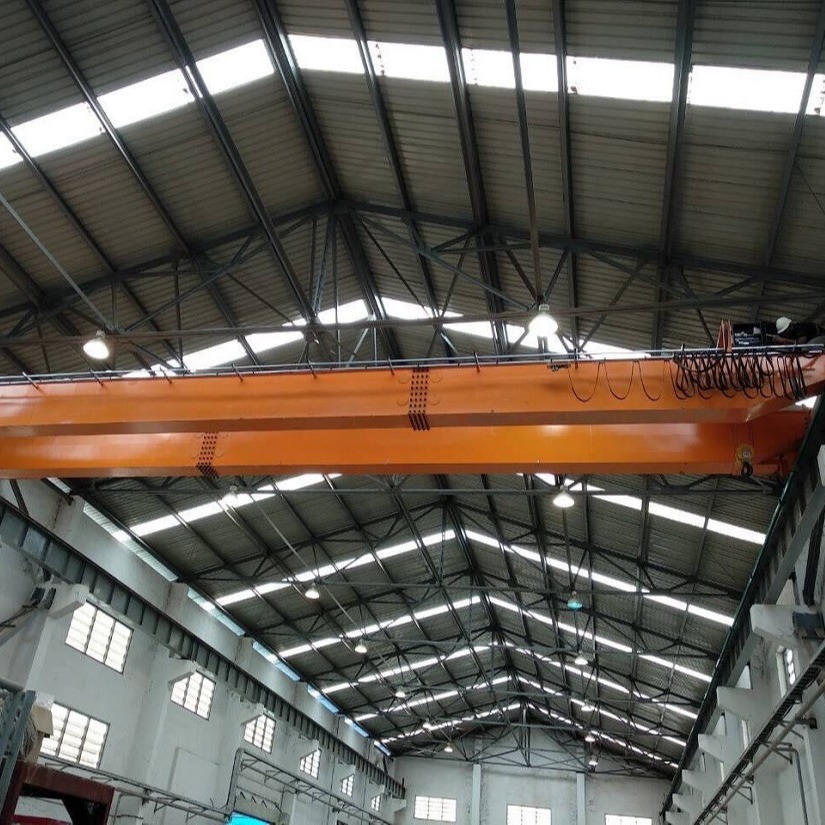

15T Workshop Euro Design Double Girder Overhead Crane A6 Working Duty 0

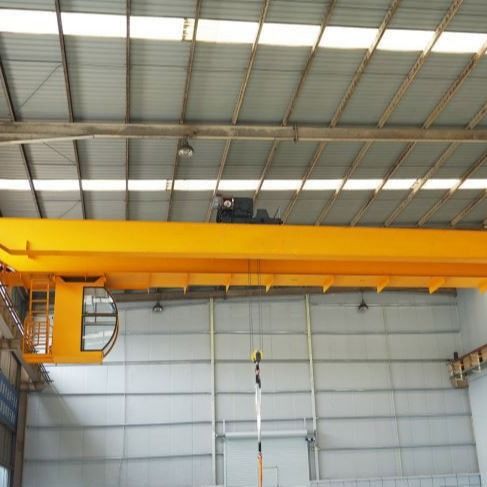

15T Workshop Euro Design Double Girder Overhead Crane A6 Working Duty 1

Looking forward to receive your enquiry with the below details information:


1. Lifting capacity


2. Span ( rail centre to centre )


3. The required lifting height ( from hook to the ground )


4. Crane travelling length


5. What will be lifted by the crane


6. The crane and hoist movement speed (m/min)


7. The rail length and the height.


8. Single speed or double speed for lifting and travelling?


9. Driver cabine control or pendant control?


10. How many hours work per day?


11. Power source: 380V, 50Hz, 3phase or others?



Package and delivery

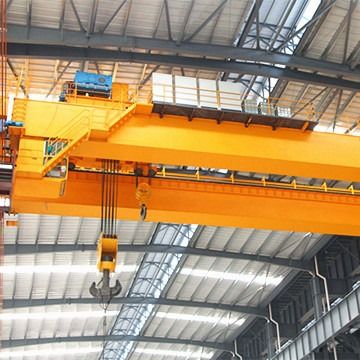

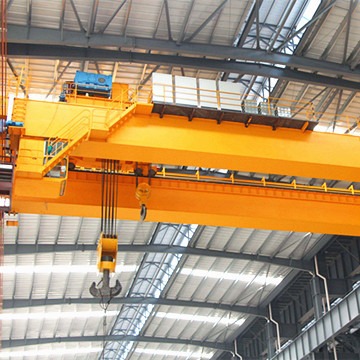

15T Workshop Euro Design Double Girder Overhead Crane A6 Working Duty 2
