25 Ton 10m Span European Type EOT Overhead Crane Double Girder High Efficient

Minimum Order Quantity : 1 set Price : USD4000-USD15000
Packaging Details : High quality standard exported plywood crate Delivery Time : 15-20 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: LHO

Detail Information

Span: 10m Capacity: 25ton
Type: Traveling,double Girder Overhead Crane Power Supply: 380V 50Hz Or On Request
After-sales Service Provided: Video Technical Support Crane Feature: Easy Operated Girder Bridge Crane
High Light:

25 Ton European EOT Overhead Crane

,

10m Span European EOT Overhead Crane

,

10m Span double girder eot crane

Product Description

High Efficient European Type Overhead Crane 25ton 10m Span Double girder



Description of Euro Double girder overhead crane


European double beam series bridge crane can effectively make use of factory space, and make the headroom lowest and the limit distance between hook and two sides walls minimum. European design concept reduces the weight of the whole crane, and can greatly save the cost of the plant.


Adopting advanced double speed or frequency double speed control. Make the start, acceleration and deceleration of crane more stable, and furthest reduce the loaded goods swing. Make the loading positioning faster and more accurate.


Ground control adopts suspension type controller which is fit with ergonomic design. Operator can control in any convenient location within the span range , which play an important role. Wireless remote control is the safest, most efficient operation and control mode.



Technical parameter of Euro Double girder overhead crane





Capacity (T) 5 10 16 20 32 50
Span (M) 10.5---31.5
Lifting height(M) 6---12M
Work Duty M5
Lifting Speed(m/min) 0.8/5 0.8/5 0.66/4 0.53/3.4 0.8/3.3 0.53/3.2
Hoist Speed(m/min) 2---20
Crane Speed(m/min) 3---30
Working Temperature (℃) 15



Parts characteristics of Euro Double girder overhead crane



The characteristics of main frame of tail beam



1.The main body of tail beam adopts standard rectangular tube and numerical control automatic process.



2.Small space size stable structural properties, standardized connection with main beam, high interchangeability.



The characteristics of wheels



1.Its material selects to use high strength nodular cast iron, thus has good wearability and shock absorption capability.



2.Mondularized design, compact structure, high degree of standardization, easy to assembly parts.



3.DIN standard internal spline connection, automatic positioning, easy to install and dismantle.





Lightweight and Modular Design of Euro Double girder overhead crane



1. Overall height is 20%~25% lower than traditional cranes;



2. Self-weight is lighter by 20%~30%;



3. Max wheel load reduces 15%~20%;



4. Smaller limiting size increases working scope;



5. Light structure reduces the cost of workshops;



6. Every component designed to be a standard series and interchangeable;



7. Modularization design is easy for transporting;



8. Standard modular design makes good quality and fast delivery.





Intelligent of Euro Double girder overhead crane



1. Electric anti-sway tech realize accurate positioning;



2. Advanced electric control tech turn it into a crane robot with semi-automatic control and full-automatic control.

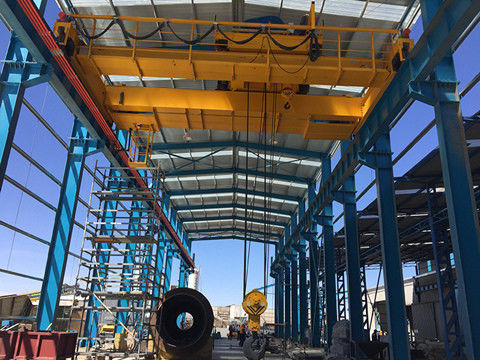

25 Ton 10m Span European Type EOT Overhead Crane Double Girder High Efficient 0

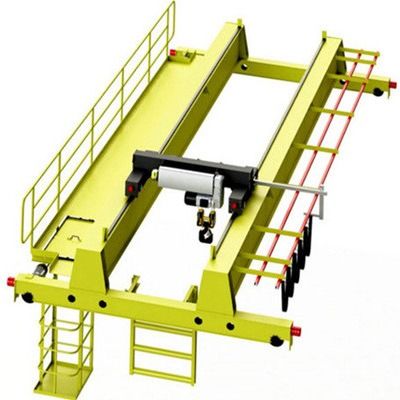

25 Ton 10m Span European Type EOT Overhead Crane Double Girder High Efficient 1





Package and delivery

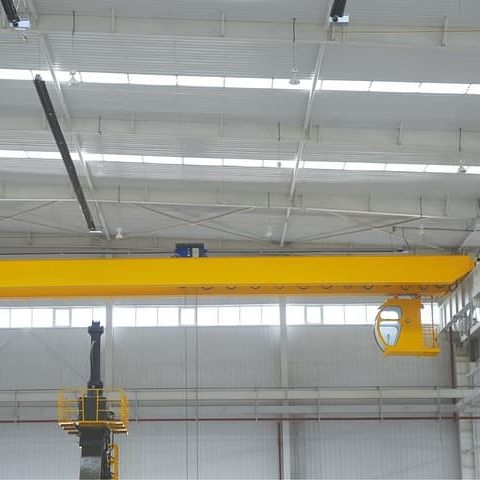

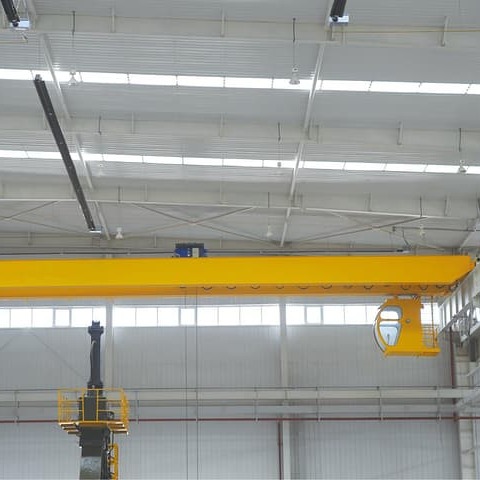

25 Ton 10m Span European Type EOT Overhead Crane Double Girder High Efficient 2
