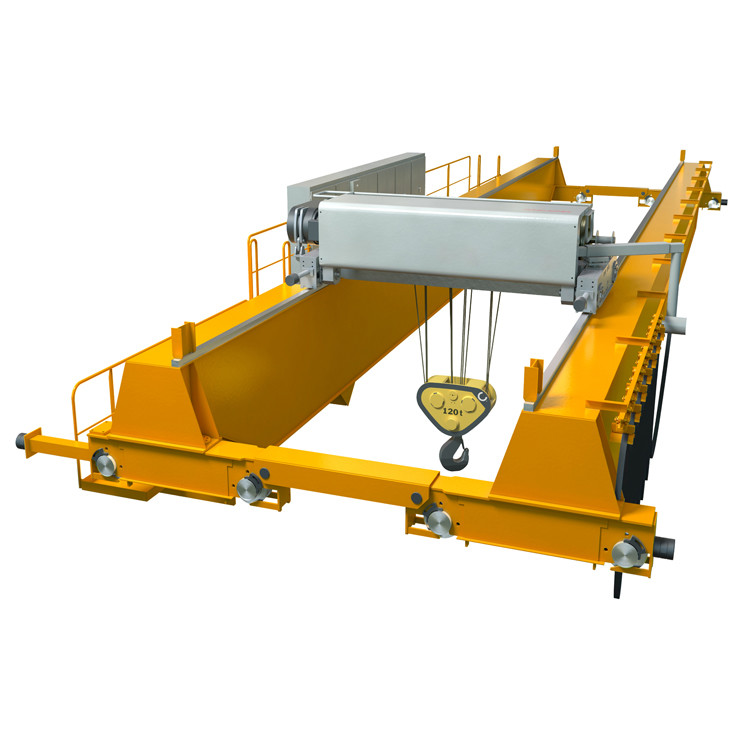

Span 25m Double Girder Workshop Overhead Crane A5-A7 Working Duty

Minimum Order Quantity : 1 set Price : USD80000-150000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 30 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: QD LH

Detail Information

Product Name: Double Girder Workshop Overhead Crane Working Duty: A5-A7
Span: Span 25m Capacity: 50 Ton
Application: Stockyard Power Source: 3 Phase 380V 50hz
High Light:

Span 25m Workshop Overhead Crane

,

A5 Workshop Overhead Crane

,

a5 workshop bridge crane

Product Description

Span 25m Double Girder Workshop Overhead Crane A5-A7 Working Duty



Double Girder Workshop Overhead Crane  offer special load capacity for a low deadweight. Strong and agile, its lifting capacity can up to 120 tons, it is particularly good tool for general manufacturing, workshops, warehouse and other assembly lines. The load hook can be raised between the two crane girders(beam), which permit huge lifting heights can be make it.



Technical parameters of Double Girder Workshop Overhead Crane



Type Double girder overhead crane
Lifting capacity 5 ton –120ton
Lifting height 5m – 35m
Span 5m-31.5m
Power supply 380V 50Hz 3Phase or on request
Working class A5-A7
Speed Variable Speed (standard)
Eletric devices Crane traveling limit switch
Weight overload protection device
Lifting height limit device
Voltage lower protection function
Phase sequence protection function, etc.



The double girder overhead crane is available in various configurations and feature the versatility required for additional requirements.



For example, higher crane travel speeds, maintenance walkways, trolleys with service platforms are all features which can easily be implemented.



Advantages of Double Girder overhead crane



1). First class quality with competitive price


2). Compact design, optimal use of the size of work areas


3). Reasonable structure, favorable performance


4). Control the load easily and position the load exactly


5). Smooth starting and stopping


6). Superior safety and reliability


8). Minimum& Easy maintenance, excellent exchangeability for parts and components


9). Saves electricity specifications


10). "One-Stop Shop" for your crane and hoist needs



Features of Double Girder overhead crane
Span 25m Double Girder Workshop Overhead Crane A5-A7 Working Duty 0

● Reasonable structure and strong rigidit.Three in one design(reducer,motor,brake) save space and Increase effective lifting height.


● Easy for Installation and maintenance.


● Weight overload protection device.


● Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook.


● Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Span 25m Double Girder Workshop Overhead Crane A5-A7 Working Duty 1

Safety features of Double Girder overhead crane



1. Overload protection: If the material or electric current is over the capacity, the crane will give a sharp warning for protecting itself.


2. Emergency stop system: If the operation staff encounters some emergency situation, we could start the emergency stop system to protect the operator and the related treasure.


3. Rubber buffers: Top quality long time bearing polyurethane materials buffer.



The packing and shipping:

Span 25m Double Girder Workshop Overhead Crane A5-A7 Working Duty 2

Span 25m Double Girder Workshop Overhead Crane A5-A7 Working Duty 3
