Wireless Top Running 100/20 Ton Double Girder Overhead Crane

Product Description

Double Beam Top Running Overhead Crane 100/20 Ton Wireless Remote Control

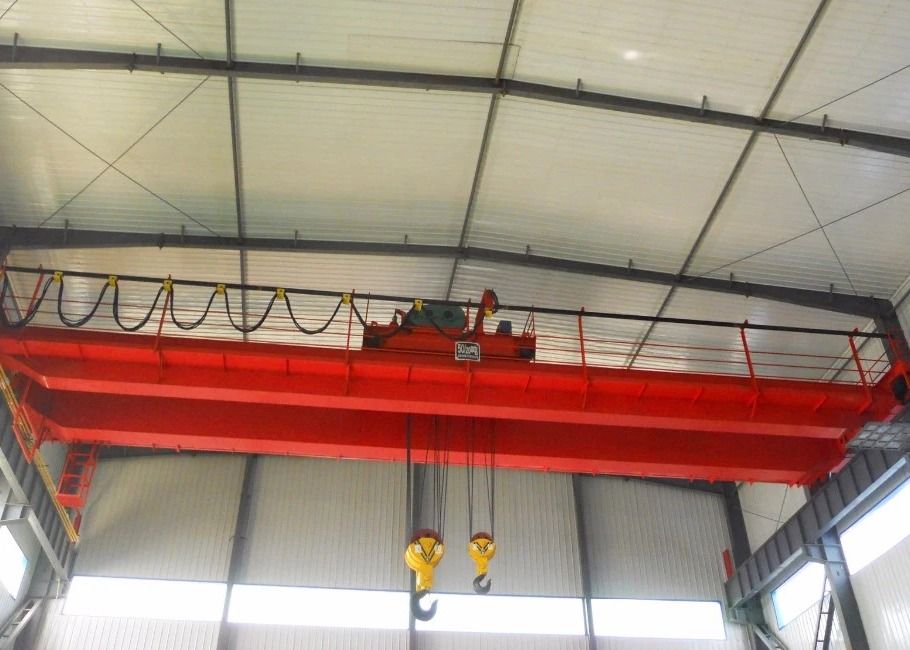

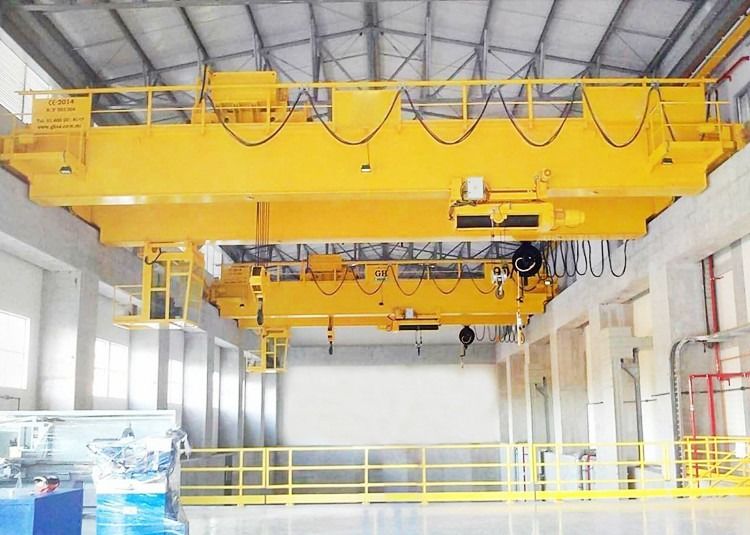

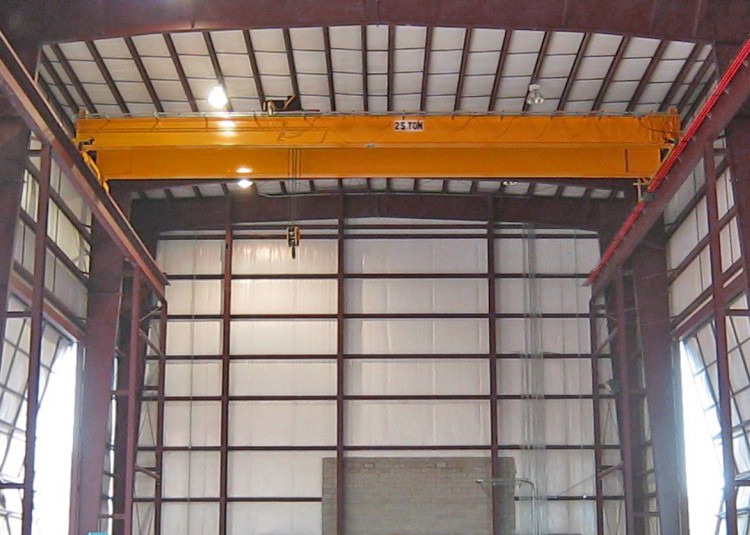

The product description of double girder overhead crane



The double girder overhead crane is a type of lifting equipment which is used in workshop, warehouse and stokcs and so on to lift the materials.



The limiting size is the lowest between the top of hook and the track of trolley, that is to say, it reduces 20%-30% compared with traditional products.



It has hard-tooth reducer, imported wire-rope, and trinity drive. It is equipped with such protecting devices as alarm device to overloading, obliquely hanging second protecting equipment preventing hook clashing the top, protecting the current lacking of any phrase etc.



The operating board (handle) adopts 12v safe voltage to fulfill multi-function of protection to electric hoist and winch trolley.



The electric controlling can be used more than 2 million times when the voltage is 380v+5~-10%.



Technical parameters of double girder overhead crane



Heavy loading, wide span, the whole crane stable and variety;



The machine with novel structure, attractive appearance, advanced technology;



Flexible operation, safe and reliable;



The spare parts are standardization, generalization and serialization.



Capacity(t)	Lifting Height(m)		Speed (m/min)				Total Power (kw)	Recomend Rail (kg/m)
Main hook	Aux hook	Main hook	Main Hook	Aux. hook	Trolley	Crane
16/3.2	12	15	2.5~9	9	20~38	30~70	19.4~49.5	52.8
20/5							27.5~62.5
25/5							28.1~72.9
32/5	15	17				30~80	29.7~110	63.69
40/5			2~9			30~70	30.5~111.5
50/10			2~7	9			46.4~130
63/10	21	23	1.5~7	9			46.4~157
75/20	26	28	1.7~7	7	18~30		81~184	88.96

Features of double girder overhead crane

1). Long Life Span: 30-50years;



2). Easy for Installation and maintenance;



3). Reasonable structure and strong rigidity;



4). The speed can be frequency inverter speed control;



5). Control method is cabin control or remote control;



6). Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;



7). Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.







Details of double girder overhead crane



Electric System:



Module control speed, micro-speed and double speed;



Traveling and lifting smoothly;



The power for trolley moving adopts flat cable, sliding smoothly;



Control box layout is reasonable, easy to repair;



Protection class IP55;



Optional main power source ;



All external cable line number with mark;



Safety smooth touch line, high conductivity, small pressure drop;



Light weight, installation convenience;



Set electric taxi speed is high, ensure continuing power supply;



Optional speed control module, and can realize the micro speed and double speed.



Protection Devices:



Preventing hook clashing the top, set shields and barriers;



Circuit self-test protection device,Running the travel limit;



Protecting the current lacking of any phase;

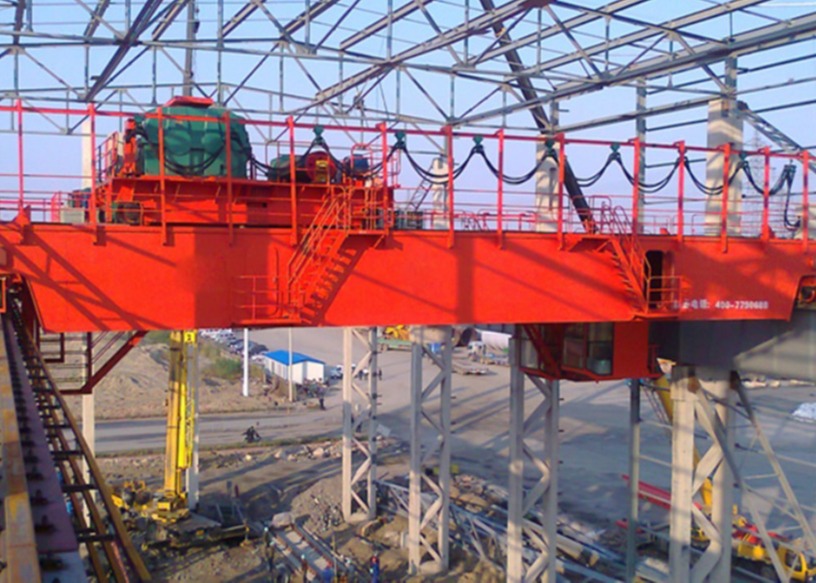

Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices;



Anti-collision, sound and light alarm devices;



Equipped with rail clamp;



Lifting weight limitation, height limitating, rail clamping device;



Speeding protection, zero pressure protection, the lightning protection.



Operation Device:



Capsule driver room, eye shot is open,Linkage machine control, easy to operate;



Double block button or lever type lever,Smooth operation and accurate;



Remote control, no need of professional driver;



Following type or slide-independent, non-following suspension;



Protection class IP65;



Life of 500000 times; remote control, very easy;



With strong waterproof, fight broke performance.
