35T Double Girder Workshop Overhead Crane A5 Working Duty
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||USD150000-500000/set|
|Packaging Details :||Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth||Delivery Time :||30 days|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||10 sets|
|Place of Origin:||China||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||QD|
|Feature:||Double Beam Bridge Crane||Lifting Mechanism:||Eliectric Hoist Or Electric Trolley|
|Power Source:||3Phase 380V 50Hz||Application:||Marble Workshop|
Cabin Warehouse Overhead Crane,
150T Warehouse Overhead Crane,
150T warehouse crane system
QD Type Warehouse Overhead Crane Double Beam 150T Cabin Control Lifting Equipment
The product description of double girder overhead crane
QD type Double Girder Overhead Crane is widely used in plants warehouses, material stocks to lift goods.
It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

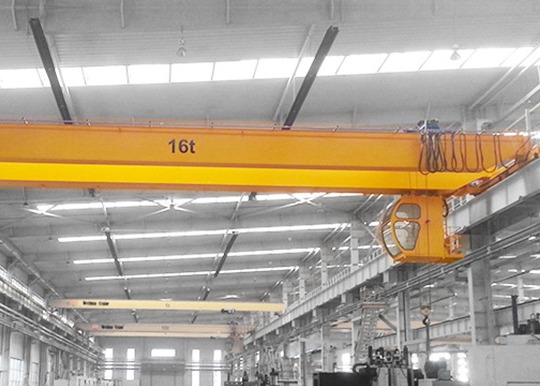

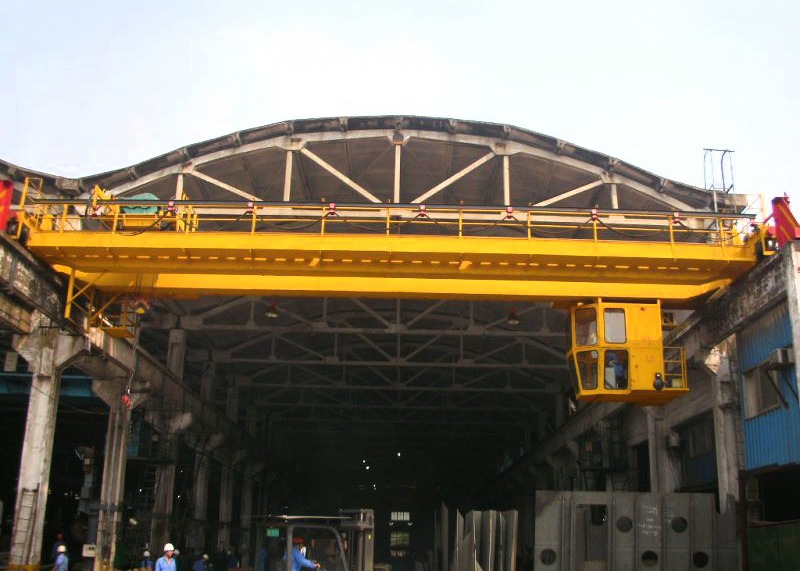

QD type Double Girder Overhead Crane has two operational methods, ground or operational room which has open model and closed model and can be installed on left or right side according to the practical situation.
And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users' Choice users' different conditions.
Technical parameters of double girder overhead crane
|QD double beam overhead crane|
|Lifting Capacity T||5||10||16/3.2||20||25/5||32/5||50/10||400/80|
|Lifting height M||Main Hook||16||16||16||12||12/11.0||16||12||22|
|Speed M/min||hoist||Main hook||A5||12.5||8.5||7.9||7.2||7.3||7.8||5.9||2.92|
|Bridge travelling||A5||89.8 /92.3||89.8-91.9||84.7-87.6||84.7/ 87.6||85.5/88||74.2-87.6||74.6||25.9|
|A6||116.2/ 117.4||112.5-116.8||112.5||112.5/ 101.4||112/ 101.4||86.8-101.4||87.3|
|Max Wheel Load KN||A5||74-125||102-160||141-205||163-231||185-255||237-327||333-450||7500|
|Power Source||According to your demand|
Features of double girder overhead crane
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
Details of double girder overhead crane

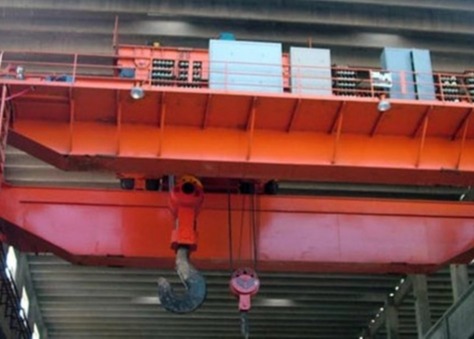

Structure: Mainly composed of bridge frame, crane traveling mechanism, trolley with lifting and moving device and electric parts.
The rail is paved for the trolley traveling on the main girder. 2020 most popular QD overhead crane with safety protection device.
Application: Widely applied to loading and transporting the loads over 5T in the fixed crossing space and also can work with various special-purpose cranes in special operations.
Environment: It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
Design: All the standers required for the crane is according to China standers and meet current ISO 9001:2000, ISO 14001:2004 and OHSAS 18001 specifications.
All cranes can be engineered to meet other local codes and regulations.
1. Primer and finishing paint with shot blasting technology.
2. Color:according to your requirements, normally is yellow.
3. Average thickness: about 100 microns
1. With technology support, such as shot blasting before painting, one-time-forming in production of single girder crane, and medium-frequency quenching of h, we have been in this field with high reputation for 8 years.
2. Top quality for many years with competitive prices.
3. Compact design, reasonable structure, durable performance and high efficiency.
The packing and shipping:
