Luffing 270° Pillar Mounted Jib Crane Span 4.5m~6m
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||USD 3000-15000/set|
|Packaging Details :||Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth.||Delivery Time :||15 days|
|Payment Terms :||T/T, L/C||Supply Ability :||1 sets|
|Place of Origin:||China||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||BZ、BZD|
|Protection Grade:||IP54||Insulation Class:||F|
|Bearing:||LYC Or ZYZ Brand||Cross Traveling Speed:||11m/min|
|Power Supply:||3 Phase 380V 50hz||Lifting Mechanism:||Electric Chain Hoist|
1 Ton Pillar Mounted Jib Crane,
ISO Pillar Mounted Jib Crane,
11m/min pillar jib crane
1 Ton Pillar Mounted Jib Crane 50% T/T Deposit In Advance ISO Certificate Flexible Operation

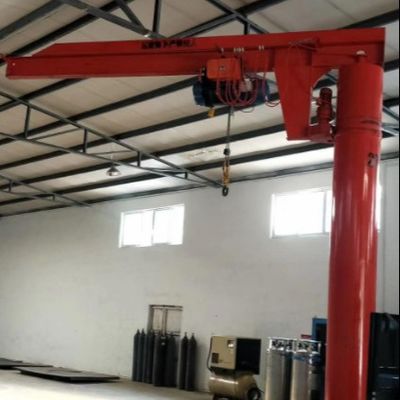

Product presentation of Pillar Mounted Jib Crane
The fixed column type cantilever crane equipment works when the compressive strength is light.The lifting equipment consists of a vertical rod, a rotary arm driving equipment and an electric lifting unit.
The lower part of the straight rod is fixed to the concrete by bolts and nuts.Cycloid pin wheel reducer is used to drive hanging wall rotation, electric hoist in the hanging wall between the upper and the lower part of the parallel line effect, and the crane is used to lift objects.The cantilever of hoisting equipment is hollow channel steel structure, light weight, large span, heavy lifting and lasting economic development.
The fixed column cantilever crane has the advantages of reasonable arrangement, high freshness, high efficiency, simple and easy to operate, sensitive rolling, and large studio space.It is a kind of environmental protection, energy saving and efficient weapon equipment used to improve raw materials.
Can be widely used in chemical plants, production workshop production line, left and right activity and equipment line and CNC lathe stacking, port and other places of the object hoisting, fixed column device.Pole equipment, rotary equipment, fixed column type cantilever crane cantilever equipment and chain electric hoist.
Cantilever rotation, which can be relied on according to customer requirements, rotation viewpoint is customized.The rotation part is divided into manual rotation and electric rotation.The chain electric hoist is mounted on the cantilever guide for improvement.
The chain electric hoist has a high utilization rate in the fixed column cantilever hoist, especially in the short-term application repeatedly, in the practical operation and protection, the chain electric hoist in the load-bearing beam lifting and operation, the cantilever beam can be rotated on the rotary equipment through the reducer.
Technical parameters of Pillar Mounted Jib Crane
|Capacity(KG)||500 KG||1000 KG||2000 KG||3000 KG||5000 KG|
|Beam Material||H Beam & KBK Beam|
|Travelling Type||Electrical & Manual||Electrical||Electrical||Electrical|
|Revolving Type||Electrical & Manual||Electrical||Electrical||Electrical|
|Revolving radius||1m - 7m||1m - 7m||1m - 7m||1m - 7m||1m - 7m|
|Lifting Height||2m - 10m||2m - 10m||2m - 10m||2m - 10m||2m - 10m|
|Total Height||2m - 10m||2m - 10m||2m - 10m||2m - 10m||2m - 10m|
|Revolving Angle||180° & 270°& 360°|
Extend the service cycle of the jib crane:
1. In the installation should pay attention to, even in the case of a relatively short construction period, should also be from the perspective of human health, not because of a short construction period on jailbreaking, so that there will be some hidden dangers in use, and even harm to the health of the installation personnel.
2. When hanging objects, care should be taken to carry them within the allowable carrying range so that they will not be overweight or damage the equipment.Ropes that hang heavy objects should also be rigorously tested so that they do not fall off or injure people while running.
3. The cantilever crane should be checked and repaired in time.In the process of use, attention should be paid to timely inspection, check the hook, wire rope, electric hoist and other components, so that it can be more secure when used.
