12T High Safety Pillar Jib Crane Lifting Speed 6.6m/Min Arm Length 4m

Minimum Order Quantity : 1 set Price : USD 3000-15000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth. Delivery Time : 15 days
Payment Terms : T/T, L/C Supply Ability : 1 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: BZ、BZD

Detail Information

Span: Max. Length 5.01~7.19M Max. Lifting Height: 5.77~8.05M
Color: Clients' Requirments Power Source: 3 Phase 380V 50hz
Slewing Angle: 180,270,360,any Angle Lifting Mechanism: Electric Hoist
High Light:

12T Pillar Jib Crane


6.6m/Min Pillar Jib Crane


4m cantilever jib crane

Product Description

12T High Safety Pillar Mounted Jib Crane Lifting Speed 6.6m/Min Arm Length 4m

Product presentation of Pillar Mounted Jib Crane

KBK column rotary boom crane is a new generation of light lifting equipment to adapt to modern production, with the high reliability of JPK type chain electric hoist is especially suitable for short distance, frequent use, intensive lifting operations, with high efficiency, energy saving, trouble saving, small footprint, easy operation and maintenance and other characteristics.Can be widely used in factories, mines, workshop production lines, assembly lines and machine tools up and down and warehouse, wharf and other occasions of heavy lifting.Column type rotary boom crane, mainly includes: upper column, lower column, main beam, main beam rod, lifting mechanism (chain electric hoist), rotary mechanism, electrical system, ladder and maintenance platform composition.The mobile cantilever crane has the characteristics of flexibility, wide adaptability and so on. It is a necessary separate emergency hoisting equipment on the efficient automatic production line. With it, it can ensure the unimpeded production line.

Technical parameters of Pillar Mounted Jib Crane


Type   BZ0.25 BZ0.5 BZ1 BZ2 BZ3 BZ5 BZ8 BZ10
Lift Capacity (t) According to your demand
Max. Lift Height(m) According to your d emand
Slew Angle(0)   360 360 360 360 360 360 360 360
Lift Speed (m/min) Normal 4;10;8 5;10;8 8 8 8 8 8 8
Slow 1;2.5;0.8 1.25;2.5 0.8 0.8 0.8 0.8 0.8 0.8
Level Travel Speed(m/min)   20 20 20 20 20 20 20 20
Slewing Speed(r/min)   0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6
Electric hoist   wire rope electric hoist or chain electric hoist
Power supply   3 phase 380v/50hz, 440v/60hz,240v/60hz,415v/60hz,etc
Control mode   Pendent pushbutton control or remote control

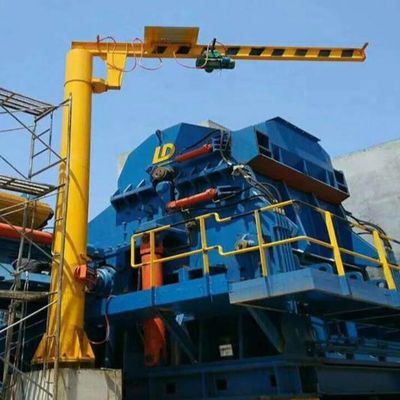

12T High Safety Pillar Jib Crane Lifting Speed 6.6m/Min Arm Length 4m 012T High Safety Pillar Jib Crane Lifting Speed 6.6m/Min Arm Length 4m 1


Installation of fixed column rotary boom crane

1. Column installation
Put the column on the flat foundation, align the prefabricated screws with the holes on the crane site, screw the nuts on, and then adjust the vertical column, tighten the nuts and lock nuts after adjustment.
2. Beam installation
Before installation, the electric hoist is installed on the beam and fixed, and then the roller cover at the end of the beam support rod is installed, and then the crane is carried out.
(1)0.5~2T beam installation
Explosion-proof slewing crane installation to make the column type rotary spindle on the pillar at the top of the bearing hole, roller by a slow down in the pillar of the annular orbit, and then from the installation hole fixed nut screw on the post, and the top wire top tight, aim at key on the power supply collector ring, screw the nut after adjustment of carbon brush holder position, until it is right.
(2)3~5T beam installation
Installation time, make the explosion-proof pillar jib crane column alignment arm end round hole, the roller on the pillar of the slow down in circular orbit, after each part is in place and tighten the retaining bolt, then the power supply collector ring is installed at the top and file on the end of the rope steered beam rotates, rotation should be flexible rotation, no resistance and anomaly
(3)3~5T rotary drive mechanism installation
The output shaft of cycloid reducer with motor has been installed. Just install the reducer in the stop mouth on the turntable, make the driving gear meshing with the big gear ring on the column, and fix it on the blue disk with screws.

12T High Safety Pillar Jib Crane Lifting Speed 6.6m/Min Arm Length 4m 2

12T High Safety Pillar Jib Crane Lifting Speed 6.6m/Min Arm Length 4m 3


1. Don't drag heavy things.
2. Overload lifting is prohibited.
3. When working, it is forbidden to stand under the lifting arm.
4. When operating, do not press the speed button and the reverse turn button of the same motor at the same time.For convenient transportation, the machine adopts disassembly packaging.Our company is responsible for the installation, the user can also install according to the introduction method of our company's product manual.Another kind of light crane produced by our company: mobile cantilever crane is more flexible, adaptable and so on. It is a separate emergency hoisting equipment on the automatic production line, which can ensure the smooth production line.

12T High Safety Pillar Jib Crane Lifting Speed 6.6m/Min Arm Length 4m 4
