Luffing 270° Pillar Mounted Jib Crane Span 4.5m~6m
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||USD 3000-15000/set|
|Packaging Details :||Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth.||Delivery Time :||15 days|
|Payment Terms :||T/T, L/C||Supply Ability :||1 sets|
|Place of Origin:||China||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||BZ、BZD|
|Capacity:||8 Ton||Rated Loading Capacity:||1-10T|
|Rated Lifting Moment:||125kg-20000kg, DIY Design||Span:||1-10m, Customized|
|Application:||Workshop, Warehouse, Etc||Product Name:||Pillar Column Mounted Slewing Jib Crane|
8 Ton Pillar Mounted Jib Crane,
A3 Pillar Mounted Jib Crane,
270 cantilever jib crane

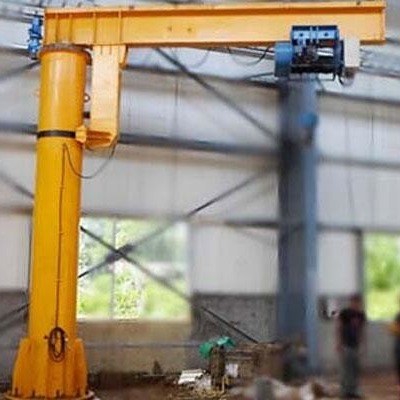

8 Ton Pillar Mounted Jib Crane Working Class Is A3 270° Rotating With Chain Hoist
Product presentation of Pillar Mounted Jib Crane
The fixed column cantilever crane is composed of column equipment, reversing equipment, rotary arm equipment and chain electric hoist, etc., which mainly includes upper column, lower column, main girder, main girder tie rod, lifting organization (chain electric hoist), reversing organization, electrical system, ladder and maintenance channels.The lower end of the column is fixed on the concrete foundation, and the rotary arm is reversed, which can be reversed according to the user's requirements.Reversal is divided into manual reversal and electric reversal.The chain electric hoist equipment is used for lifting heavy objects on the trajectory of the rotary arm.
Fixed column type cantilever crane is suitable for short distance, frequent use, dense lifting work, with high efficiency, energy saving, effort saving, small footprint, easy operation and maintenance and other characteristics.The ring chain electric hoist has the function of lifting and reciprocating operation on the beam. The rotary arm beam can be driven by the reducer on the reverse equipment to reverse the movement of the roller. The electrical control box equipment is on the ring chain hoist.
Technical parameters of Pillar Mounted Jib Crane
|Lifting speed||m/min||8; 8/0.8|
|Travelling speed||m/min||10; 20|
|Drive type||Motor driven for all motions|
|Power source||380V, 50HZ, 3 phase (or other standard)|
|Control model||Pendant pushbutton control or remote control|
Advantage of Pillar Mounted Jib Crane
First of all, the cantilever crane structure is light, easy to operate, flexible and mobile, strong adaptability, affordable, greatly saving the input cost, while reducing the labor intensity of workers, improve work efficiency.
Second, the cantilever crane solves the weakness of the fixed crane which is easily restricted by the site, and is the ideal equipment for repair and installation.
Third, the cantilever crane can move freely on the smooth working site by human propulsion.
Fourth, the cantilever crane is both economic and efficient.Whether serving part or all of the workshop, can simply and reliably serve the work of each equipment, can rotate 360°, can conveniently complete the task,
Thus, the use of cantilever crane greatly save the cost, and improve work efficiency, ilence company has a professional technical team can work before and after the installation of guidance to the user, ensure that the user is familiar with the product operation and the maintenance work, to provide you with professional after-sales service, our cantilever crane is not only beautiful shape, and the high quality and low price, is the first choice for you to buy.
