Span 5m 10 Ton electric jib crane 3 Phase Power 24 Months Warranty

Minimum Order Quantity : 1 set Price : USD 3000-15000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth. Delivery Time : 15 days
Payment Terms : T/T, L/C Supply Ability : 1 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: BZ、BZD

Detail Information

Capacity: 10 Ton Application: Workshop,Mold Factory
Max. Lifting Height: 3-10M Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Pump
Item: Model Column Mounted Jib Crane Product Name: Portable Jib Crane
High Light:

10 Ton Electric Jib Crane


Span 5m Electric Jib Crane


Span 5m lightweight jib crane

Product Description

Span 5m 10 Ton Pillar Mounted Jib Crane 3phase Power 24 Months Warranty

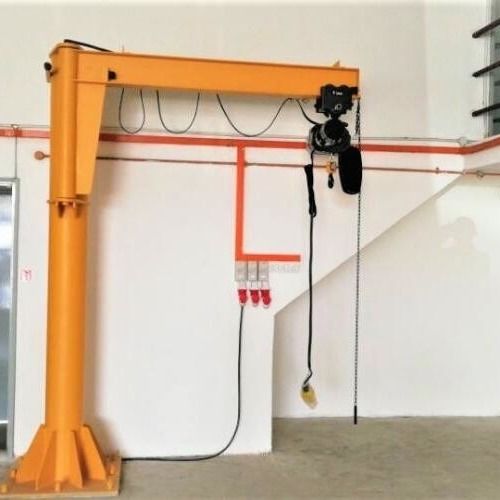

Product presentation of Pillar Mounted Jib Crane

Silence offers a complete line of quality-built jib cranes to meet the most demanding material handling requirements. There are various jib crane models from which to choose: floor-mounted pillar types, top and bottom-supported units, wall or column-mounted versions and models that afford manual or motorized rotation. Built to the highest industry standards. Silence jib cranes have earned a reputation for ruggedness and durability.


Operates like an arm in a work area, where it can function as a manipulator for positioning tasks. A hoist is attached to the arm for lifting arm mounted on the wall or attached to a floor mounted support arm can rotate 360. The hoist can move along the arm jib cranes assist the staff and multiply human efforts, handling loads up to 5000 kgs. Precisely and effortlessly. Pillar Mounted Jib Crane are useful especially for loading or unloading of work pieces on machine tools. These are also useful for loading or unloading from trucks. They can also become an inseparable part of a standalone workstation. Column mounted jib cranes are necessary when no other appropriate support near a workstation is available. Wall mounted jib cranes are ideal solutions for workstations located near walls or vertical structures.

Technical parameters of Pillar Mounted Jib Crane


Capacity Ton 0.25 0.5 1 2 3 5
Beam length mm 2000~6000
Lifting height mm 2000~6000
Lifting speed m/min 8; 8/0.8
Travelling speed m/min 10; 20
Turning speed r/min 0.76 0.69 0.6 0.53 0.48 0.46
Turning degree degree 360°
Drive type Motor driven for all motions
Duty Class A3
Power source 380V, 50HZ, 3 phase (or other standard)
Working temperature -20~40
Control model Pendant pushbutton control or remote control



Span 5m 10 Ton electric jib crane 3 Phase Power 24 Months Warranty 0Span 5m 10 Ton electric jib crane 3 Phase Power 24 Months Warranty 1


Span 5m 10 Ton electric jib crane 3 Phase Power 24 Months Warranty 2

Span 5m 10 Ton electric jib crane 3 Phase Power 24 Months Warranty 3

Advantage of Pillar Mounted Jib Crane

1. Fixed column type rotary boom crane is a new generation of light lifting equipment for modern production, which is equipped with high reliability chain electric hoist.
2. It is suitable for short distance, frequent use and intensive lifting operation to rationalize loading, unloading and handling operations.
3. The fixed column type cantilever crane is a kind of light and small lifting equipment, which has the advantages of novel structure, high efficiency, energy saving, time and effort saving, reasonableness, simplicity, convenient operation and use, flexible rotation, large working space and so on.
4. Three-dimensional free operation, in the space, dense transport occasions, compared with other conventional lifting equipment shows its superiority, is the material lifting equipment with high energy saving and efficiency.
5. The fixed column type rotary arm crane can be widely used in the production line, assembly line and machine tool of the factory and mine, workshop, warehouse, wharf and other occasions of heavy lifting.
6. The fixed column type cantilever crane structure is scientific and reasonable, and the operation is flexible and convenient, which greatly reduces the working pressure of human transportation and makes us work more efficiently.
7. Fixed column type cantilever crane is a light working strength crane, by the column, rotary arm rotary drive device, and electric hoist composition.
8. The product has light weight and is convenient for transportation and installation. Its span and lifting weight are large, so it can meet the requirements of a variety of equipment mobile loading and unloading.

Span 5m 10 Ton electric jib crane 3 Phase Power 24 Months Warranty 4
