Chain Hoist 1-10 Ton Floor Mounted Jib Crane Motor Rotation
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||USD 3000-15000/set|
|Packaging Details :||Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth.||Delivery Time :||15 days|
|Payment Terms :||T/T, L/C||Supply Ability :||1 sets|
|Place of Origin:||China||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||BZ、BZD|
|Power Source:||3 Phase 380V 50hz||After-sales Service Provided:||Field Installation, Commissioning And Training, Field Maintenance|
|Crane Feature:||Safety||Warranty:||2 Years|
|Span:||Client`s Request (3.5-12m)||Max. Lifting Height:||1~12m|
2.5 Ton Pillar Mounted Jib Crane,
10m Pillar Mounted Jib Crane,
Double Speed 2.5T swing jib crane

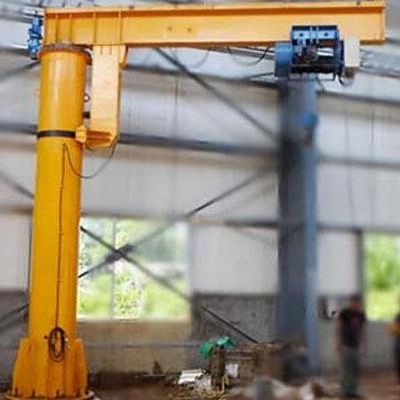

2.5 Ton Pillar Mounted Jib Crane Max Height 10m Double Speed Polyurethane Buffer

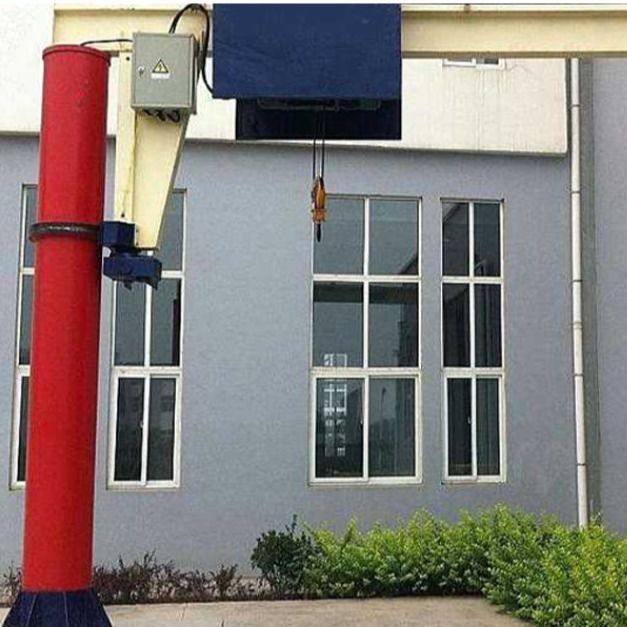

Product presentation of Pillar Mounted Jib Crane
Why Choose Silence Jib Crane:
Jib crane arm reaches every corner of the workspace.
Easy slewing operation with pivot resistance regulator as standard feature, positioning accuracy.

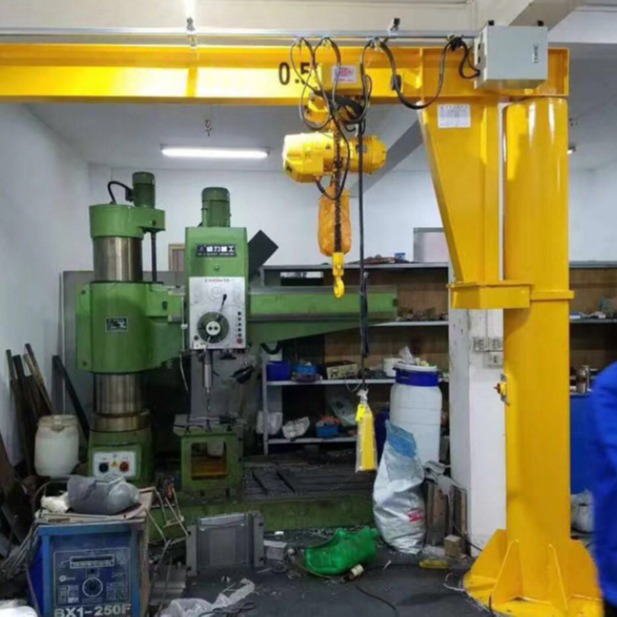

Compact design, perfectly suitable for feeding of machines and machining centres or installation of machines.
Supports ergonomic operation while reducing strain on workers.
Large effective lifting height. Large operating range thanks to generous swivel angle.
Column height and jib arm length can be adjusted to conditions on the spot.
Broad range of fastening options provides for convenient installation.
High-quality coating. High quality wear resistant components.
Modern design with affordable price.
Technical parameters of Pillar Mounted Jib Crane
|Capacity(KG)||500 KG||1000 KG||2000 KG||3000 KG||5000 KG|
|Beam Material||H Beam & KBK Beam|
|Travelling Type||Electrical & Manual||Electrical||Electrical||Electrical|
|Revolving Type||Electrical & Manual||Electrical||Electrical||Electrical|
|Revolving radius||1m - 7m||1m - 7m||1m - 7m||1m - 7m||1m - 7m|
|Lifting Height||2m - 10m||2m - 10m||2m - 10m||2m - 10m||2m - 10m|
|Total Height||2m - 10m||2m - 10m||2m - 10m||2m - 10m||2m - 10m|
|Revolving Angle||180° & 270°& 360°|
Electric System of Pillar Mounted Jib Crane
01.Power supply through step less slide lines.
02.Lifting mechanisms and traveling mechanisms are mutually independent and could travel at the same time.
03.Control panel protection degree is IP54.
04.Reasonable components installation, convenient for check and maintenance.
05.Electric cable is suspended in cable saddle, stationary cable trolley which slides on a galvanized C-type steel.
Production Technology of Pillar Mounted Jib Crane
box-type shaped by wielding.
High quality carbon steel Q235B and Q345B.
the girder connected by high strength screws.
Welding seams are tested by X-ray and ultrasound.
Compact structure, small volume and light weight trolley.
Lifting mechanism is open type winch trolley.
Compact reducer motor drive, step less control, hardened gears and safety disc brake.
Good operation performance, step less speed regulating and running smoothly.
Main girders Shot blasting sa2.5 after welding to release internal stresses.
Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm.

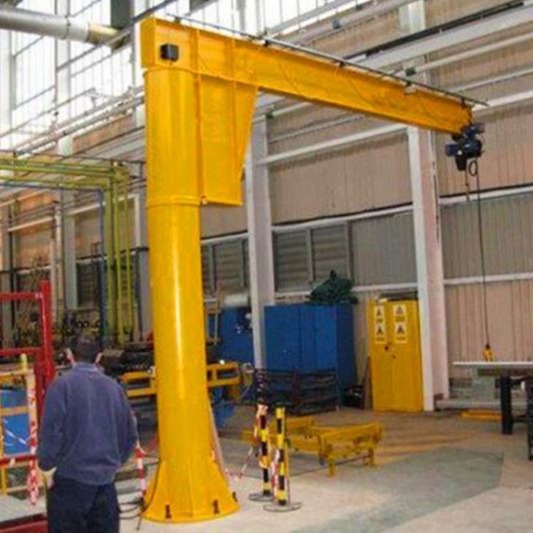

Free Standing Jib Crane Design
The head assembly is constructed of standard plate, angles, and channels to ensure minimum deflection and maximum rigidity.
Head assembly is designed to inhibit dislodgment due to upward and forward motion, also allows bottom entry electrification inside the head and will also allow mounting above the boom for top entry electrification.
Allows for electrified, motor driven, powered rotation through various collector ring assemblies.
The boom or I-beam is designed to meet all specifications utilizing a 25% factor of rated load for impact and 15% of rated load for hoist and trolley weight.
The pipe mast or column is designed to give maximum strength and minimum deflection to resist bending, buckling, and crushing as well as wear by the trunnion roller assembly.
The top bearing assembly utilizes a tapered roller bearing with a grease fitting for proper lubrication.
