Product Description
CE Certificate 180° Rotating 2.5 Ton Pillar Mounted Jib Crane Lifting Speed 5.6m/Min

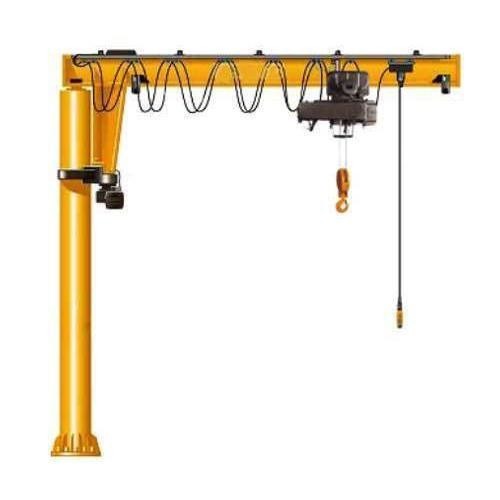

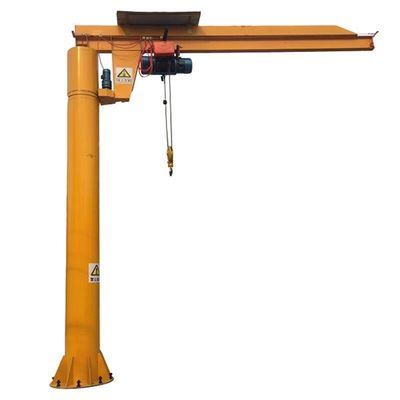

Product presentation of Pillar Mounted Jib Crane
Jib cranes are a rotating type crane with a pivoting mast and a boom that carries the hoist. A jib crane can be either floor mounted or wall mounted.
This is the most commonly used Jib crane. Floor mounted jib crane is a self-supporting jib crane having a vertical mast mounted on a concrete foundation. These types of cranes are generally used to share the load of main cranes. All these cranes can rotate 360 degrees and can be electrically or manually operated.
Technical parameters of Pillar Mounted Jib Crane
| Capacity |
t |
0.5 |
1 |
2 |
3 |
| Valid radius |
R(m) |
3~12 |
3~12 |
3~12 |
3~12 |
| Lifting height |
m |
3~8 |
3~8 |
3~8 |
3~8 |
| Lifting speed |
m/min |
8(0.8/8) |
8(0.8/8) |
8(0.8/8) |
8(0.8/8) |
| Trolley speed |
m/min |
10(20) |
10(20) |
10(20) |
10(20) |
| Slewing speed |
r/min |
0.5~1 |
0.5~1 |
0.5~1 |
0.5~1 |
| Slewing angle |
|
0°~360° |
0°~360° |
0°~360° |
0°~360° |
| Work duty |
|
A3~A4 |
A3~A4 |
A3~A4 |
A3~A4 |
| |
|
|
|
|
|
| Capacity |
t |
5 |
10 |
16 |
20 |
| Valid radius |
R(m) |
3~12 |
3~15 |
3~15 |
3~15 |
| Lifting height |
m |
3~8 |
3~8 |
3~8 |
3~8 |
| Lifting speed |
m/min |
8(0.8/8) |
7(0.7/7) |
3.5(0.35/3.5) |
3.3(0.33/3.3) |
| Trolley speed |
m/min |
10(20) |
10(20) |
18 |
14 |
| Slewing speed |
r/min |
0.5~1 |
0.5~1 |
0.4~0.7 |
0.4~0.7 |
| Slewing angle |
|
0°~360° |
0°~360° |
0°~360° |
0°~360° |
| Work duty |
|
A3~A4 |
A3~A4 |
A3~A4 |
A3~A4 |
Pillar mounted Jib Crane Design
Having advanced jib crane design has many conveniences for installing and operating the equipment, in our company, the design is often done by our professional engineers, our engineers have rich experiences and professional skills of designing equipment, in order to design more advanced pillar mounted jib crane, our engineers constantly learn new skills and new technologies.
With the development of science and technology, the products without technology will be replaced quickly, so our company has attached great importance to design pillar jib cranes with high technology. With the technology, we can quickly design the reliable pillar jib cranes according to your construction site, goods’ weight and other requirements.
The pillar cranes design with technology has many advantages, for instance, which brings automation, easy installation and simple operation, at the same time, the efficiency of pillar mounted jib crane also will improve a lot. In addition, with the advanced pillar cranes design, using the pillar jib will be more safe, which can greatly protect workers from carrying heavy goods.
In short, we provide advanced and professional pillar cranes design for our customers, which can help customers use the pillar jib safely, conveniently and efficiently, so the pillar mounted jib crane will be your ideal choice.
Safety Features--Floor Mounted Jib Crane
Safety is the most important issue for cranes. To ensure the safety, the following safety devices are equiped in Silence Crane.
Hoist traveling limit switch.
Weight overload protection device.
Lifting height limit device.
Voltage lower protection function.
Phase sequence protection function.
Emergency stop function.
Rain cover for outside hoist, driving units, electric cubicle.
Warning indicator: flashing lights and warning sounds.
Wireless infra-detector for anti-collusion.
