High Working Efficiency 7.5 Ton Cantilever Jib Crane Lifting Height 5m

Minimum Order Quantity : 1 set Price : USD 3000-15000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth. Delivery Time : 15 days
Payment Terms : T/T, L/C Supply Ability : 1 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: BZ、BZD

Detail Information

Rated Loading Capacity: 7.5 Ton Max. Lifting Height: 5-20m
Warranty: 1 Year Product Name: Jib Crane
Control Method: Wireless Remote Controller Or Handle Delivery: By Sea
High Light:

7.5 Ton Cantilever Jib Crane

,

5m Cantilever Jib Crane

,

7.5T lightweight jib crane

Product Description

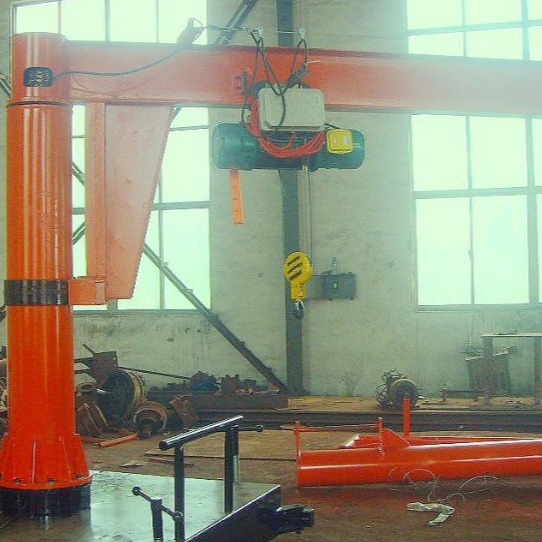

High Working Efficiency 7.5 Ton Pillar Mounted Jib Crane Lifting Height 5m





Product presentation of Pillar Mounted Jib Crane



Pillar mounted jib crane is a light crane used to lift and move different types of materials and goods. It is mainly composed of column device, rotating device, slewing device, electric hoist, fixed device and so on. The lower end of the column is fixed on the concrete foundation with anchor bolts. The rotating arm can be rotated according to customer requirements, and can be rotated manually and electrically. The electric hoist is installed on the track of the rotating arm and travels along the track to lift and move heavy objects.



Technical parameters of Pillar Mounted Jib Crane



Lifting capacity(t) 3 5
Lifting height (m) 4.5 5 4.5 5
Valid radius(m) 5 5.5 5 5.5
Speed (m/min) Hoisting Slow speed 0.8
  Normal speed 8
Slewing speed 0.5-1
Traveling speed 20
Slewing angle 180°,270°,360°



The Benefits Of A Jib Crane In An Industrial Setting


When you have many heavy loads to lift, you will probably need a crane to get the job done. There are many types of cranes available today and they come in all types and sizes. Each type of crane serves a certain function, so it is important to choose the right crane for the job. A column-mounted jib crane is a good choice is you are moving heavy loads around a small area. These cranes may also be portable if they are mounted on a column and then placed on a mobile chassis. The crane can then lift cargo in a number of different locations and transport it to the new location.



A jib crane is a type of overhead crane that includes a horizontal arm known as the boom or jib. This arm supports the hoist which is what actually lifts and carries the load. This horizontal arm is either fixed to a floor-mounted column or to the wall. Jib cranes are used most often in industrial facilities or on military vehicles. The jib can be either movable so that it swings in an arc or be fixed in one place.



These types of cranes are generally smaller than other overhead cranes. Their compact size makes them a good solution for moving cargo in small industrial spaces. They are often called hoists because they are fixed permanently into position on the factory or warehouse floors.







High Working Efficiency 7.5 Ton Cantilever Jib Crane Lifting Height 5m 0

Features of Pillar Mounted Jib Crane


1. New generation of the hoist equipment developed to meet the requirement of modernized production.
2. Reasonable structure, easy operating and high efficiency, etc .
3. It is widely used in Wareshop,Workshop,Plant,port,Open Yard,Storage Area and etc.

High Working Efficiency 7.5 Ton Cantilever Jib Crane Lifting Height 5m 1


Application--Floor Mounted Jib Crane


The most common applications for jibs are individual work stations; machine tools, welding / fabrication stations, and some small assembly stations.


They are also often used in simple loading / unloading operations where it is not necessary to spot a load precisely.


Jib cranes most often handle lighter loads at lower duty cycles than their bridge and Gantry Crane counterparts.


If there is a need for precise locating of heavy loads, a large area of hook coverage, or frequent use for heavy loads, the jib crane may not be the best solution.



Packaging

High Working Efficiency 7.5 Ton Cantilever Jib Crane Lifting Height 5m 2
