Product Description
European Type 4.5 Ton Pillar Mounted Jib Crane Remote Control 3 Phase Power Supply

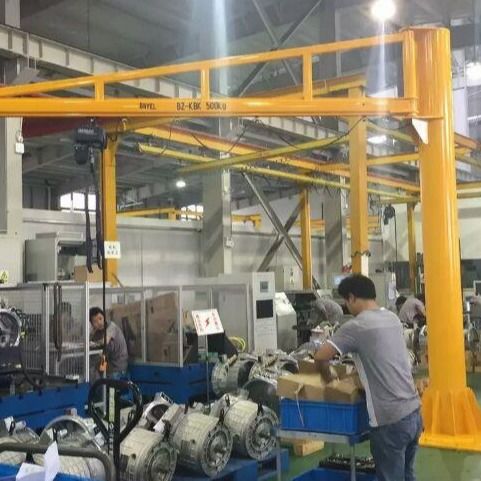

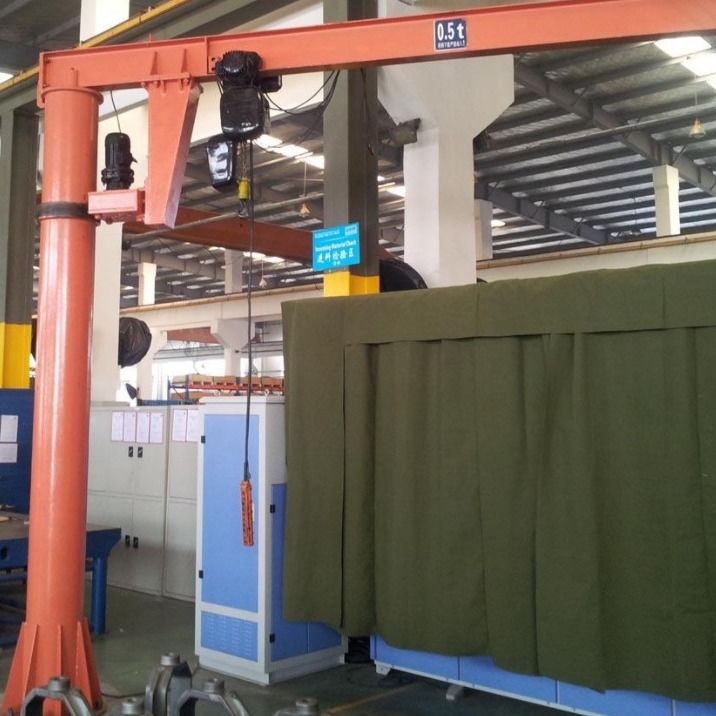

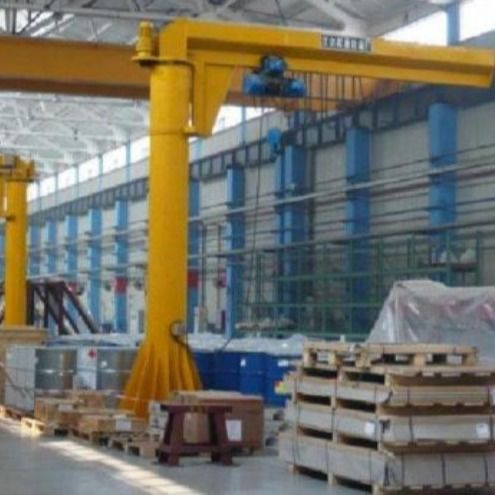

Product presentation of Pillar Mounted Jib Crane
Column is made of seamless steel pipe, and the main girder is made of 1-beam girder or KBK light beam, rotating way can be manual(< 1t) or electric. JIB crane can be equiped electric wire rope hoist, electric chain hoist or manual hoist. It is suitable to work in the short-range and intensive lifting occasions. So it’s widely used in workshops, warehouses, docks and other fixed place.
We can recommend different models of cranes according to different working requirements. This kind of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180 °, 270 °, 345 °, 360 ° according to client’s usage.
Technical parameters of Pillar Mounted Jib Crane
| Lift capacity(T) |
1, 2, 3, 5, 10, 16, 20 |
| Span(M) |
7.5-22.5 |
| Mechanism traveling |
speed(m/min) |
10, 20, 30 |
45, 60 |
| motor |
type |
ZDY1 21-4 |
ZDR12-4 |
| power(kw) |
2*0.8 |
2*1.5 |
| speed(r/min) |
1380 |
1380 |
| Electric chain hoist or wire rope hoist |
model |
CD1/MD1/HHBB |
| lift height(m) |
3-15 |
| traversing speed(m/min) |
20,30 or can be customized |
| lifting speed(m/min) |
8(7); 8/0.8(7/0.7) |
| Workclassfication |
A3-A5 |
| Power supply |
380V/50HZ or on request |
Main Features of Pillar Mounted Jib Crane
1. Column using seamless pipe,main beam use I-beam or KBK beam.
2. Rotation can be manual or motorized.
3. Hoist can be equipped with electric wire rope hoists, electric chain hoists or manual hoists.
4. Unique structure, safe and reliable, high efficiency and flexible.
5. Can be customized according to client’s requirements.
6. Easy installation.
What Are Safety Controlling Points Of Column Mounted Jib Crane?
1. Before installing and disassembling, it is necessary to make specific working plan according to its features, technology requirement and working conditions.
2. Only professional workers can install and disassemble the jib crane, after installation, jib crane should receipt strict quality check, after getting quality certification, the jib crane can be used.
3. The rail of jib crane must meet the national standards, the fixed jib crane should be produced according to the design plans.
4. Some specifications of jib crane must be complete, such as torque limiter, ultra-high, luffing, travelling limiter, retainer hook insurance, drum insurance and so on. These safety devices must be sensitive and reliable.
5. To avoid collision during working, jib crane should keep certain distance from another jib crane.
6. Never use jib crane in bad weather. After snow and rain, firstly test lifting to make sure whether the brake is sensitive, then the crane can be used.
