3 Ton Compact Jib Crane Lifting Height 5m With Chain Hoist

Product Description

Compact Design 3 Ton Pillar Mounted Jib Crane Lifting Height 5m With Chain Hoist

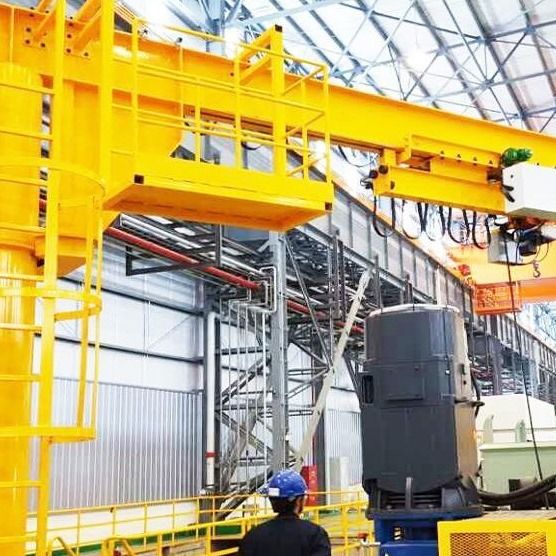

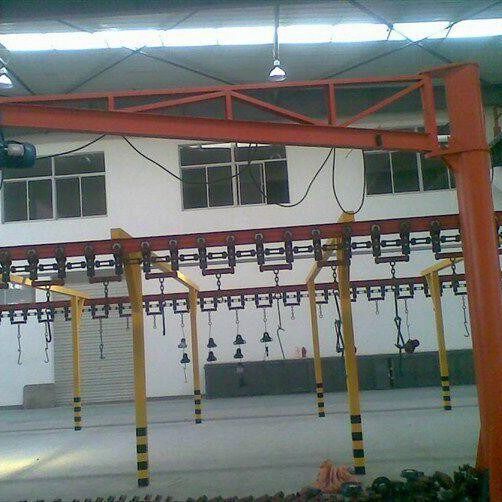

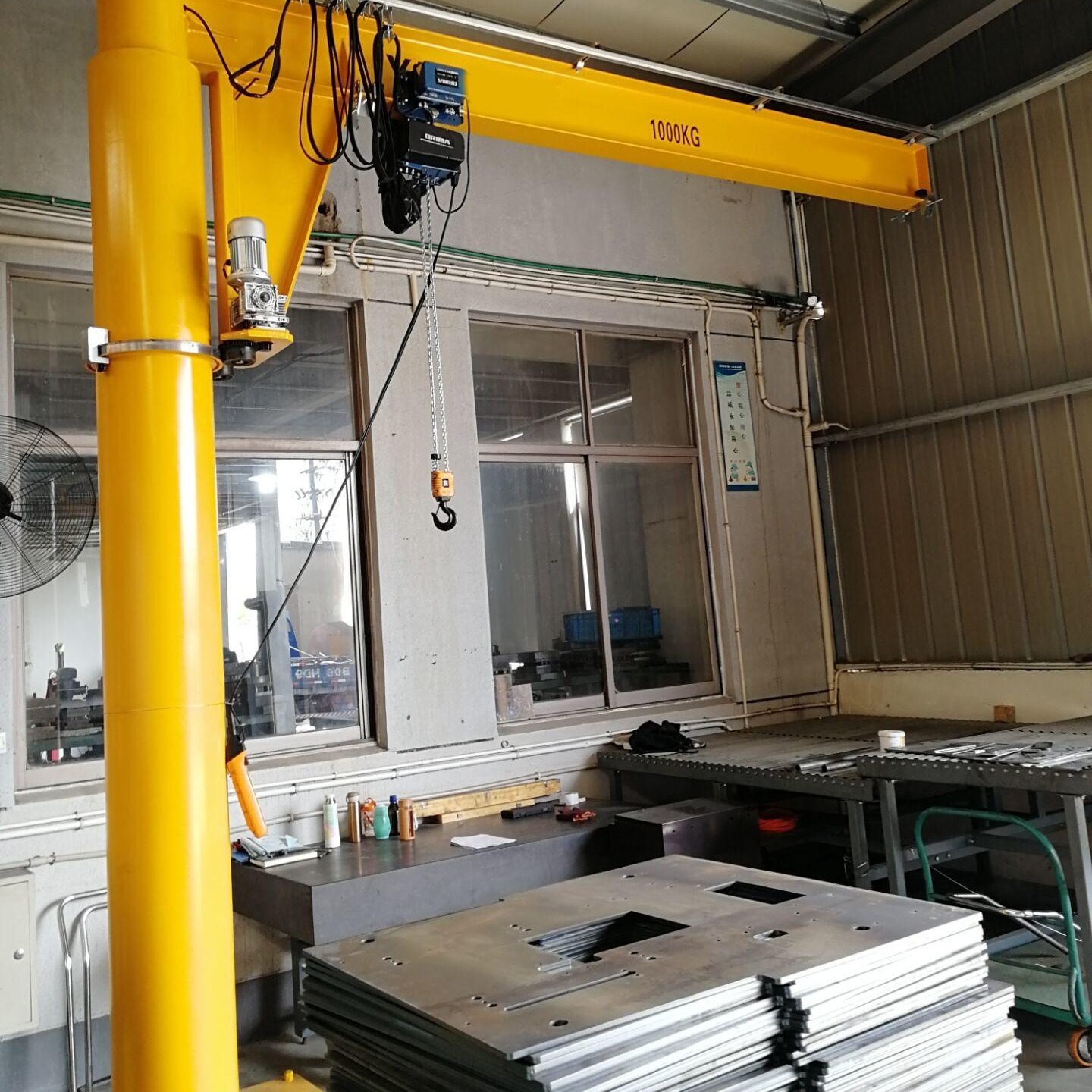

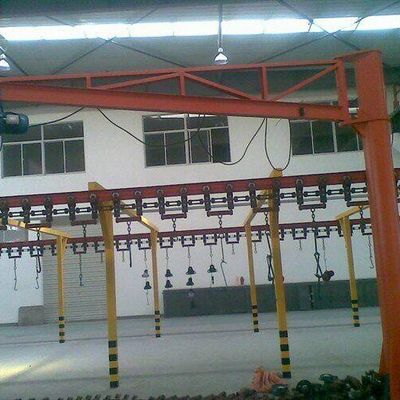

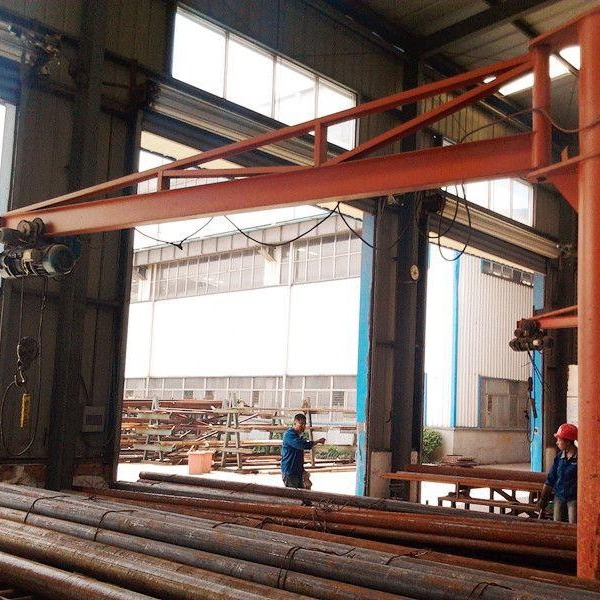

Product presentation of Pillar Mounted Jib Crane

A Column Mounted Jib Crane, also known as ‘pillar mounted’ is a kind of jib crane that uses a mounted arm to lift, move or lower materials and our Pillar Jib Crane's provide a slew range of 360°. This particular workstation type of jib crane is widely applied to many applications, such as manufacturing and assembly lines, factory, warehouse, and outdoor applications like locking docks, etc.

For machining and assembly applications the jib crane can be overlapped with other jib cranes to provide staged coverage, or be used underneath large overhead cranes for object handling works.

Our range of Column Mounted Jib Cranes can be supplied with jib arm lengths of up to 8 meters and Safe Working Loads of up to 10 tonnes.

Technical parameters of Pillar Mounted Jib Crane

Options available of Pillar Mounted Jib Crane

Lockable main switch
Most models available with large base for use with resin anchor bolts
Installation template and cast in anchor rods
Rotation slowing device
Adjustable rotation stops
Single or multi-position rotation lock
Electric or manual hoist

Technical features of Pillar Mounted Jib Crane

Standard height to underside of beam of 3 metres and is available up to 4 metres upon request
Jib crane with hollow-section pillar for indoor use
270° rotation, with overbraced jib arm
This type of jib crane cannot be motorised
Oversized base plate available to potentially alleviate the need for a foundation
Polyurethane RAL1028 melon yellow painted finish
Power supply cable provided if required
Suitable for hoist with a maximum hoisting speed of 16mpm

Please feel free to contact us for quotation.

In order to confirm the correct quotation for you, please confirm the following specifications:

1. Lifting capacity(t):

2. Lifting height(m):

3. Span(m):

4. Power source: __v/__hz/__phase

5. Materials to be lifted:

6. Crane working time per day(h):

7. Crane working environment:

8. Other special requirements:

Looking for pillar mounted jib crane? With wide experience and expertise, SILENCE is well-known as one of the largest manufacturers and suppliers in China. We are equipped with a professional factory which can guarantee you the high quality, high precision and reliable performance of our products.
