Explosion Proof 80T Overhead Travelling Crane Frequency Control Of Motor Speed
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||USD 4500-USD 15000/set|
|Packaging Details :||Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth||Delivery Time :||20 days|
|Payment Terms :||T/T, L/C||Supply Ability :||5 sets|
|Place of Origin:||China||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||LD QD|
|Warranty Of Core Components:||1 Year||Lifting Mechanism:||Eliectric Hoist|
|Power Source:||3 Phase 380V 50hz/Custmized||After-sales Service Provided:||Field Installation, Commissioning And Training|
|Rated Lifting Moment:||50KN-4800KN||Control Method:||Wireless Remote Control|
45T Electric Overhead Travelling Crane,
Inverter Electric Overhead Travelling Crane,
45T industrial overhead crane
We are a renowned name in manufacturing, supplying and exporting a ruggedly constructed range of Double Girder Box Type Crane. These cranes possess a load bearing capacity up to 100 T along with spans up to 50 M. We use advanced techniques in our manufacturing procedure, which enables us to keep in pace with the existing market developments. Our range is available at industry specific rates.
Load capacities of up to 100 T and with spans up to 50 M.
Capacity : 0.5 Ton to 100 Ton
Span : 3 Mtrs. To 30 Mtrs.
Lift : 0.5 Mtrs. To 35 Mtrs.
Technical parameter of Overhead Travelling Crane
|Operational method||Pendent line with press button /cabin/remote control|
|Speed||Hoisting||m/min||8. 8/0.8||7. 7/0.7||3.5, 3.5/0.35||6. 6/0.6|
|Travelling of crab||20|
|Travelling of crane||Surface||20(30)||20|
|Electric hoist||Type||CD1-3 MD1-3||CD1-5 MD1-5||CD1-10 MD1-10||CD1-16 MD1-16|
|Power supply||3-phrase 50HZ 380V|
Following are the unique attributes of EOT cranes:
Optimum design of the structure avoiding dead weight and reducing the cost of the equipment.
Very much suitable for power house cranes where these cranes are used for maintenance.
Economical Design by providing manual long and cross travel facility with a provision for using either an electric hoist or a motorized chain pulley block
Low head room which in turn reduces the cost of the shed/building
Customized design to match the budget of the customer
Highly Competitive Price.
We bring forth for our clients Double Girder EOT Cranes that are designed to suite the specific requirements of our clients. Made using high quality material, these are widely appreciated among our clients across the globe.
Brakes for all the drives are generally AC electro hydraulic
Thruster brakes or electro magnetic Shoe/disc type brakes according to the application or client requirement
Supported on anti-friction thrust bearings, hook are of either shank or rams-horn type
Sheave pulleys are made of malleable cast iron or fabricated, conforming to IS 3815
Cranes can be controlled either by pendant/cabin/radio remote or combination of any of these
The main electrical components are housed in a sheet steel enclosure, located conveniently for easy maintenance
Standard protection devices includes overload and short circuit protection
Girder designs are perfected using the latest advanced Auto CAD design software
Girders are carefully designed using fresh tested steel plates to IS: 2062 Gr
Obtained directly from the main steel producers, A or B are cut cut to size using the latest CNC profile cutting machines and welded using advanced welding practices

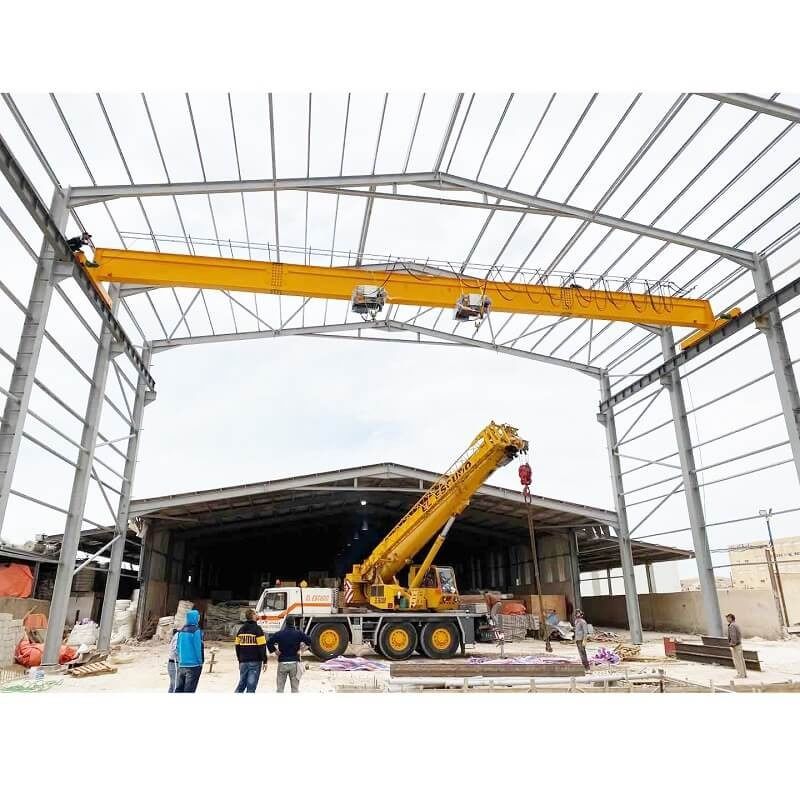

Installation procedure of overhead travelling crane
Package and Delivery
