High Stability 200 Ton Overhead Travelling Crane Mining Enterprises

Minimum Order Quantity : 1 set Price : USD 25000-USD 90000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 20 days
Payment Terms : T/T, L/C Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: QD

Detail Information

Application: Metallurgy, Scrap Metal Factory Capacity: 200t
Control Method: Cabin Control Lifting Mechanism: Electric Winch Trolley
Crane Type: Double Girder Traveling Overhead Crane & EOT Crane With Double Hook Color: Clients' Requirments, It's Usually Yellow
High Light:

200 Ton Overhead Travelling Crane

,

span 31.5m Overhead Travelling Crane

,

200 Ton sg eot crane

Product Description

High Stability and Design Rigidity 200ton Overhead Travelling Crane Mining Enterprises

Description of Overhead Travelling Crane



Electric overhead travelling crane is one of the most commonly used overhead cranes, and it is also called eot crane for short. As the name shows, eot crane is operated by electric, usually with an operator cabin or a control pendant. It is applicable to transfer, assembly, load and unload goods in warehouse, workshop of mechanic processing and metallurgical mills, power station, etc. This equipment can be divided into two types: single girder eot crane and double girder eot crane.



Introducing the lasted technology, electric overhead traveling crane has become the most competitive equipment in the crane market with lots of unbeatable advantages. We have rich experience in manufacturing eto crane and also provides nonstandard design according to customer’s requirement.



Load capacity: 5-320t
Span: 10.5-31.5 m
Lifting height: 6-24m
Lifting speed: 0.2-10.7m/min
Trolley running speed: 2.4-33m/min
Crane running speed: 4.2-68m/min
Work duty: A3-A5



Technical parameter of Overhead Travelling Crane



Lifting capacityt Span m Main lifting speed Cart running speed Wheel pressure
10 10.5-31.5 8.5 90.7 101-158
16/3.2 10.5-31.5 7.9 87.6 140-205
20/5 10.5-31.5 7.2 74.6 162-231
32/5 10.5-31.5 7.5 74.6 236-327
50/10 10.5-31.5 5.9 85.9 332-449
75/20 10.5-31.5 4.7 53.9 271-339
100/20 13.5-31.5 3.9 62.3 347-426
125/32 13.5-31.5 3.9 62.3 401-494
150/32 13.5-31.5 3.7 68 262-326
160/32 13.5-31.5 3.5 68 272-338
200/50 13.5-31.5 2.6 48 326-410
250/50 13.5-31.5 3.5 48 356-430


Advantages of Overhead Traveling Cranes





Small size, lightweight and wheel pressure


This kind of eot crane has small size, light weight and wheel pressure. It is equipped with electric hoist which has the advantages of low noise, light weight and high configuration. The motors and electrical components all come from international famous brands like ABB, SEW, Schneider, and Siemens. Due to its compact structure and advanced design, the equipment is preferred among numerous overhead cranes.



High efficiency


Compared with traditional crane, this equipment has lower clearance, higher lifting height, and small boundary dimensions which mean the minimum distance between the hood and the wall, effectively increasing the working space.



Reliable performance and easy operation


Being the same with common overhead crane, eot crane has simple structure and easy operation, and with high quality components and advanced design, and it can achieve a superior and durable performance.



Low cost and power consumption


Thanks to structural advantages of eot crane such as small size and light weight, the investment in plant construction and other facilities like heating can be reduced. Besides, due to its high performance, the maintenance cost and energy consumption can be greatly decreased, thus saving the costs.





Why Choose Us?


Professional eot crane manufacturer
We have engaged in manufacturing electric overhead travelling crane for more than ten years, during which we have introduced advanced domestic and foreign technology, and set up a technical team with dozens of middle and senior technical talents. In our factory, we also introduce a number of advanced processing equipment, which lays a solid foundation for manufacturing high quality products. Apart from overhead crane, we manufacture jib crane, gantry crane, electric hoist and winch products for your choice. We also provide customized crane and solution according to customer’s requirement.

Eot crane service
We have formed a powerful marketing network integrating sales and service so that clients around the world can come to understand our products and service timely and comprehensively. We also constantly train our salespersons and improve their service consciousness. Our purpose is to guarantee a perfect pre-sale, sales tracking, after-sale service system and serve our customers with heart.

If you are interested in electric overhead travelling crane, please contact us via email or online, and we will offer a suitable solution to you!

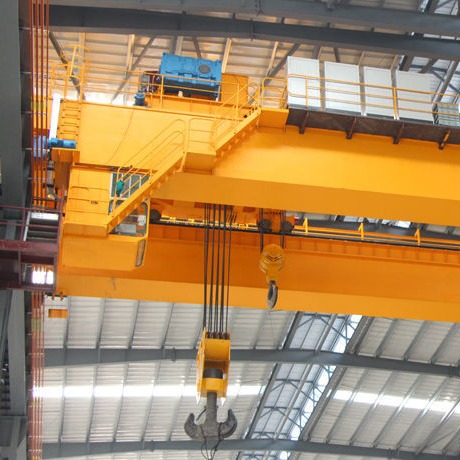

High Stability 200 Ton Overhead Travelling Crane Mining Enterprises 0



Installation procedure of overhead travelling crane

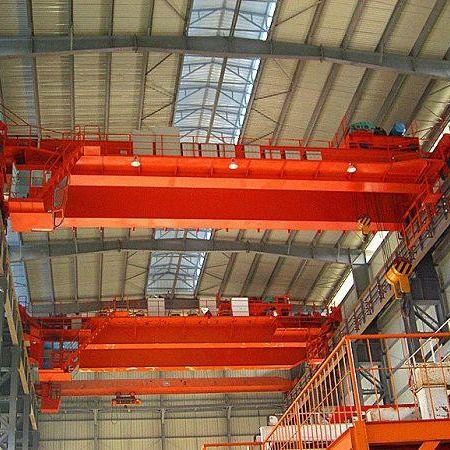

High Stability 200 Ton Overhead Travelling Crane Mining Enterprises 1

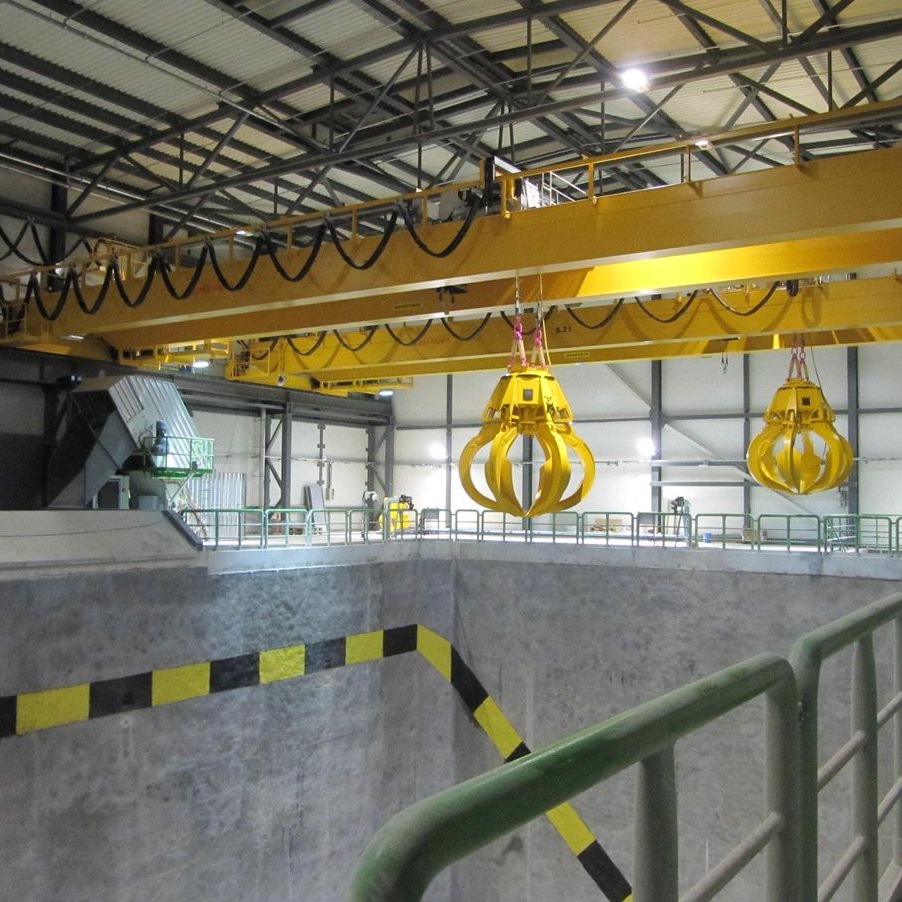

High Stability 200 Ton Overhead Travelling Crane Mining Enterprises 2



Package and Delivery

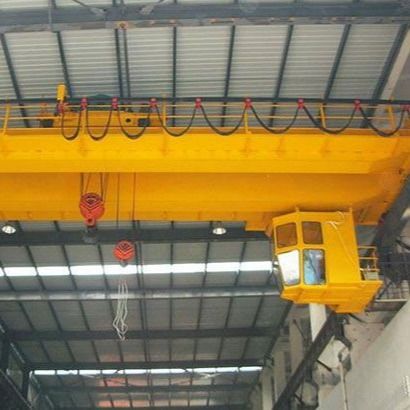

High Stability 200 Ton Overhead Travelling Crane Mining Enterprises 3
