Product Description

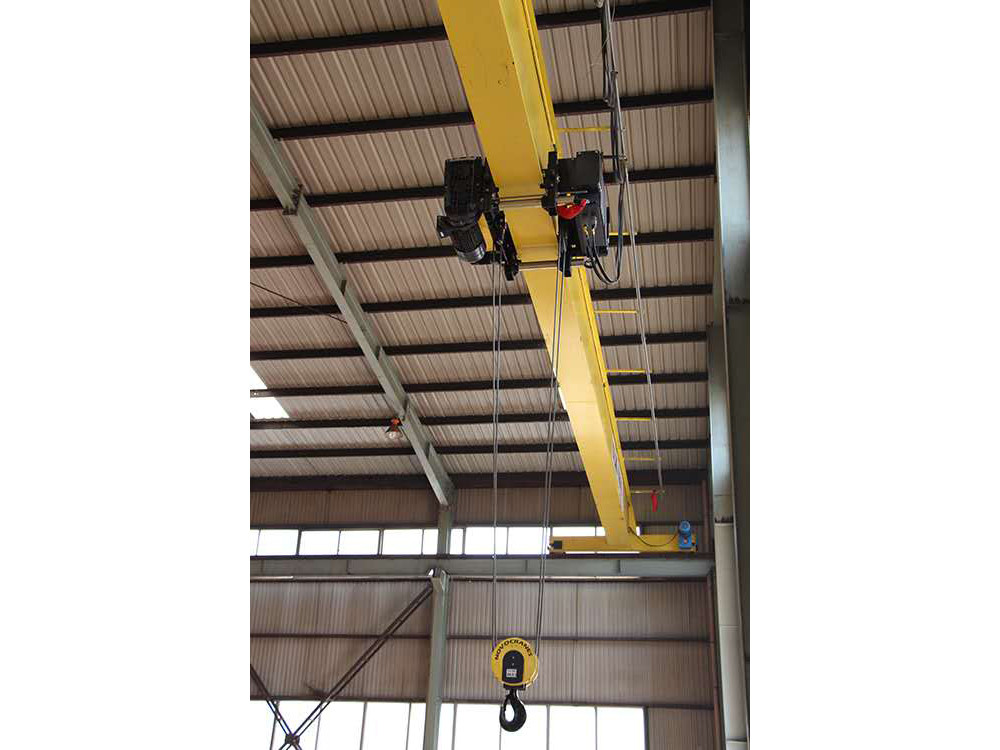

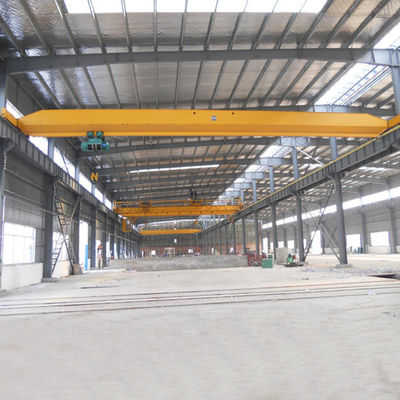

25 Ton Electric Single Beam Crane With European Electric Hoist
Description of Electric Single Beam Crane
Electric Single Beam Crane is composed of main beam, end carriage, electric hoist(or you can choose chain block), electric power transmission device and operation room(as your demand).
The single-girder travelling crane is also a good choice for special solutions: The Silence accessories and components offer specialised additional equipment to satisfy your requirements.
Technical parameter of Electric Single Beam Crane
|
Iteam
|
Specifications
|
|
Lift capacity(T)
|
1T~100T (single girder or double girder)
|
|
Crane span(M)
|
3~28m according to your demands
|
|
Lifting height(M)
|
3~48m according to your demands
|
|
Crane traveling speed(m/min)
|
5~20m/min or 5~30m/min or 5~40m/min.As your request
|
|
Electric hoist lifting speed(m/min)
|
European electric hoist
|
CD1 electric hoist(8 m/min)
|
|
(5/0.8 m/min double speed)
|
MD1 electrc hoist(8/0.8 m/min)
|
|
Hoist trolley speed(m/min)
|
0-20 m/min
|
20m/min or 8/20m/min
|
|
Remote control
|
F24-6D/F24-10D or F21-E1B etc, according to your demands
|
FAQ:
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: What's your warranty period?
A: 12 months from winches accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
9. Q: Could your winches drag inclined?
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
Installation procedure of overhead travelling crane
