10T M3/A3 Overhead Travelling Crane Adapt To Different Plant Installation

Minimum Order Quantity : 1 set Price : USD 4500-USD 15000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 20 days
Payment Terms : T/T, L/C Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: LHO QD

Detail Information

Condition: New Capacity: 10T Or Request
Feature: Bridge Crane Power Supply: 3 Phase 380V 50hz Or According To Your Demands
Crane Type: EOT Crane With Hook Color: Clients' Requirments
High Light:

M3/A3 Overhead Travelling Crane


10T Overhead Travelling Crane


M3/A3 workshop overhead crane

Product Description

10T Overhead Travelling Crane Adapt to Different Plant Installation Individual Configuration

Description of Overhead Travelling Crane


Our double-girder overhead travelling cranes offer exceptional load capacity for a low deadweight. Their outstanding crane geometry also provides for extremely good travel characteristics, which minimises wear on the end carriages and crane runway. The load hook can be raised between the two crane girders, which allows large lifting heights to be achieved. Further strengths?


High long and cross-travel speeds thanks to high-performance double-girder design

Low deadweight reduces investment layout

Crane girders can be adapted to building structure requirements

Minimum approach dimensions thanks to compact travelling hoist design

Crane control to meet application requirements: via radio control, control pendant or cab control (optional)

Maintenance platform and accessible crab facilitate maintenance of building interior fittings (optional)



Technical parameter of Overhead Travelling Crane



Main Specification
Crane Model LD Single Girder Overhead Crane
Lift Capacity 10T
Lift height/Hoist 12m
Span 8m
Work duty M3/A3
Control Method Pendant line button
Power Supply 380v/50hz/3Phase
Electric Part China CHINT
Lifting System
Lifting speed 7m/min
Lifting motor ZD51-4-13KW
Wire rope Diameter 15~22mm
Traveling System
  Hoist Traveling System Crane Traveling System
Traveling speed 20m/min 20m/min
Traveling motor ZDY21-4-0.8KW*2 YSEW-95LZ-1.5KW*2sets
Wheel diameter / 300mmX4units



The benefits of the overhead travelling crane

Highly cost-effective

Low deadweight reduces investment layout – crane girders made of computer-optimised box sections

Connections between the main girder and end carriages manufactured to mechanical engineering tolerances for minimum wear

Increased efficiency thanks to DR rope hoist with extended service life due to Silence 2m+ classification (1,900 hours of service at full load)

Favourable travel characteristics and minimum wear of the crane runway and travel wheels thanks to low-maintenance drives

Travel wheels of highly wear-resistant GGG 70 spheroidal-graphite cast iron with self-lubricating properties

Reduced construction and operating costs thanks to optimised designs


Strong performance

Particularly high performance thanks to double-girder design for high long and cross-travel speeds

Optimum utilisation of the available height and space thanks to compact travelling hoist design (minimum approach dimensions and large hook path)

Particularly high lifting height, as the load hook can be raised between the two crane girders

End carriages of torsionally rigid, welded box-section design

Power supply to the crab by means of highly flexible flat cable with protective earth conductor

Reliable monitoring and preventive maintenance thanks to CAN Bus technology to meet tomorrow's demands for high data transmission reliability (category 3 to DIN/EN 954)

Control pendant suspended for separate travel on the crane girder with display for installation monitoring

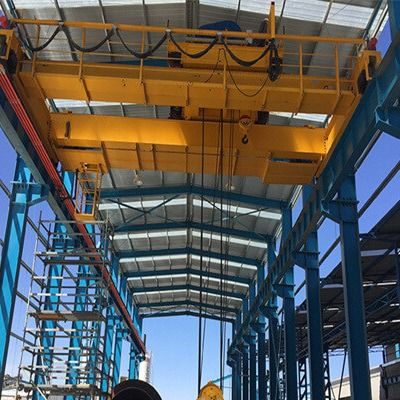

10T M3/A3 Overhead Travelling Crane Adapt To Different Plant Installation 0


Installation procedure of overhead travelling crane

10T M3/A3 Overhead Travelling Crane Adapt To Different Plant Installation 1



Package and Delivery


10T M3/A3 Overhead Travelling Crane Adapt To Different Plant Installation 2
