Low Maintenance 45T End Carriage Overhead Crane Double Hook Off Standard Solutions

Minimum Order Quantity : 1 set Price : USD 25000-USD 90000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 20 days
Payment Terms : T/T, L/C Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: QD

Detail Information

Span: 10.5 To 31.5 M After-sales Service Provided: Overseas Installations Pay Their Own Costs
Max. Lifting Height: 31m Max. Lifting Load: 150ton
Product Name: Double Girder Electric Overhead Traveling Cranes Main Electrical Parts: Schneider Brand,CHINT
High Light:

45T End Carriage Overhead Crane

,

Double Hook End Carriage Overhead Crane

,

45T double hook crane

Product Description

Low-maintenance 45T Overhead Travelling Crane Double Hook Off-standard Solutions

Description of Overhead Travelling Crane



Also known as bridge cranes or jib cranes, overhead traveling cranes are extensively used in a lot of industrial places in order to facilitate the handling and processing of heavy and oversized objects that cannot be handled by other handling equipment and methods. The different areas in which overhead cranes are significantly useful include;



Assembly – Overhead cranes can be used to move heavy product parts through the production process of the product.


Storage – It can be used to move heavy and/or bulky objects to and from storage areas.


Transportation – Overhead cranes can be used to load manufactured products on to open trailers or rail cars.


Warehousing – It can be used to move large, heavy objects from and to the dock areas.



Technical parameter of Overhead Travelling Crane



Loading capacity 5 ~ 500t
Lifting height 3 ~ 30 m or customized
Lifting speed Vary with lifting capacity, or customized.
Span 10.5~31.5 m/min
Lifting mechanism Wire rope hoist or electric chain hoist
Working class A5~ A8
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC -36 / 48V
Motor protection class IP54 IP55 IP65
Control way Cabin, wireless remote, pendant push button
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.




Part of the structural performance design of Overhead Traveling Cranes



Hook – The lifted load is supported using a hook which connects to the hoist.



Hoist – The hoist is what makes the lift and holds, raises, or lowers the load using wire rope or chain. Hoists can be powered manually (by hand), with electricity, or with compressed air (pneumatic).



Trolley – The trolley supports the hoist and moves horizontally along the crane bridge, to position the hoist and hook, prior to picking up or lowering a load. Trolleys can be configured in an Under Running or Top Running design:



Under running / underhung – Trolley wheels run on the bottom flange of the crane beam


Top running – Trolley wheels run on rails fitted to the top of the crane beam. Most frequently seen in higher-capacity double girder designs.





The Benefits of Overhead Traveling Cranes


Not only do you need to use high-quality tools when it comes to the running of a large industrial business or warehouse, but you also need to ensure that your tools are the right ones that are going to help you run your business processes effectively and efficiently. You’ll be able to maximize your productivity with an overhead crane. You’ll also be able to transport your objects and goods around your facility in no time. Here are some other advantages of using an overhead crane for your business;



Increased Safety – You might be thinking forklifts are good, but the thing is forklifts offer imprecise stacking, dropping off goods, and a higher chance of accidents when compared to overhead bridge cranes. Since overhead cranes deal with the overhead space of your facility, all of these risks are very minimal and they have the ability to move bulky and heavy loads faster than forklifts.



Avoid Floor Obstructions – You can install your overhead crane just about anywhere you wish. Since they are positioned as high as the ceiling of your facility, they are going to come in contact with nothing on your facility’s floor. Also, the carriage of products above obstacles will be quite easy, thereby helping you to reduce product damage.



Improved Load Control – Most overhead cranes come with controls that offer awesome precision. This allows you the ability to place the crane on the exact spot you need it to be with no strain or hassle from the operator. It also provides the ability to minimize human errors.



Low Maintenance 45T End Carriage Overhead Crane Double Hook Off Standard Solutions 0

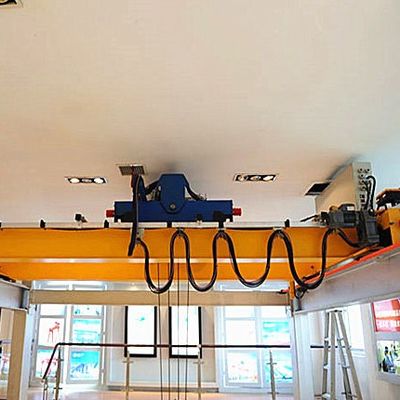

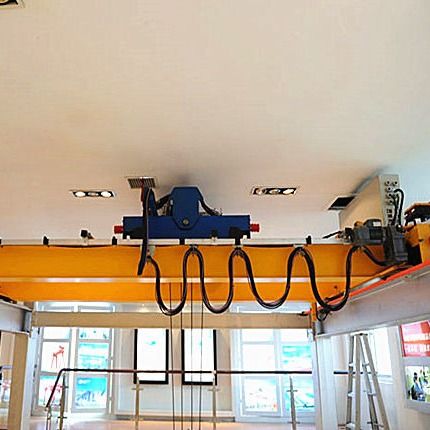

Installation procedure of overhead travelling crane

Low Maintenance 45T End Carriage Overhead Crane Double Hook Off Standard Solutions 1

Low Maintenance 45T End Carriage Overhead Crane Double Hook Off Standard Solutions 2



Package and Delivery





Low Maintenance 45T End Carriage Overhead Crane Double Hook Off Standard Solutions 3
