32 Ton Electromagnetic Beam Double Girder Overhead Travelling Crane High Safety A7

Minimum Order Quantity : 1 set Price : USD 25000-USD 90000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 20 days
Payment Terms : T/T, L/C Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: QD

Detail Information

Type: Double Girder Overhead Crane Main Electrical Parts: CHINT
Color: Yellow,etc Lifting Mechanism: Hoist Trolley,winch Trolley
Power Supply: 3 Phase 380V 50hz Or Request Capacity: 32ton
High Light:

32 Ton Double Girder Overhead Travelling Crane


Electromagnetic Double Girder Overhead Travelling Crane


Electromagnetic double girder eot crane

Product Description

32 ton Electromagnetic Beam Overhead Travelling Crane Double girder High Safety A7

Description of Overhead Travelling Crane


Double girder EOT crane has two main girders between the parallel runway. It has a crab mechanism that travels above both the girders, which run over the rails. The rails with platforms are used to maintain all the parts of the crabs. The double girder cranes have the platform on both sides. This is used for maintenance purposes and platforms for crab maintenance. It consists of foot mounted motors with horizontal gearboxes. It is operated by push-button pendant station, radio remote, or operating cabin mode. In double girder EOT crane, a rotary limit switch is used to calculate the hook traveling and the up and down movement should be controlled accordingly. An additional limit switch is used such as gravity limit switch. The gravity limit switch is used for securing the limit switch working. Double girder EOT cranes have an 8-wheel arrangement, so that wheel load will be less at a particular point. These types of cranes are easy to maintain.


Technical parameter of Overhead Travelling Crane


Capacity (ton) 1 2 3 5 10 16 20
Span (m) 7.5~22.5
Lifting height (m) 6, 9, 12, 18,24,30
Working duty A3
Control way Pendant control or Remote control
Power source 380V 50HZ 3phase
Wheel diameter (mm) 37-70
Electric hoist Lifting and traveling mechanism
Electric hoist model CD1 single speed, MD1 double speed
Lifting speed Single 8 7 3.5
(m/min) Double 0.8 / 8 0.7 / 7 0.35/3.5
Traveling speed (m/min) 20 or 30
Crane traveling mechanism
Traveling speed (m/min) 20 or 30
Motor power (KW) 0.8×2, 1.5×2 2.2×2

Features of Overhead Travelling Crane

As it consists of two main bridges, it becomes a sturdy and robust construction.

It is specifically designed for assisting heavy-duty operations.

It is cost-effective when compared to a single girder crane as it is capable of lifting heavy loads.

It is utilized at any capacity, where a high hook lift is required. Because the hook can be pulled up between the girders.

It has a lifting capacity of up to 250 tons.

It consists of alloy steel, hardened, precision-cut gears.

It consists of foot mounted hydraulic thruster brakes, which is used for the hoist.

It has a full-length platform on the long travel drive of the side girder.



Benefits to using Double Girder EOT Crane


Efficiency—Overhead cranes are more efficient than using a group of workers or tow motors to lift and move material and can work up to 2-3 times faster. Think about how a manufacturer, mill, or warehouse can streamline their processes and procedures by introducing an overhead crane to automate the lifting, maneuvering, and unloading of materials at their facility.

Safety—Another advantage of installing an overhead crane in a manufacturing, assembly, or warehousing facility. Cranes can be used to lift and move materials in extreme environments and can handle corrosive or dangerous materials like hot metals, chemicals, and heavy loads. A workstation or jib crane can be put in place to help workers move heavy objects in a controlled manner and help cut down on repetitive motion injuries and muscle strains.

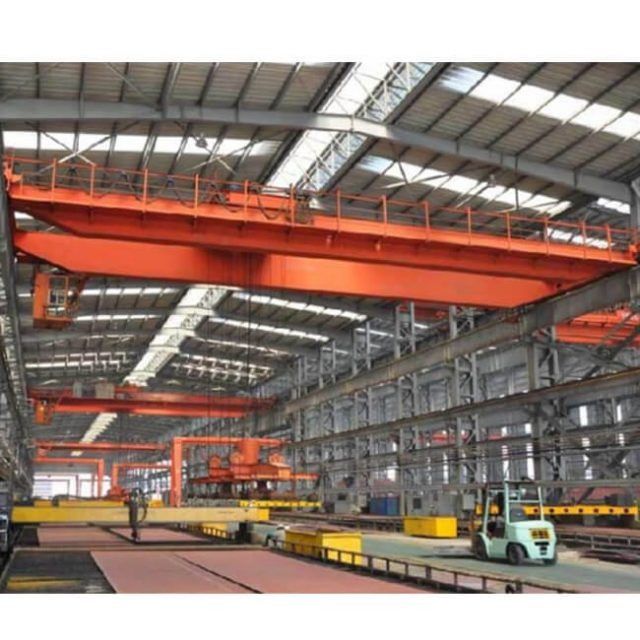

32 Ton Electromagnetic Beam Double Girder Overhead Travelling Crane High Safety A7 0


Installation procedure of overhead travelling crane

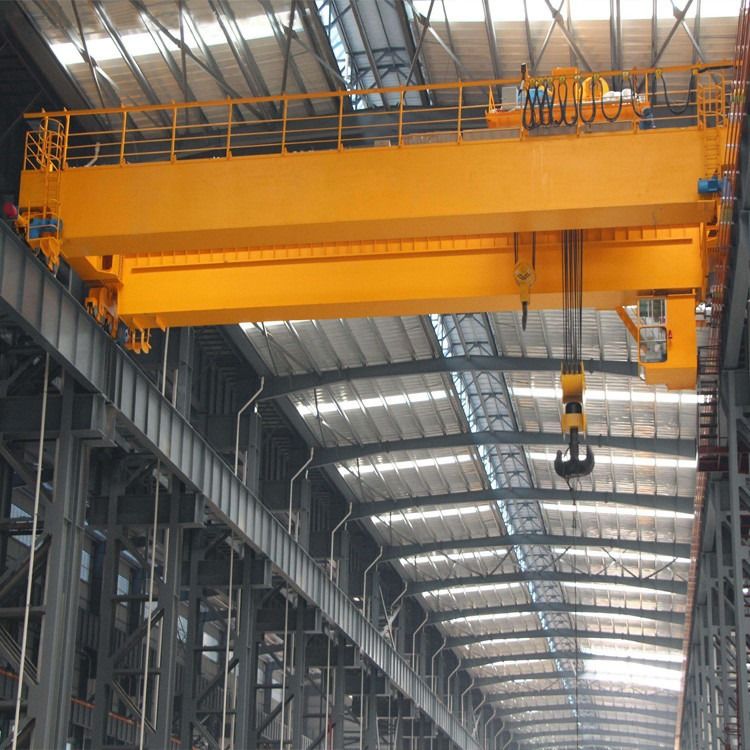

32 Ton Electromagnetic Beam Double Girder Overhead Travelling Crane High Safety A7 1

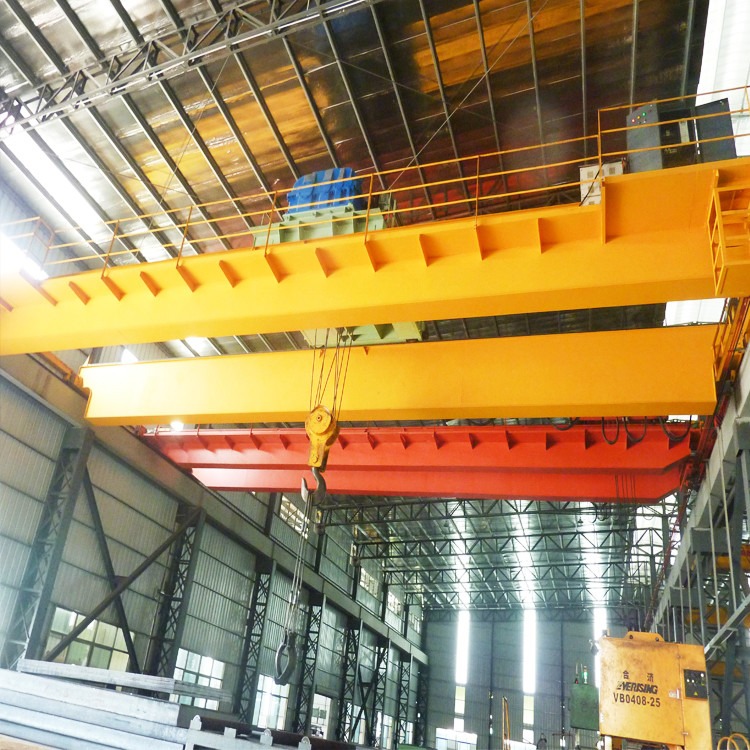

32 Ton Electromagnetic Beam Double Girder Overhead Travelling Crane High Safety A7 2


Package and Delivery

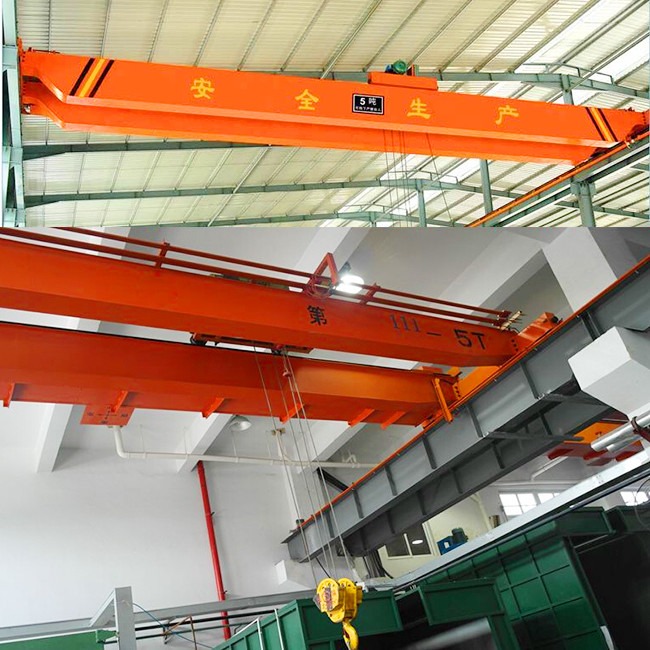

32 Ton Electromagnetic Beam Double Girder Overhead Travelling Crane High Safety A7 3
