High Efficient 120T European Overhead Crane Equipped With C Type Hook

Minimum Order Quantity : 1 set Price : USD8000-USD40000
Packaging Details : High quality standard exported plywood crate Delivery Time : 15-20 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: NLH

Detail Information

Span: 7.5-31m Application: Warehouse And So On,outdoor
Control Method: Wireless Remote Control,cabin Control/wire Rope Remote Control Main Electrical Parts: Schneider,Siemens
Type: Double Girder Overhead Crane Power Supply: 3 Phase AC 380V 50HZ
High Light:

120T European Overhead Crane

,

C Type Hook European Overhead Crane

,

120T double girder overhead crane

Product Description

High Efficient 120T European Overhead Crane Can Be Equipped With C Type Hook



Description of Euro Double girder overhead crane



European Double Girder Overhead Crane has the following advantages compared with the traditional crane:


1. Low height, light weight; small hook limit, large operating range.


Compared with general type bridge crane, crane weight reduced by 15% to 30%, wheel pressure reduced by 15% to 30%, crane height reduced by 20 ~ 30%, which greatly reduces the cost of the plant.


Trolley with compact design, can achieve smaller upper, left and right limits of the hook, greatly increasing the hook work scope.

2. Selection of high-quality components, less maintenance work; mechanisms take finite element analysis, which is safe and reliable.


The crane adopts three-in-one hardened motor and reducer, using steel rolled overall annealing treatment drum group, use of 65Mn forged wheel set, using engineering towline conductive, and crane operation is more safe and efficient.


Steel structure take finite element analysis, to ensure that the crane with lightweight structure, safe and reliable.


3. Transmission mechanism is integrated, with high transmission efficiency, low energy consumption and less failure points.
Each transmission mechanism adopts direct coupling type, reducing transmission links and failure points, improve transmission efficiency, reduce crane energy consumption.



4. Overall Processing, High precision.


Forged wheel set, machining boring assembly.


Overall processing trolley frame after welding, with small welding distortion and high assembly precision.


Overall processing end beams after welding, with small welding deformation and high assembly precision, which will help overhaul.



5. Frequency control, smooth start and braking; hook can adopt anti-sway technology, safer lifting.


All mechanisms using frequency control, smoothly start and braking without impact, increasing security of crane operation and improve productivity.


Electrical anti-sway function can be selected: no swing while hoisting object, precise positioning and automatic reset, improve work efficiency and safety.



Technical parameter of Euro Double girder overhead crane





Capacity T 10/32
Total weight kg 12530 14660 16360 18870 21650 24260 27060
Max. Wheel load KN 167 184 196 206 215 224 233
Rail recommended Model 43kg/m
Total motor power kw 20
Main dimension (mm) Span(m) 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Rail top to crane top H 1900
Rail top to hook center H4 -700
Crane base distance W 1600-2500
Crane width B 5070-5960 5572-6222
Trolley rail distance K 1600-2550
Hook left limitation S1 1100
Hook right limitation S2 1600

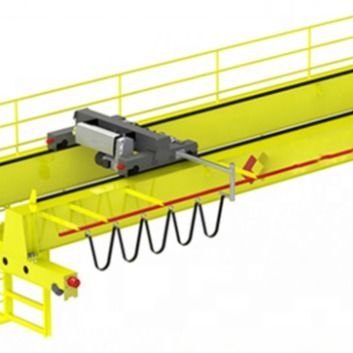

High Efficient 120T European Overhead Crane Equipped With C Type Hook 0















Package and delivery







High Efficient 120T European Overhead Crane Equipped With C Type Hook 1
