100Ton Strong Rigidity European type Double Beam Overhead Crane For Mould Lifting

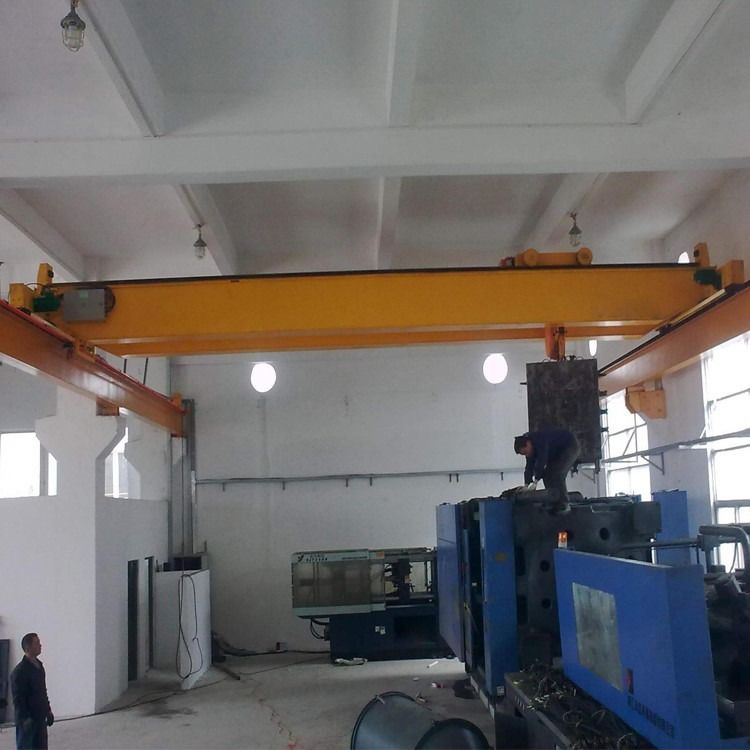

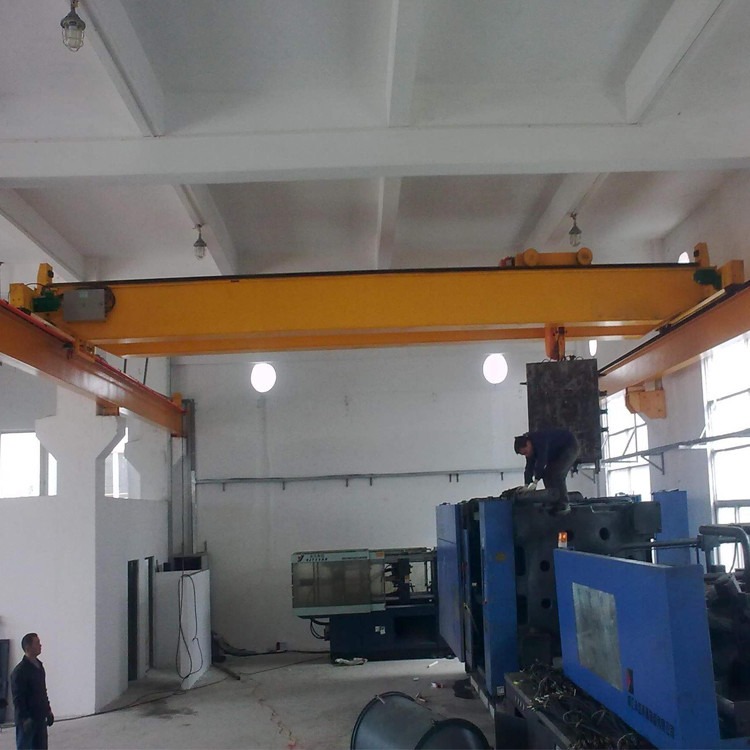

Description of Euro Double girder overhead crane
New style Steel Factory grab overhead crane is mainly used in inside workshop. It is diveded into two working classes: A5 and A6 according to the use grade and load-up condition.There are three kinds of method for entering the platform of cab from the side, from the end and from the top.
Overhead crane is widely used in plants, warehouse, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment. This product has two operational methods, ground or operational room which has open model closed model and can be installed on the left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users, choice under different conditions.
Safety is the most important issue for cranes. To ensure the safety, the following safety devices are equiped. Crane traveling limit switch. Weight overload protection device. Lifting height limit device. Voltage lower protection function. Phase sequence protection function. Emergency stop function. Rain cover for outside hoist, driving units, electric cubicle. Warning indicator: flashing lights and warning sounds. Wireless infra-detector for anti-collusion.
Technical parameter of Euro Double girder overhead crane
| Capacity |
t |
75 |
100 |
160 |
200 |
250 |
320 |
| Span |
S(m) |
10.5~31.5 |
13~31 |
13~31 |
13~31 |
13~31 |
13~31 |
| Lifting height |
m |
6~24 |
6~24 |
6~24 |
6~20 |
6~20 |
6~24 |
| Lifting speed |
m/min |
0.37~3.7 |
0.32~3.2 |
0.25~2.5 |
0.24~2.4 |
0.21~2.1 |
0.2~2 |
| Trolley speed |
m/min |
2.92~29.2 |
2.9~29 |
2.65~26.5 |
2.5~25 |
2.5~25 |
2.4~24 |
| Crane speed |
m/min |
4.8~48 |
5.26~52.6 |
4.67~46.7 |
5.2~52 |
5.2~52 |
4.15~41.5 |
| Work duty |
|
A3~A5 |
A3~A5 |
A3~A5 |
A3~A5 |
A3~A5 |
A3~A5 |
| Track type |
|
QU100 |
QU100 |
QU120 |
QU120 |
QU120 |
QU120 |

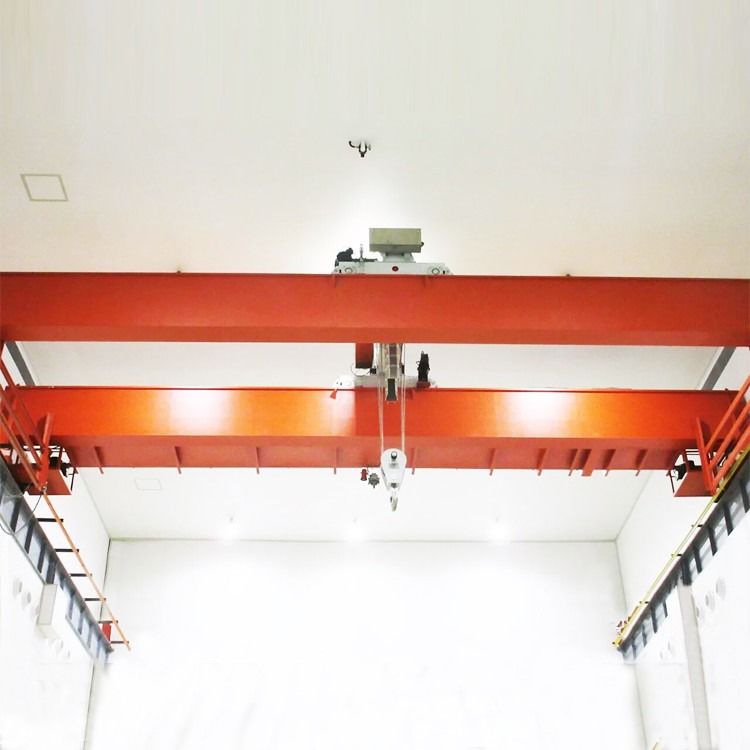

Parts of Euro Double girder overhead crane
European Double Girder Overhead Crane mainly consists of bridge, crane traveling, trolley, driver’s cabin and electrical equipment.

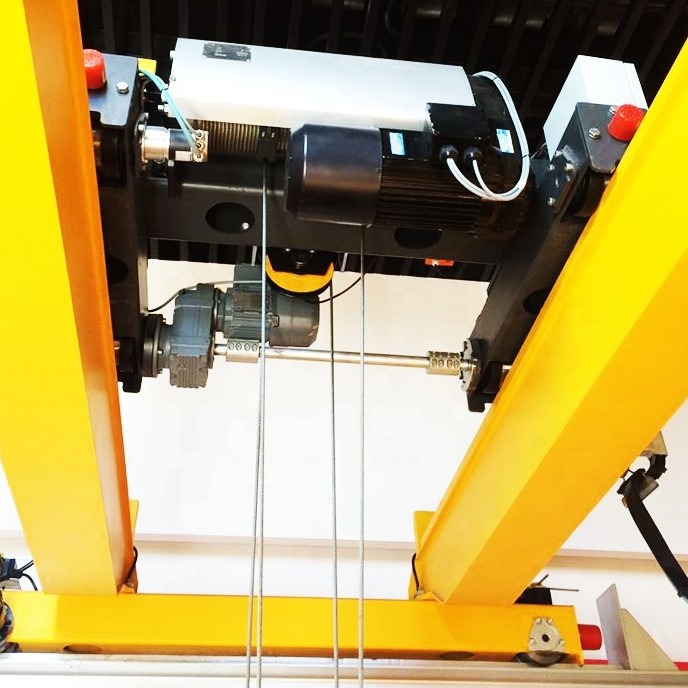

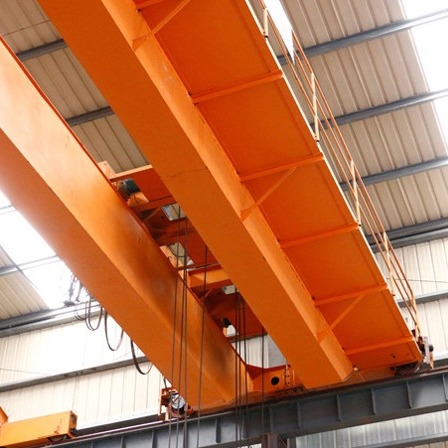

Winch trolley European Double Girder Overhead Crane: trolley equipped with main and auxiliary hoisting mechanism, each using a separate set of transmission system. Main and auxiliary hoisting mechanism not only can independently complete lifting work, but also collaborative complete flipping device work.
Electric hoist trolley European Double Girder Overhead Crane: electric hoist trolley mechanical system mainly consists of ND electric hoist, frequency conversion deceleration traveling motor, driven wheels and other components.
Crane traveling mechanism adopts three-in-one gear motor drive, with simple structure, easy maintenance. Its inverter system can provide smooth acceleration features and a variety of operating speeds, with smooth starting and braking, simple operation and accurate positioning.
Wheel set
Trolley frame, crane end beams and wheel assembly supporting surface adopt overall processing, to ensure that each wheel traveling as a united whole, with high precision of assembly, stable operation, and the wheel set can replaced very convenient, with advanced technology.
Operation mode
Ground operation: press the button on the handle to control all crane mechanisms movements.
Remote control: control crane appropriate mechanism movements by industrial remote control.
Cabin Operation: linkage station of driver’s cabin to control operation of all mechanisms.
Package and delivery
