European Standard Double Beam 75T Overhead Eot Crane

Minimum Order Quantity : 1 set Price : USD150000-500000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 30 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: QDX

Detail Information

Max. Lifting Height: 50 M Certification: ISO 9001:2008, ISO 14001:2004, OHSAS 18001:1999
Feature: Bridge Crane Material: Welded Construction Of Structural Steel
Power Source: 3 Phase 380V 50hz Working Class: A5-A7
High Light:

75T Overhead Eot Crane

,

Double Beam Overhead Eot Crane

,

75T eot overhead crane

Product Description

European Standard Double Beam Overhead Eot Crane 75 T Wireless Remote Control



The product description of European type double girder overhead crane



Double girder electric hoist overhead bridge crane has such as tight dimensions, low building headroom, light dead weight and light wheel pressure.



They are applicable to the transfer, assembly, check and repair as well as load and unload at mechanic processing workshop, subsidiary workshop of metallurgic mills, warehouse, goods yard and power station.



They can also be used instead of common double girder overhead crane at production workshop in light textiles or food industry.



It has two kinds of classification, that is, light and medium.



The working ambient temperature is generally -25-40℃. it has forbidden to work in environment with combustibility, explosive or corrosive media.



Technical parameters of European type double girder overhead crane



Lifting capacity Span Lifting height Work duty Lifting speed Dead weight
5T 6-28M 6-9M M5/FEM2M 5/0.83m/min 1.9-13T
10T 6-28M 6-9M M5/FEM2M 5/0.83m/min 2.5-14T
15T 6-28M 6-9M M5/FEM2M 5/0.83m/min 2.7-13T
20T 6-28M 6-9M M5/FEM2M 5/0.83m/min 2.7-20T
32T 6-28M 6-9M M5/FEM2M 5/0.83m/min 3.6-22T
40T 6-28M 6-9M M5/FEM2M 5/0.83m/min 3.7-24T
Note: Cross travelling speed is 20/5m/min;Long travelling speed is 32/8m/min


Features of European type double girder overhead crane



High Reliability :



1. Use imported motor with insulation grade of F and protection degree of IP54. With overheat alarm.



The motor is shielded by aluminum alloy stretching cover with good heat dissipation performance;



2. Imported reducer from Germany. hardened gears with good bearing capacity, excellent seal without penetration of grease;



3. Main electric components imported from international brands such as: Siemens,



Schneider and ABB etc. with protection degree not lower than IP54;



4. Wheels are forged by 65mn alloy steel with features of wear-proof, anti-fatigue and long service life.



5. Low energy consumption and maintenance free;



6. Whole crane energy saving about 30%;



7. All-in-one transmission mechanism making it work more efficient;



8. Variable frequency control whose high and low rotating speed ratio is 1:10 and work efficiency increases more than 20%;



9. Less and easy maintenance reduces the cost of maintenance;



10. Manufactured by advanced technology and constituted by high quality imported components greatly reducing malfunction and cost;

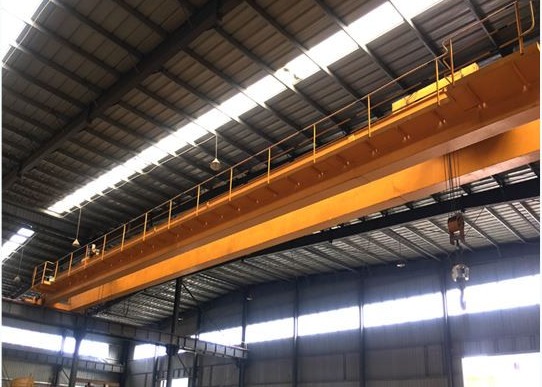

European Standard Double Beam 75T Overhead Eot Crane 0

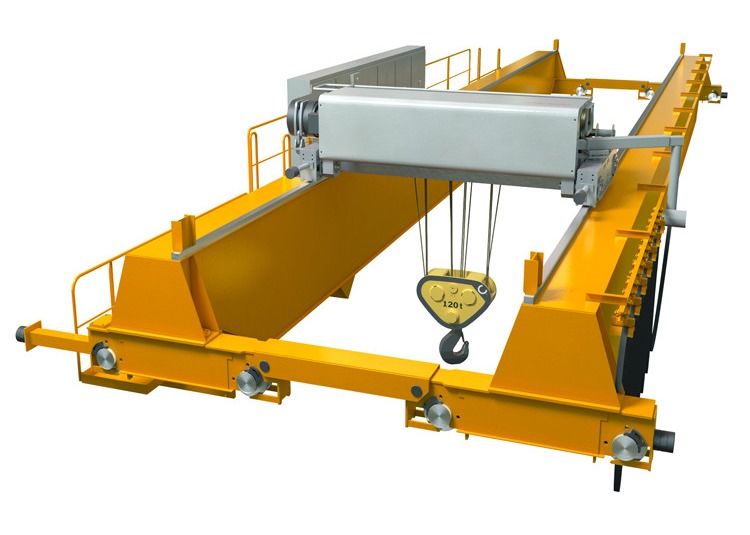

European Standard Double Beam 75T Overhead Eot Crane 1



Details of European type double girder overhead crane



Lighter self weight



Larger working area



Anti-swing systems



High quality parts



Maintenance-free


Crane bridge mainly consists of main beam, end carriages, walkway, trolley conductor bracket, crab rail, service platform, ladder and handrail etc. components.



Crane bridge adopts double beam structure, has enough strength, rigidity and whole stability.



Self weight lower 15-20%



Lower price



Wheel pressure lower 15~30%



Height lower 20%~30%





The packing and shipping:



European Standard Double Beam 75T Overhead Eot Crane 2



FAQ



1. Are your products customized?


Yes, because the working condition is different, all our Silence products are Customized depending on detail requirement!



So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!

2. What’s the information should I provide when inquiry?


The more information that you provided, the accurate solution we can prepare for you!



The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.



3. How many operating methods for my selection?


The standard operating methods we provide is pendent controller with push buttons.



Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick.



You can choose any of them, just tell us!



4. The space of my workshop is limited. Can the crane ok for mine?


For low headroom workshop, we have the Special products. The detailed dimensions please consult our professional engineer.
