Product Description

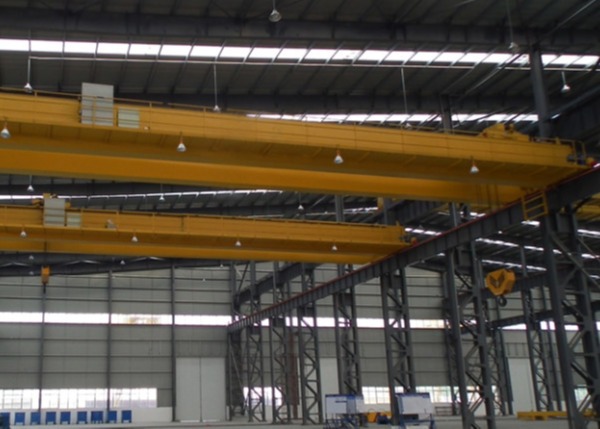

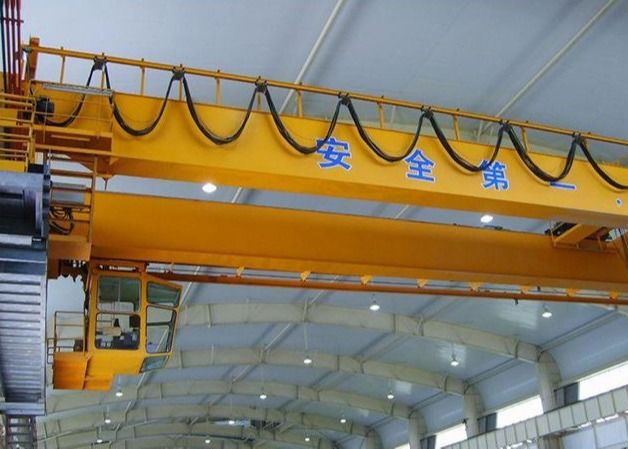

Span 30m Frequency Inverter Type Workshop Cross Travel Two Beam Overhead Crane
General description of double girder overhead crane
The electrically operated double beam bridge type has the vitality disposition lift hook to be suitable for the machine-finishing,the assembly;
The workshop, the metal structure workshop, the metallurgy and the Foundry as well as each kind of warehouse lift the work, general bridge-type hoist crane design manufacture standard
1, GB 3811-83 hoist crane design standard
2, GB 6067-85hoisting machinery safety regulation
3, GB/T 14405-1993 general bridge-type hoist crane
4, GB 10183-83 bridge-type and the portal type hoist crane manufacture and the track installation tolerance general bridge-type hoist crane examination, the inspection standard.
1, JB/T53442-94 general bridge-type hoist crane product quality classifies
2, GB5905-86 hoist crane experiment standard and procedure
3, GB6067-85 the hoist crane safety regulation
4, GB5972-86 hoist crane tool steel wire examination and the abandonment practical standard.
Technical parameter of double girder overhead crane
| Capacity |
t |
5 |
10 |
20 |
32 |
50 |
75 |
| Span |
m |
10.5~31.5 |
| Lifting height |
m |
6~18 |
| Lifting speed |
m/min |
5 |
5 |
4.2 |
4.1 |
3 |
1.9 |
| Trolley speed |
m/min |
19.6 |
20.5 |
20.5 |
20 |
19.1 |
10.5 |
| Crane speed |
m/min |
22.3 |
22.3 |
19 |
17 |
19.4 |
15.4 |
| Work duty |
|
A4~A5 |
| Explosion-proof Grade |
|
ExdⅡBT4, ExdⅡCT4 |
| Track type |
|
P43 |
P43 |
P43 or QU70 |
QU70 or 90*90 |
QU80 or 100*100 |
QU100 |
Product superiority of double girder overhead crane
First, the double beam crane is an intelligent equipment, reserved a variety of functional interfaces can make the function expansion easier;
Second, the double beam crane performance is more reliable, the failure rate is also relatively low, can reduce the use and late maintenance costs, and the service cycle of up to 30 years, no worries.
Single beam crane usually refers to single beam bridge crane.
The main girder of single girder crane bridge is mostly made of I-beam or combination section of steel and steel plate.
Crane trolley is usually made of hand hoist, electric hoist or hoist as lifting mechanism parts.
Three, double beam crane has advanced control technology and get the key (explanation: metaphor things important component) components, can ensure the overall performance of the crane is more reliable, the crane starts, runs smoothly, no impact, has a good quiet effect, can reduce noise (dB) harm.
Single beam crane usually refers to single beam bridge crane.
The main girder of single girder crane bridge is mostly made of I-beam or combination section of steel and steel plate.
Crane trolley is usually made of hand hoist, electric hoist or hoist as lifting mechanism parts.
Fourth, it can also reduce the construction cost of the customer's factory building, make full use of the factory space, improve production efficiency, more compact structure, shorter height.
Packaging and delivery of double girder overhead crane
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source other specials
you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons.
B: remote control with push buttons
C: cabin(space capsule seat) control with joystick.
Choose any type as you like.
Q. Can this type of work in a hazardous environment?
A: Sure! We can customize for you, acid proof or explosion-proof, no problem with that.
Q. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
