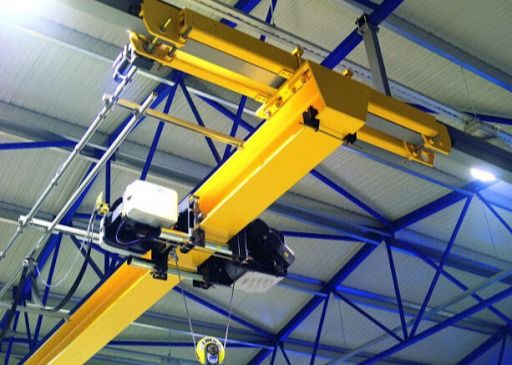

Europe Style Workshop 5 Ton A5 Overhead Traveling Bridge Crane

Minimum Order Quantity : 1 set Price : USD 3000-30000/set
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 15-20 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: HD

Detail Information

Application: Warehouse And So On Capacity: 5 Ton
Crane Feature: European Type EOT Crane Lifting Speed: 8/0.8 M/min
Main Electrical Parts: Schneider Warranty: 12 Months
High Light:

A5 Overhead Traveling Bridge Crane


5 Ton Overhead Traveling Bridge Crane


A5 workshop overhead crane

Product Description

5 Ton Europe Style European Single Girder Workshop Overhead Traveling Bridge Crane

Description of European Type single girder overhead crane


Europe overhead crane advanced designed crane for the low headroom and high lifting height demands. It has many advantages such as:


Strong rigidity, light dead weight, outstanding structure design, long working lift etc. It could save your factory space and investment effectively.


Its technology is advanced and design is based on international standard: DIN (Germany),FEM (Europe), and ISO (International)


The all motions of this overhead crane are double speeds, the lifting motor is double speed type,the cross travelling motor and long travelling motor are controled by frequency inverte.


It could be widely used to handle materials in many industries' workshop and warehouse,such as manufacture processing, warehouse, storage, paper mill, electronics industries workshopand other material handling situation


Crane capcity: 0.5ton-20ton


Crane span: 7.5m-35.5m


Crane lifting: 3m-37m


Working duty: A5


Control mothed: Wireless Remote


Technical parameter of European Type single girder overhead crane

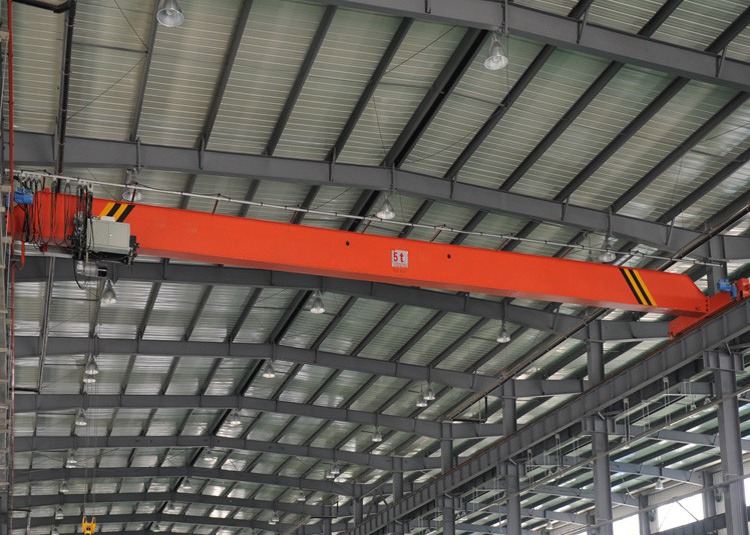

Europe Style Workshop 5 Ton A5 Overhead Traveling Bridge Crane 0

Model NO HD
Condition New
Type Single Girder Crane
Load Capacity 0.5t to 20t
Lifting height 3 ~ 30 m or customized
Cross Speed 0~30 M/Min (VVVF)
Working Class A5-A8
Origin Henan, China
Working temperature -20 ~ 40 ℃
Way to Control Pendant Push Button / Wireless Remote Controller / Cabin
Trademark Silence CRANES
Specification CE, ISO
HS Code 8426112000
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.


Details description of European type single girder overhead crane
01 Hoist & Trolley: Compact structure,Light weight,Small wheel load,Maximium space utilization and high cost effectiveness.
02 End Beam: High flexibility and reliability.
These compact,modular rail-mounted travel units can be connected directly to crane girders and load bearing structures.
03 Crane Wheels: Strong wear and abrasion resistance,modular design,compact structure,high degree of standardization and easy assembling.
04 Crane Remote Control: Secure and dependable communications.
Advances synthesized RF controls with 62 user-programmable channels,add flexibility to frequency management in the field.

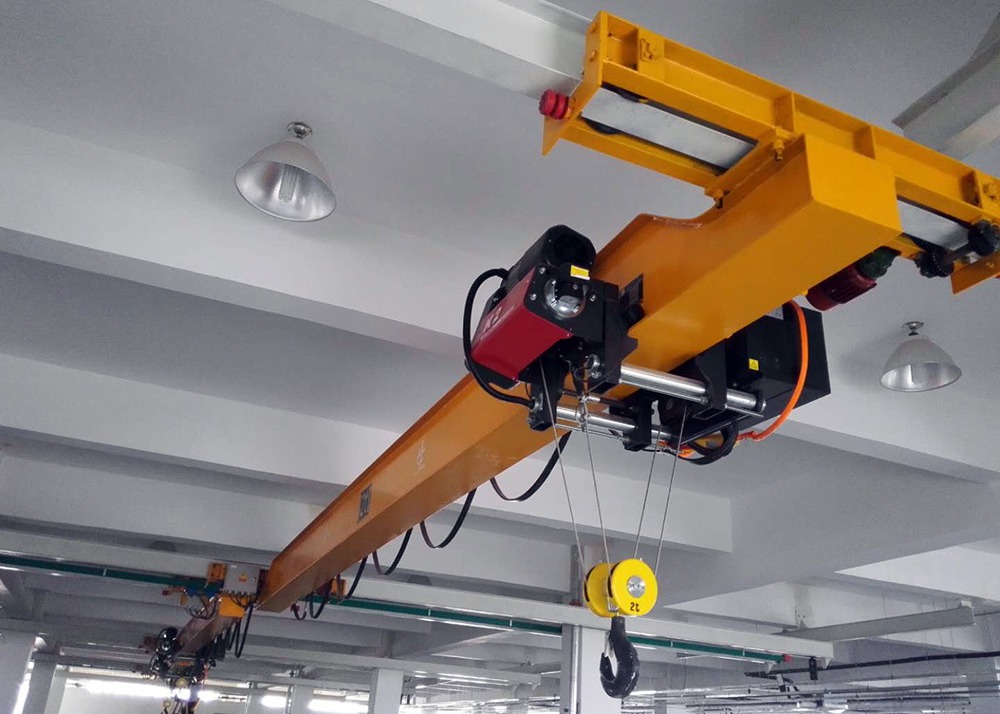

Europe Style Workshop 5 Ton A5 Overhead Traveling Bridge Crane 1


Product Features of European Type single girder overehad crane


1). Single welding box girder

2). DIN/FEM standard deflection

3). Whole length CNC cutting for complete web plate, high deflection accuracy

4). High quality automatic welding and NDT inspection

5). Shot-blasting Sa2.5 for complete girder after welding, stress release

6). High tension bolts mounting between girder and legs, life time safety connection

7). Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55

8). High protection class IP55, F class, 40% ED

9). Excellent driving properties, stepless control, smoothly moving

10). All hoist and crane movements are independent and can be run simultaneously.

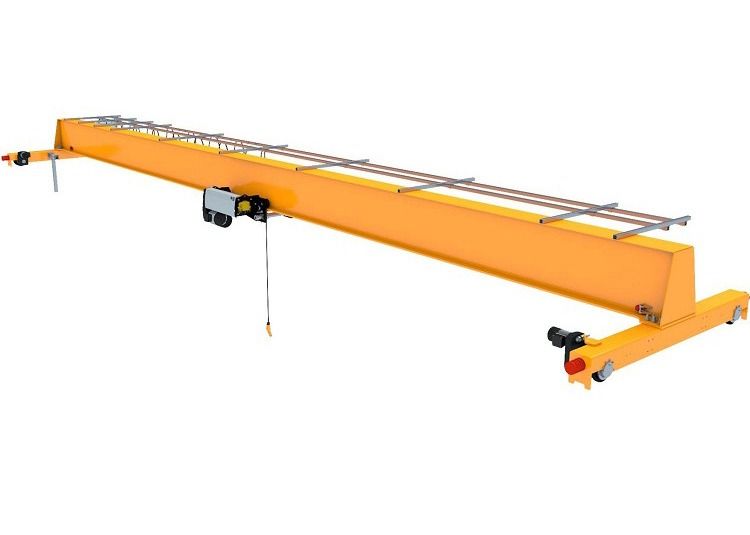

Europe Style Workshop 5 Ton A5 Overhead Traveling Bridge Crane 2


Packing and shipping of European Type single girder overehad crane

Europe Style Workshop 5 Ton A5 Overhead Traveling Bridge Crane 3
