EN 13157 Construction Works 9T G80 Manual Chain Hoist

Minimum Order Quantity : 20 sets Packaging Details : High quality standard plywood box
Delivery Time : 7 days Payment Terms : T/T, L/C
Supply Ability : 100 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: HSH

Detail Information

Name: G80 Manual Chain Hoist Capacity T: 0.25 Ton
Applicable Industries: Office Building Machinery Test Report: Provided
Lift Speed: Manual Load Chain: G80 Steel Load Chain
Feature: High Safety Standard Lift: 1m
High Light:

G80 Manual Chain Hoist

,

9T Manual Chain Hoist

,

Mechanical Chain Hoist

Product Description

Heavy Duty 0.25-9T Lever/ Chain Hoist Block For Manural Lifting Cargoes Best Price


Product description:





1. Adopting the deep groove ball bearing of load chain sprocket , pulling is smaller.



Equipped with needle bearing for supporting driving shaft it to increase the mechanical advantage.



2. Adopting double pawl brake system and double chain guide roller system, operation is more safe and stable.



3. The top and bottom hook are made of forged high strength alloy, accomplished by heat treatment process.



The hooks also have three stretch indicators.




Features:


1) SAFE,RELIABLE IN OPERATION WITH MINIMUM MAINTENANCE.



2) HIGH EFFICIENCY AND SMALL HANDPULL.



3) LIGHT WEIGHT AND EASY HANDLING.



4) SAFETY FACTOR:4 TO 1



5) FATIGUE TESTED AT 1.5TIMES OF WORKING LOAD LIMIT TO 2000 CYCLES.



6)STANDARD: EN 13157.



Product Parameter



Model Code LEV0250LS LEV05001LS LEV0800LS LEV1600LS LEV3200LS LEV6300LS LEV9000LS
Capacity T 0.25 0.5 0.8 1.6 3.2 6.3 9
Standard Lift m 1 1.5 1.5 1.5 1.5 1.5 1.5
Running Test Load T 0.375 0.75 1.2 2.4 4.8 9.45 13.5
Effort To Lift Rated Load N 282 256 250 373 395 398 400
Falls of Load Chain 1 1 1 1 1 2 3
Load Chain Diamater mm 4x12 5x15 6x18 7x21 10x30 10x30 10x30
A mm 92 105 157 178 206 206 206
B mm 71 78 94 104 118 118 118
C mm 85 80 140 145 199 230 342
O mm 31 31.5 37.5 42.5 50 65 85
E mm 25 25 26 31 37 46 55
Min. Distance between hooks H 245 330 365 400 520 595 800
Length of Lever Handle D 160 300 245 325 405 405 405
Net Weight Kg 1.8 4 7.9 10.9 14.4 35 50
Extra Weight Per Meter of Extra Lift Kg 0.41 0.52 0.8 1.1 2.2 4.4 6.6





Maintenance method:


1. After use, the gourd shall be cleaned and coated with anti-rust grease and stored in a dry place.


2. The maintenance and overhaul should be carried out by those familiar with the hoist mechanism to prevent those who do not understand the



performance principle of the machine from dismantling at will.


3. Gear installation shall be operated according to the drawing.


4. When installing the groove nut, turn the hand wheel clockwise first, so that the ratchet wheel and friction plate are pressed on the brake air seat



and then the groove nut is installed.


5. After cleaning, inspection and overhaul of the hoist, no-load and heavy-load tests should be carried out to confirm that the hoist is working



normally, automatic and reliable before crosslinking.The friction surface of the brake must be kept clean

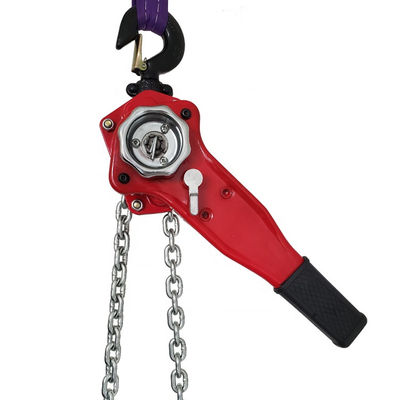

EN 13157 Construction Works 9T G80 Manual Chain Hoist 0

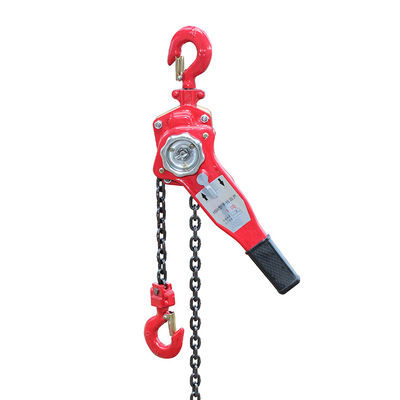

EN 13157 Construction Works 9T G80 Manual Chain Hoist 1



EN 13157 Construction Works 9T G80 Manual Chain Hoist 2



Workshop scene
EN 13157 Construction Works 9T G80 Manual Chain Hoist 3

Shipping and packaging

EN 13157 Construction Works 9T G80 Manual Chain Hoist 4
