EN 13157 Construction Works 9T G80 Manual Chain Hoist
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||20 sets||Packaging Details :||High quality standard plywood box|
|Delivery Time :||7 days||Payment Terms :||T/T, L/C|
|Supply Ability :||100 sets|
|Place of Origin:||China||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||HSH|
|Color:||Yellow Or As Required||Lift Speed:||Hand Power|
|Marketing Type:||New Product 2020||Test Load:||1.5 Times|
|Applicable Industries:||Construction Works||Hook:||With Caged Roller Bearing|
1.5m Manual Chain Hoist,
3T Manual Chain Hoist,
Gear Rotation Steel Chain Hoist

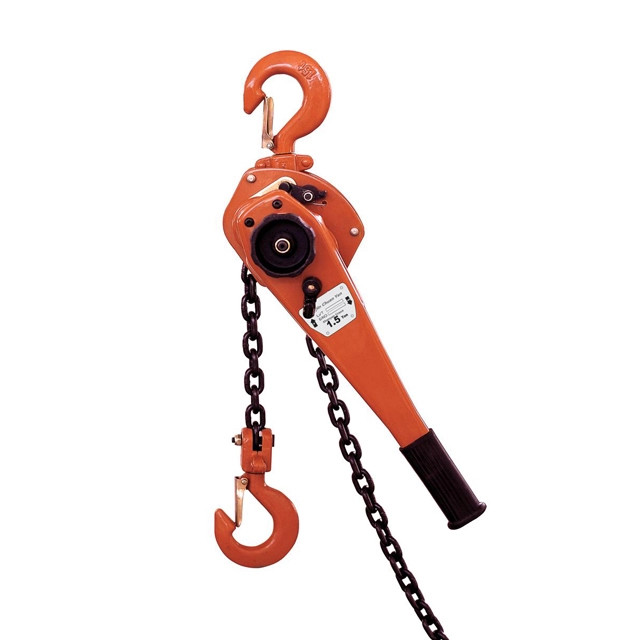

Silence Brand 3T 1.5m Manual Lever Chain Hoist With Straightforward Controls
Hand-pulling hoist is suitable for factories, mines, construction sites, docks, transportation and other occasions, is an ideal tool for equipment
installation, cargo lifting, object fixation, binding and traction, especially traction at any Angle and in the narrow site, open work and no power
supply, more show its superiority.Hand lever hoist is new, efficient, safe and durable, with three functions of lifting, drawing and tensioning.The
main rated lifting weight of lever hoist is 250 kg, 500 kg, 750 kg, 1500 kg, 3000 kg, 6000 kg 9000 kg.
1. All structural steel
2. Super alloy chain
3. All for the gear rotation
4. Gear and shaft rotation place have bearing or bushing
5. The surface of the product after spray treatment
6. Professional alloy hooks can meet the overload of the product
7. The product can meet the rated load 150% of the weight
Key points of operation:
1. The hand lever hoist can fix the hoist hook and the fixed object reliably, and the chain hook and the heavy object to be lifted can be hung
2. Lift the heavy weight with the hand lever hoist.Turn the knob to the "up" of the position card, and then reciprocate the handle.
As the handle reciprocates, the weight rises steadily.
3. Drop the weight of lever hoist.Turn the knob to the "down" position on the indicator, and then pull the handle back and forth.
The weight will descend smoothly with the handle pulled.
4. Adjust the position of the lifting hook of the hand lever hoist.When there is no load, turn the knob to "0" on the indicator, and then turn the
handwheel to adjust the upper and lower positions of the chain hook.It is a pawl to release the ratchet, which can be used to pull the chain
conveniently and quickly to adjust the position of the chain hook.
|Capacity/T||Standard Lift/M||Running Test Load/T||A/MM||B/MM||C/MM||E/MM||Load Chain Diameter/MM|
