Electric Hoist Fixed 5 Ton Column Slewing Swing Jib Crane

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth. Delivery Time : 15 days
Payment Terms : L/C, T/T Supply Ability : 1 set
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: BZ

Detail Information

Brand Name: Silence Brand Hoist Mechanism: Electric Hoist
Buffer: Polyurethane Materials Weight Overload Protector: Included
Limit Switch: Included Rated Loading Capacity: 0.25~16ton
High Light:

Column Swing Jib Crane


Slewing Swing Jib Crane

Product Description

Best Price Electric Fixed 5 Ton Column Slewing Swing Jib Crane Design Manufacture



Product description

BZ type column cantilever crane is a cost-saving comprehensive processing system. In some cases, this processing equipment is usually the most economical solution.


This applies to storage yards, loading ramps or buildings where other equipment cannot be installed due to structural restrictions.

BZ type column cantilever crane (maximum weight 1000kg)

Slewing cranes are characterized by high load capacity and abduction relative to their own weight.


The light weight allows the cantilever to move easily, and the use of hollow section rails as crane beams can provide very low moving force.

BZ type column cantilever crane (up to 2000 kg)

Lightweight design and low headroom boom make this column slewing boom crane suitable for general-purpose applications up to 2000 kg in the medium load range.

BZ type column cantilever crane can also adopt low headroom design

The lower headroom size leads to a standard design with a 290 mm increase in lifting height.


Whether it is for low-altitude space applications, modernization measures or changes in building use, our "short" units are the perfect solution in many situations.

Product advantages

1. Stable base: fixed with multiple chemical expansion screws, not easy to rust, increase the force area, and ensure safety.

The bearing surface varies with tonnage.

2. Rotation angle: The rotation angle can be 360 ​​degrees to meet the needs of different space environments.

3. Smooth operation, low noise: The machine runs smoothly, with low noise, flexible operation, and convenient installation and use.

4. Energy-saving, energy-saving, time-saving and labor-saving: small floor space, convenient operation and maintenance.

It is an energy-saving material lifting equipment.

Use maintenance techniques

1. The operator shall strictly abide by the crane operating regulations and shall not overload it.

2. The terminal baffle is not allowed to be used as a normal parking method.

3. The chain or steel cable of the heavy object must be strong enough and fastened firmly.

4. Lifting and moving of heavy objects should be carried out in a vertical state.

It is prohibited to use electric hoist to drag or forcibly lift buried heavy objects.

5. It is strictly forbidden to stand on the top to lift heavy objects, and to walk on the bottom.

6. After work or rest, do not hang heavy objects in the air.

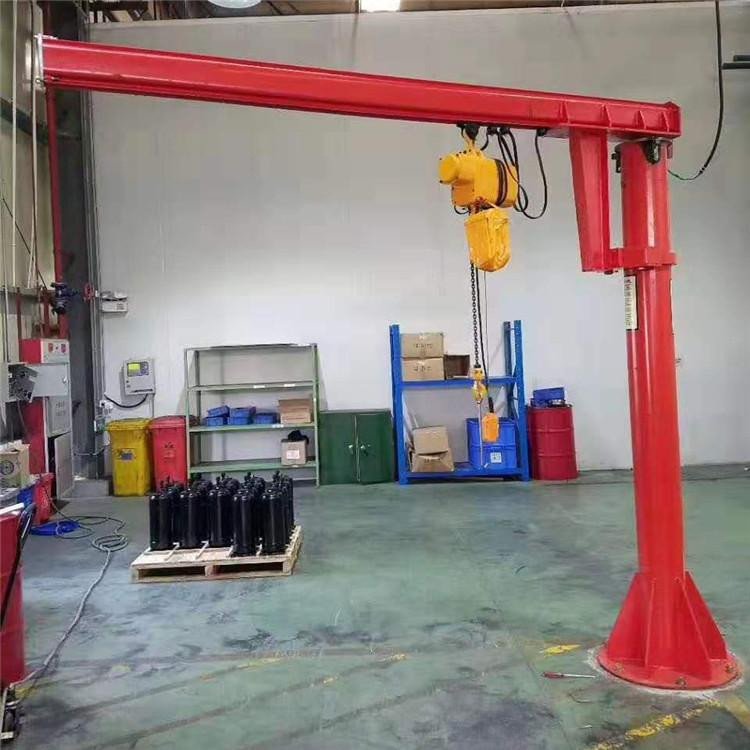

Electric Hoist Fixed 5 Ton Column Slewing Swing Jib Crane 0



Technical parameters

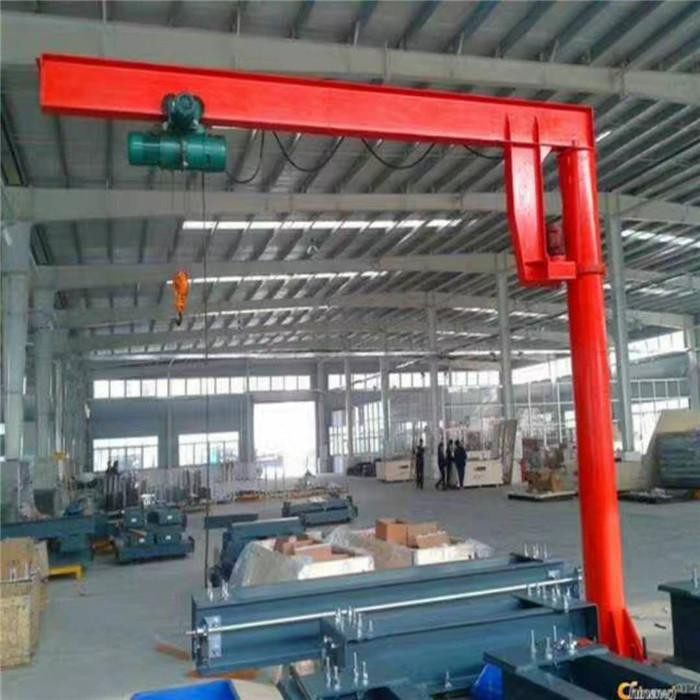

Electric Hoist Fixed 5 Ton Column Slewing Swing Jib Crane 1

Model BZ0.5 BZ1 BZ2 BZ3 BZ5
Lifting capacity T 0.5 1 2 3 5
Max. Lifting height M 3 3 3 4 4
Max. Horizontal throw M 2.6 3-4 2.9-3.9 3.8 3.7
Max. Radius of gyration M 3.6 4-5 4-5 5 5
Max. Rotation moment T/M 3 6 12 18 27
Angle of revolution Degree 360
Lifting speed Normal m/min 8(4)
Slow m/min 0.8(0.4)
Traveling speed m/min 20
Angle of revolution speed m/min 1 0.75 0.7 0.9 0.6

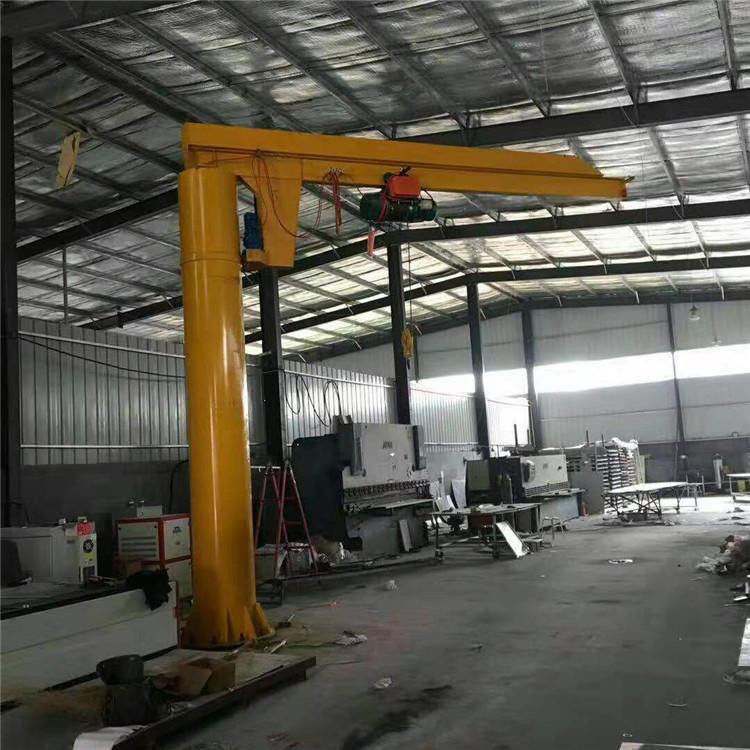

Electric Hoist Fixed 5 Ton Column Slewing Swing Jib Crane 2
