Electric Hoist 5 Ton Cantilever Column Jib Crane

Minimum Order Quantity : 1 set Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth.
Delivery Time : 15 days Payment Terms : L/C, T/T
Supply Ability : 5 sets
Place of Origin: CHINA Brand Name: Silence
Certification: ISO CE Model Number: BZ

Detail Information

Control Method: Pendent & Remote Product Type: Jib Crane
Payment: Advance Span: As Your Working Radius
Lifting Trolley: Electric Hoist Crane Working Radius: By Your Demand
High Light:

Cantilever Column Jib Crane


5 Ton Jib Crane

Product Description

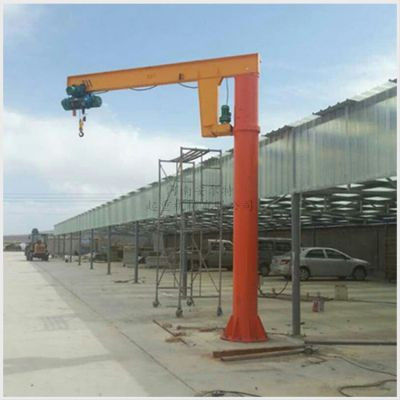

Silence Brand Cantilever Column Jib Crane 5Ton Price Used For Building Material Shops



Product presentation


BZD type electric rotary cantilever crane is model CD1 and MD1 electric hoist supporting the use of a crane, the crane by the post, rotating arm rotary drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects.


Fixed column rotary arm crane is composed of column device, rotary device, rotary arm device and loop chain electric hoist, which mainly includes upper column, lower column, main beam, main beam pull rod, lifting mechanism (loop chain electric hoist), rotary mechanism, electrical system, ladder and maintenance platform.


The lower end of the column is fixed on the concrete foundation, and the rotary arm can be rotated according to the user's demand.The turning part is divided into manual turning and electric turning.The loop chain electric hoist is installed on the swing arm track for lifting heavy objects.





BZ type pillar jib crane has the advantages of unique structure, high safety, reliability, high working efficiency, energy saving and time saving, flexible operation, etc.

Compact Design:

The compact structure design makes pillar jib crane light in dead weight and excellent in work performance, improves space utilization rate and narrows hook operation distance to the maximum intently. The best material handling solution for your applications.

Smooth, Fast Loading, excellent performance:

Stepless frequency conversion control system is installed to the crane and trolley, which make pillar jib crane brake stably, locate accurately, perform reliably, and travel steadily, position quickly, and solve the problem of swing of loads.

Safer, Reliable, Using Free Maintenance Design:

Best technology is adopted which makes the frequent operations safe and efficient. Perfect braking systems can largely improves pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times. Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.



Cantilever crane composition:

The cantilever crane is mainly composed of mechanical, electrical and metal structures.


1.1 Mechanical part

It is composed of main lifting mechanism, sub-lifting mechanism (above 15T), small car running mechanism and big car running mechanism.


Includes: motor, coupling, transmission shaft, brake, reducer, drum and wheel, etc.

1.2 Metal structure

It is mainly composed of bridge frame (main beam, end beam, railing, beginning, small array track), driver's cab and trolley frame.

Electric Hoist 5 Ton Cantilever Column Jib Crane 0

1.3 Electrical part

Electrical equipment and electrical wiring, including bridge Diao power plant and institutions starting, speed control, reversing, brake and stop the control system.


Electric Hoist 5 Ton Cantilever Column Jib Crane 1


Technical parameters

Electric Hoist 5 Ton Cantilever Column Jib Crane 2

Lifting Capacity (T) 0.25 0.5 1 2 3 5
Maximum radius of rotation Rmax(mm) 4500 4500 4500 4000 4000 4000
Minimum radius of rotation R/min(mm) 800 (manual operation)
1050 (motor-driven)
900 (manual operation)
1140 (manual operation)
1380(motor-driven) 1400(motor-driven)
Lifting height h(mm) Generally 3000
Total height H(mm) 4180 4200 4280 4700 4950 5150
Arm Length L(mm) 4950 4950 5000 4570 4600 4650
Lifting speed(m/min) 7.1 6.8/2.3 6.9/2.3 6.8/2.3 8/0.8 8/0.8
Horizontal speed (m/min) General speed 20/low speed1~10 variable frequency
Rotation angle 180°,270°,360°
Voltage 220~460V 50/60HZ 3PH





Modern industry Production line, Assembly line of machining, Automobile industry, shipbuilding and Material lifting and warehouse, wharf, Laboratory.


It`s an optimal lifting equipment for enterprise to improve work efficiency and working conditions.

1. The capacity: _____ton.

2. The lifting height: ____m.

3. The arm length: ___m.

4. The power supply: ____P____V____Hz.

5. The working condition?

6. The crane, informs the for?



Use and maintenance:

1. Operators shall strictly abide by the crane operation rules, and overload use is not allowed.

2. Terminal baffles are not allowed as a common method of parking.

3. The chain or steel rope binding the heavy objects must have sufficient strength and be tied firmly and reliably. The rope or chain should be padded around the sharp Angle of the heavy objects.

4. The lifting and moving of heavy objects should be carried out in a vertical way. Electric hoist is prohibited to drag or forcibly lift heavy objects buried in the ground.

5. Lifting heavy objects is strictly prohibited above people, pedestrians are strictly prohibited below.

6. Heavy objects should not be suspended in the air after work or during rest.

7. Every six months, accumulations on the lower wing surface of the beam (at the walking track), rack objects and rack paint shall be rebrushed or rebrushed according to the peeling situation of the rotating parts.



Electric Hoist 5 Ton Cantilever Column Jib Crane 3


Packaging and shipping


Electric Hoist 5 Ton Cantilever Column Jib Crane 4
