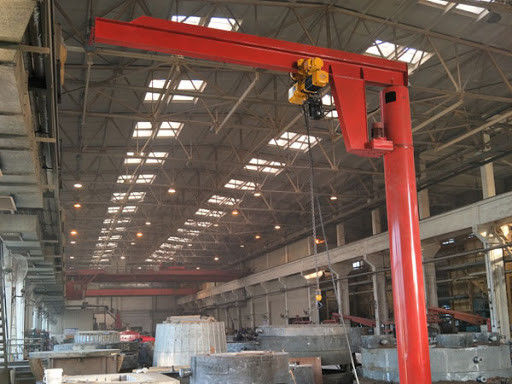

Light Capacity Jib Crane 5 Ton Pillar Column Mounted 360 Degree Swing Machine



Product presentation

Column mounted jib crane is a kind of crane that fixed on the ground. Its operation area is circular due to its has a rotatable cantilever. Combined with hoist unit like electric hoist, chain hoist, chain block, it can realize transportation of cargos in its coverage.


Buy stand column jib crane for workshop has the advantages of simple structure, convenient operation, small occupation space and large working range.


And was widely used in machinery manufacturing, automotive, shipbuilding and other modern industrial production lines, assembly lines and warehouses, docks, laboratories and other materials handling operations.


It Is an ideal lifting equipment for improving work efficiency and working conditions for the enterprise.


Crane install


1 . Column installation:


Lift the column vertically. Set all bolts in foundation right through bolt holes on bottom flange of the column. Then adjust column verticality and tighten all nuts.


2. Arm/jib/cantileverinstallation:


Before installation, lifting hoist should be installed on the arm/jib/cantilever and fixed.


Aligning shaft of column to turntable hole at end of jib/arm, then assemble arm and column together slowly.


After parts are in place, tighten the fixing bolts. Then install the power supply ring.


Test beam rotation with a rope and rotating should be flexible without jamming and abnormal phenomenon.


3.Drive unitinstallation:


Make cycloid reducer match with ring gear on column. Make sure that drive gear meshes with large ring gear, then fixed the reducer to flange by bolts.



Safty device in Jib Crane:


1) Overload Limit Switch

2). Rubber Buffers

3).Electric Protective Devices

4).Emergency Stop System

5).Voltage Lower Protection Function

6). Current Overload Protection System

7). Rail Anchoring

8).Lifting Height Limit Device


12m Span 360 Degree Swing 5T Pillar Mounted Jib Crane 012m Span 360 Degree Swing 5T Pillar Mounted Jib Crane 1


Technical parameters

12m Span 360 Degree Swing 5T Pillar Mounted Jib Crane 2

Model BZ0.5 BZ1 BZ2 BZ3 BZ5
Lifting capacity T 0.5 1 2 3 5
Max. Lifting height M 3 3 3 4 4
Max. Horizontal throw M 2.6 3-4 2.9-3.9 3.8 3.7
Max. Radius of gyration M 3.6 4-5 4-5 5 5
Max. Rotation moment T/M 3 6 12 18 27
Angle of revolution Degree 360
Lifting speed Normal m/min 8(4)
Slow m/min 0.8(0.4)
Traveling speed m/min 20
Angle of revolution speed m/min 1 0.75 0.7 0.9 0.6




According to your needs, we carry out professional customization, enquiries to provide technical parameters:

1. The capacity: _____ton.

2. The lifting height: ____m.

3. The arm length: ___m.

4. The power supply: ____P____V____Hz.

5. The working condition?

6. The crane, informs the for?
