Luffing 270° Pillar Mounted Jib Crane Span 4.5m~6m
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||USD2000-USD10000|
|Packaging Details :||Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth.||Delivery Time :||15 days|
|Payment Terms :||L/C, T/T||Supply Ability :||5 sets|
|Place of Origin:||CHINA||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||BZD|
|Certification:||ISO9001||Item:||Model Column Mounted Jib Crane|
|Color:||Customised||Power Source:||3 Phase 380V 50hz|
|After-sales Service Provided:||Online Support||Lifting Mechanism:||Elctrical Hoist|
Slewing Pillar Mounted Jib Crane,
10 Ton Jib Crane

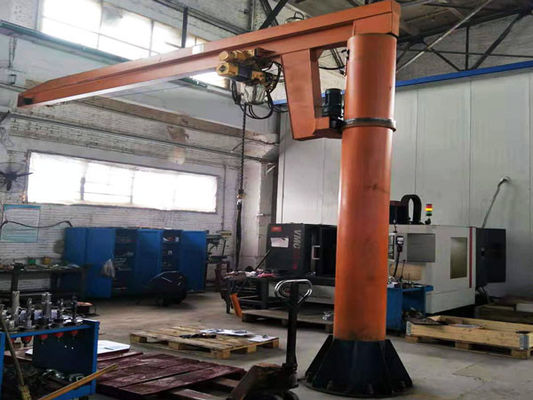

10 ton Chinese supplier Free Standing Pillar Column mounted slewing Jib crane
Jib crane is used with PK type electric chain hoist or CD, MD type electric hoist. It consists of column, swing jib, electric hoist, drive device and electrical control system.
The bottom of column is fixed on the concrete foundation by the anchor bolts, driving device is driven by the motor to rotate swing jib, and the electric hoist reciprocates and runs on swing jib.
Buy stand column jib crane for workshop has the advantages of simple structure, convenient operation, small occupation space and large working range.
And was widely used in machinery manufacturing, automotive, shipbuilding and other modern industrial production lines, assembly lines and warehouses, docks, laboratories and other materials handling operations.
It Is an ideal lifting equipment for improving work efficiency and working conditions for the enterprise.
1. Column using seamless pipe,main beam use I-beam or KBK beam.
2. Rotation can be manual or motorized.
3. Hoist can be equipped with electric wire rope hoists, electric chain hoists or manual hoists.
4. Unique structure, safe and reliable, high efficiency and flexible.
5. Can be customized according to client’s requirements.
6. Easy installation.
Using maintenance technology
1. Operators shall strictly abide by the operation rules of the crane, and overload is not allowed.
2. Terminal baffle is not allowed to be used as the normal parking method.
3. The chain or steel rope of the heavy object must be strong enough and securely tied.
4. Lifting and moving of heavy objects shall be carried out in the vertical condition.
It is prohibited to drag or forcibly lift heavy objects buried underground with electric hoist.
5. It is strictly forbidden to stand on the top of lifting heavy objects and strictly forbidden to walk on the bottom.
6. Do not hang heavy objects in the air after work or rest.
|Max. Lifting height||M||3||3||3||4||4|
|Max. Horizontal throw||M||2.6||3-4||2.9-3.9||3.8||3.7|
|Max. Radius of gyration||M||3.6||4-5||4-5||5||5|
|Max. Rotation moment||T/M||3||6||12||18||27|
|Angle of revolution||Degree||360|
|Angle of revolution speed||m/min||1||0.75||0.7||0.9||0.6|
According to your needs, we carry out professional customization, enquiries to provide technical parameters:
1. The capacity: _____ton.
2. The lifting height: ____m.
3. The arm length: ___m.
4. The power supply: ____P____V____Hz.
5. The working condition?
6. The crane, informs the for?
