5 Ton Single Girder Overhead Crane , Light Duty Bridge Crane Small Volume

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : High quality standard exported plywood crate Delivery Time : 15-20 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: LX

Detail Information

Feature: Bridge Crane Warranty: 12 Months
Condition: New Span: 7.5-31.5m
After-sales Service Provided: Online Support Control Method: Wireless Remote Control
High Light:

single beam overhead crane

,

single girder underslung crane

Product Description

5 Ton Light Duty Suspension Hanger LX Model Bridge Overhead Crane Price

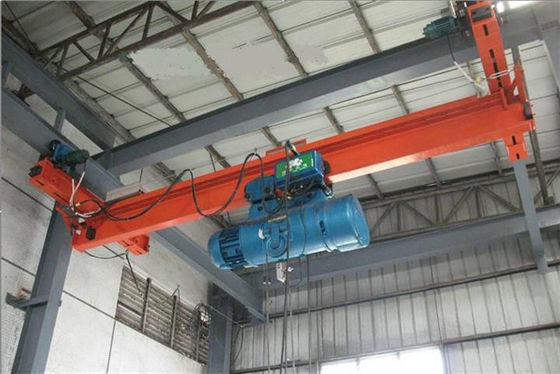

Description of single girder overhead crane

Single girder overhead crane and CD1, MD1 model electric hoist are used together as a complete set. It is a light duty track traveling crane with trajectory which applies to and used at machinery assembling sites and warehouses, this product adopt ground controlling and works at a temperature of -20℃ --+40℃ . It is prohibited to use the equipment at combustible ,explosive or corrosive environment.



Technical parameter of single girder overhead crane

Loading capacity 0.5 ~ 32t
Lifting height 3 ~ 30 m or customized
Lifting speed Vary with lifting capacity, or customized.
Span 7.5~31.5 m
Lifting mechanism Wire rope hoist or electric chain hoist
Working class A3 ~ A5
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC -36 / 48V
Motor protection class IP54
Control way Cabin, wireless remote, pendant push button.
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied



Advantage of single girder overehad crane

1. The small wheel pressure and small volume can reduce the investment in the preliminary works such as the factory building.
2. Using high-quality components can reduce failure rate and maintenance costs.
3. Low consumption of total power can reduce the costs, it had remakeable energy-saving effect.
4. Variable Frequency control make cranes run smoothly.
5. Standardize the whole crane coninguration to make the whole machine more stable.
6. Real-time security monitoring while crane running.
7. The networking and automation of electric part, such as HIM human-computer interface, remote management of internet of things, electronic anti-shake function and automatic correction function and ect.



Configuration of single girder overehad crane

1. Lifting motors(ABM)
2. traveling motors ABB, Siemens, (Three-in-one type)
3. Electrics are Schneider,
4. SKF bearings



Safety feature of single girder overehad crane

1. Weight overload protection device
2. Top quality durable polyurethance buffer
3. Crane traveling limit switch
4. Low voltage protection function
5. Emergency stop system
6. Current overload protection function
7. Warning lights
8. Weight overload protection device



Q&A

1. What's information should I provide to get the price?

More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.

2. Which kind crane can you provide?

Weihua is a famous leading manufacturer with experienced designers, engineers and a 600- people R&D team to provide all kinds crane with customized parameters.

3. What services can you provide?

We have a complete pre-sales&after-sales service system, and our engineers are available overseas. And we also provide training for your crane operators.

4. Which brand are the accessories and electronic components in your cranes?

We have a long term cooperations with ABB, Siemens, Schneider, , etc. And we have world-leading processing machines which are imported from Japan and German.

5. Do you provide crane spare parts?

Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, enclosed busbar and so on.

5 Ton Single Girder Overhead Crane , Light Duty Bridge Crane Small Volume 0

5 Ton Single Girder Overhead Crane , Light Duty Bridge Crane Small Volume 1

5 Ton Single Girder Overhead Crane , Light Duty Bridge Crane Small Volume 2
