3T 5T 10T Single Girder Overhead Crane , Grab Bridge Crane Strong Bearing Capacity

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : High quality standard exported plywood crate Delivery Time : 15-20 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: LDZ

Detail Information

Warranty: 1 Year Crane Speed:: 3-30mmin
Material: Q345 Steel Plate Lifting Speed: 8,0.8/8m/min
Span: 10.5 M-31.5 M
High Light:

single girder bridge crane

,

single girder underslung crane

Product Description

LDZ Type 3t 5t 10 Ton Single Girder Grab Bucket Bridge Crane For Sale Price

Description of single girder overhead crane



Grab bridge crane is widely used for hoisting of common goods in various factories and mines.


Wheel base determination principle


The principles for determining the wheel base of grab bridge crane are as follows:


(a) it can meet the stability requirements of gantry along the crane track direction;


(b) the physical dimensions of the cargo shall be able to pass through the flat steel frame of the supporting legs;


(c) pay attention to make the wheel base B and span S into a certain proportion, generally take wheelbase B= (1/4 -- 1/6) S.



Application:


1. Grab bridge crane is widely used for loading, unloading and transportation of bulk materials in power plants, freight yards, workshops and docks.


2. Grab bridge crane cranes are all heavy duty working system.


3. All the mechanisms of grab bridge crane are operated in the driver's cab, and the directions to enter the platform door of the cab are: end in, side in and top in.


4. The rated lifting weight of grab bridge crane includes the weight of grab.


5. There are two kinds of parallel vertical girder in the opening direction of grab.



Technical parameter of single girder overhead crane

Loading capacity 0.5 ~ 32t
Lifting height 3 ~ 30 m or customized
Lifting speed Vary with lifting capacity, or customized.
Span 7.5~31.5 m
Lifting mechanism Wire rope hoist or electric chain hoist
Working class A3 ~ A5
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC -36 / 48V
Motor protection class IP54
Control way Cabin, wireless remote, pendant push button.
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied



Advantage of single girder overehad crane



Grab bridge crane is mainly composed of box frame, grab trolley, truck operation mechanism, driver cab and electrical control system.The pickup device is a grab to grab bulk materials.



The grab bridge crane has an open and close mechanism and a lifting mechanism.



The open and close mechanism drives the grab to close, grab the material, when the bucket closed, immediately start the lifting mechanism, make the four wire rope average load for lifting work.



When discharging, only start the opening and closing mechanism, then the bucket will open and tilt the material.The grab bridge crane is basically the same as the hook bridge crane except that the lifting mechanism is different.



Configuration of single girder overehad crane

1. Lifting motors(ABM)
2. traveling motors ABB, Siemens, (Three-in-one type)
3. Electrics are Schneider,
4. SKF bearings

Safety feature of single girder overehad crane

1. Weight overload protection device
2. Top quality durable polyurethance buffer
3. Crane traveling limit switch
4. Low voltage protection function
5. Emergency stop system
6. Current overload protection function
7. Warning lights
8. Weight overload protection device



Q&A

1. What's information should I provide to get the price?

More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.

2. Which kind crane can you provide?

Weihua is a famous leading manufacturer with experienced designers, engineers and a 600- people R&D team to provide all kinds crane with customized parameters.

3. What services can you provide?

We have a complete pre-sales&after-sales service system, and our engineers are available overseas. And we also provide training for your crane operators.

4. Which brand are the accessories and electronic components in your cranes?

We have a long term cooperations with ABB, Siemens, Schneider, , etc. And we have world-leading processing machines which are imported from Japan and German.

5. Do you provide crane spare parts?

Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, enclosed busbar and so on.

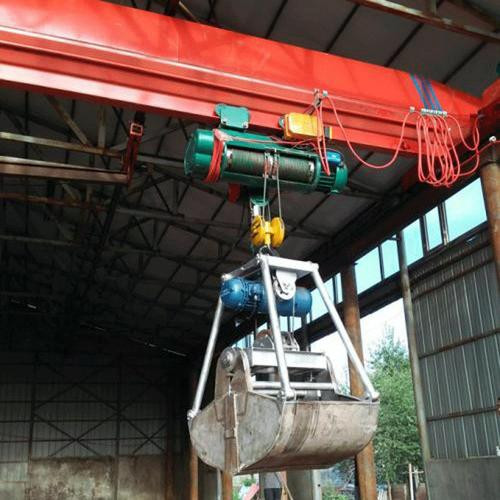

3T 5T 10T Single Girder Overhead Crane , Grab Bridge Crane Strong Bearing Capacity 0
