Low Noise Single Girder Underslung Crane 5 Ton Soft Starting And Stopping

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : High quality standard exported plywood crate Delivery Time : 15-20 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: LDP

Detail Information

Color: Yellow Or As Your Request Protection Device: Include
Place Of Origi: Henan, China Main Electrical Parts: Schneider, CHINT
Lifting Mechanism: Electric Wire Rope Hoist Travel Speed: Single Speed, Variable Speed
High Light:

single beam overhead crane


single girder underslung crane

Product Description

Good Excellent Service High-Quality 5Ton Ldp Model Overhead Crane Best Price

LDP Sinlge Girder Overhead Crane

It has the advantages of large car wheel base, stable operation, compact structure, good rigidity, sensitive operation, low noise, safe and reliable, beautiful shape, etc. It is widely used in places where the working environment temperature is between -25℃ and +40℃, and the headroom height of workshop is relatively low.

The LDP type electric single beam crane belongs to ultra-low headroom light small crane. The electric hoist is located on the side of the main beam, which increases the service space of the hook and can reduce the height and cost of the workshop.

LDP type electric single beam crane is designed and manufactured according to GB/ t3811-2008 JB/ t1306-2008 standard, and CD1, MD1 electric hoist supporting the use of light lifting equipment.Its rated load is 3t~10t, span is 7.5m~22.5m, working level is A4, lifting height is 6~12m, and the operation mode is mainly ground operation (ground operation, remote control operation, ground + remote operation).If the span and lifting height are beyond the range listed in the sample, we can also carry out non-standard design according to the user's requirements.


Technical parameter of single girder overhead crane

Loading capacity 0.5 ~ 32t
Lifting height 3 ~ 30 m or customized
Lifting speed Vary with lifting capacity, or customized.
Span 7.5~31.5 m
Lifting mechanism Wire rope hoist or electric chain hoist
Working class A3 ~ A5
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC -36 / 48V
Motor protection class IP54
Control way Cabin, wireless remote, pendant push button.
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied


Feature of single girder overhead crane

1). Light structure, easy installation and maintenance;
2). Widely used in different places for hoisting such as factories, warehouses and material yards;
3). Reasonable structure, strong bearing capacity ;
4). Low noise, soft starting and stopping ;
5). Safe and reliable operation ;
6). Low-cost maintenance, long working life;
7). Strongbox type, welding by machine hand.;
8). Wheels, wire rope drum, gears, couplings are processed by CNC machine center, TOP quality control;
9). Heavy-duty slip ring motor, or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth running

10). Siemens main electric parts are used for durable and safe operation.;
11). Prohibited to use in the environment with inflammable, explosive and corrosive media.



Single beam overhead traveling crane has such features as reasonable structure and fine rigidity.


It is extensively used for material handling in various industries, such as mechanical processing workshops, machinery manufacture, metallurgy, petroleum, petrifaction, port, railway, civil aviation, food, papermaking, construction, electronics industries, workshop and warehouses, etc




1. What's information should I provide to get the price?

More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.

2. Which kind of crane can you provide?

Weihua is a famous leading manufacturer with experienced designers, engineers and a 600- people R&D team to provide all kinds of crane with customized parameters.

3. What services can you provide?

We have a complete pre-sales&after-sales service system, and our engineers are available overseas. And we also provide training for your crane operators.

4. Which brand is the accessories and electronic components in your cranes?

We have long term cooperation with ABB, Siemens, Schneider, , etc. And we have world-leading processing machines which are imported from Japan and German.

5. Do you provide crane spare parts?

Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, enclosed busbar and so on.

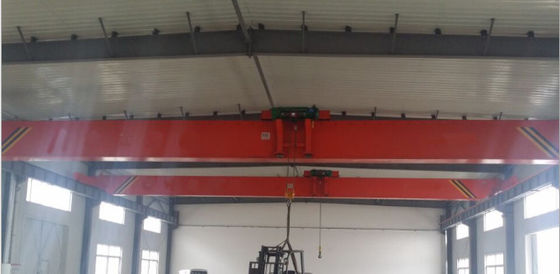

Low Noise Single Girder Underslung Crane 5 Ton Soft Starting And Stopping 0

Low Noise Single Girder Underslung Crane 5 Ton Soft Starting And Stopping 1

Low Noise Single Girder Underslung Crane 5 Ton Soft Starting And Stopping 2
