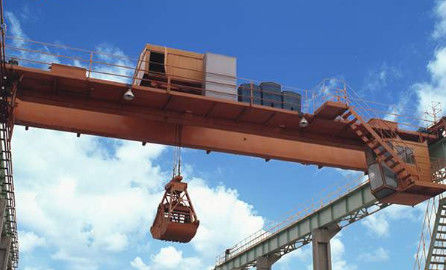

Industrial Double Girder Overhead Crane 50 Ton Stable Running Long Service Life

Product Description

Customized Industry Use 50 Ton Double Girder Travelling Overhead Crane Design Drawing



General description of double girder overhead crane



For heavy duty work frequency, QD double girder bridge crane can be design as A5, A6, A7, A8 ISO standard. Equiped with diffierent lift tools can easily meet different lift requirements such as spreader beams for pipes or plates, lift clamp for slabs, grab for woods, scraps, or others.



Standard Lift Capacity: 5T, 10T, 16T/3.2T, 32T/5T, 50T/5T, 75T/10T, 100T/10T



Lift Height: Up to 30m or as required



Span: Standard up to 31.5m, or as your request



Technical parameter of double girder overhead crane

Loading capacity	5 ~ 500t
Lifting height	3 ~ 30 m or customized
Lifting speed	Customized or vary with the lifting capacity
Span	10.5~31.5 m
Lifting mechanism	European hoist, European winch trolley
Working class	A5 ~ A8
Working temperature	-20 ~ 40 ℃
Power supply	AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage	DC-36 / 48V
Motor protection class	IP54 IP55 IP65
Control way	Cabin, wireless remote, pendant push button.
Safety device	Buffer, current overload protection, overload device, power failure protection
Application area	Factory,workshop,warehouse,power station,logistic,etc.
Painting color	Yellow, Red or Customized



Product superiority of double girder overhead crane



1. Support customization, excellent quality guarantee price



Q235B carbon steel structure steel adopts a seamless forming process, more solid and beautiful



A full-span maintenance channel is provided with thin steel plates and two layers of safety handrails along both sides of the bridge



Galvanized epoxy resin paint



Three layers of paint



2. Motor protection class IP54, F class insulation, equipped with an overload protection device.



Hongda brand, smooth operation, long service life design, is the best domestic crane motor.



Insulation class F, protection class IP54

3. The crane operation control adopts CAM control, the driver cab, moves with the vehicle, more convenient and clear control cargo position.



Joystick, button, single light control; Multi-ship speed regulating resistor; Up and down. Left and right; Front and back; Start and stop; An emergency;



Air conditioning can be installed according to customer requirements



Safe and reliable



High work efficiency



Improve your work environment



4. The speed is controlled by frequency conversion, so that the cargo can move and land safely and accurately.

Wire rope hoisting, with trolley, reducer, drum, brake, motor, including overload limit switch



Insulation class F class



Lifelong lubrication (safe use cycle)



FAQ of double girder overhead crane



Q1. Can the cranes be customized?



Yes,every customer’s working condition is different, all of our products can be customized depend on customers’ requirements. Please give us the information as clear as you can, so we can give our best design to suit for your demands.



Q2. How many operation methods for my selections?



We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way you need.



Q3. I have low headroom in my workshop, is it possible to install a crane in it?



We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.



Q4. Do you supply lift tools?



Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...



Q5: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:

1. Lifting capacity.



2. Span length. (rail center to rail center)



3. Lifting height. (hook center to ground)
