Single Beam Overhead Travelling Crane 5T 10T 20T Excellent Performance

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : High quality standard exported plywood crate Delivery Time : 15-20 days
Payment Terms : Western Union, L/C, T/T Supply Ability : 300 sets/per month
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: LD

Detail Information

Feature: Bridge Crane Application: Plants,factory,warehouse
Power Supply: 3 Phase 380V 50hz Or According To Your Demands Color: Clients' Requirments
Span: 35M Work Duty: A5-A6
High Light:

explosion proof overhead crane


electric bridge crane

Product Description

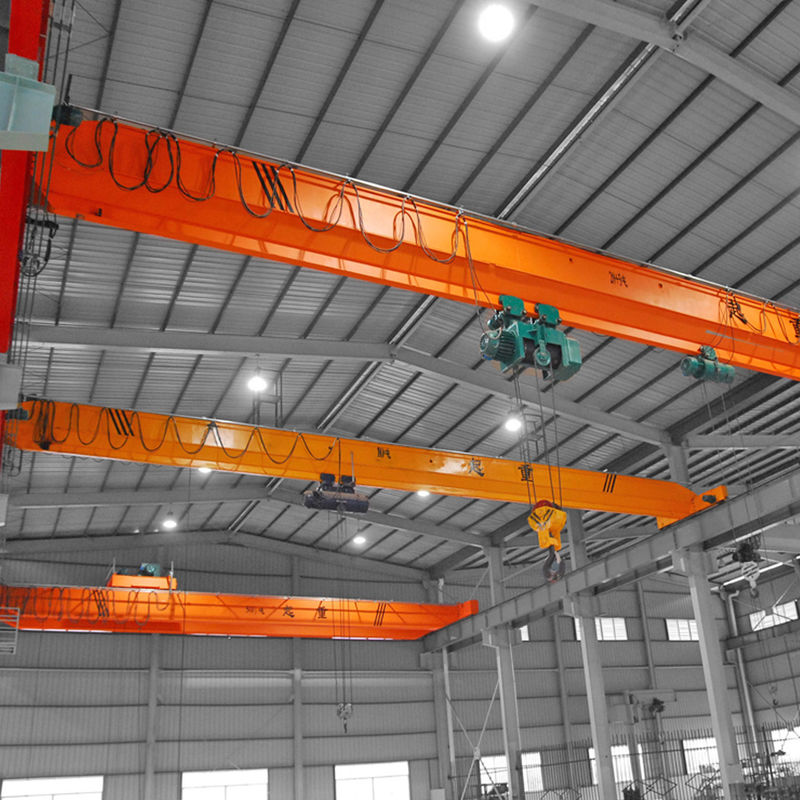

Single beam overhead travelling crane 5ton 10ton 20 ton bridge crane

Description of single girder overhead travelling crane

Overhead Travelling Beam Crane Equipments is a kind of light duty crane, and uses hoist as lifting tool, including hand chain hoist, electric chain hoist and electric wire rope hoist.

Electric hoist.can move horizontally on the rail fitted under a beam. This type crane holds many characters of light structure, easy to install and maintain, which is typically used for either manufacturing or maintenance applications, where efficiency or downtime are critical factors, for instance, plants, warehouses, or material stocks. The beam adopts the whole type without welding, and the structure is more reasonable and reliable. Cabin, radio controller or hand controller can be used for operating. The cabin has seats inside. Floor adopts insulation pads and toughened glass for windows; extinguisher and fanareequipped. Other accessory equipments like air-condition, buzzer, interphone can be configured according to ourclient’s request. The travelling motor can be standard motor, soft start motor or work with frequency controller to meet the different speed requirements.


Technical parameter of single girder overhead travelling crane

Loading capacity 0.5 ~ 32t
Lifting height 3 ~ 30 m or customized
Lifting speed Vary with lifting capacity, or customized.
Span 7.5~31.5 m
Lifting mechanism Wire rope hoist or electric chain hoist
Working class A3 ~ A5
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC -36 / 48V
Motor protection class IP54
Control way Cabin, wireless remote, pendant push button.
Safety device Buffer, current overload protection, overload device, power failure protection
Application area Factory,workshop,warehouse,power station,logistic,etc.
Painting color Yellow, Red or Customized


Advantage of single girder overhead travelling crane

1. Lightweight structure, excellent performance, advanced design concept, effectively improve space utilization.

2. Made of high quality steel, durable and corrosion resistant.

3. Complete standard configuration, stable running, fast positioning, stable and safe operation.

4. Simple maintenance, low installation and maintenance costs, and long service life.



1. What's information should I provide to get the price?

More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.

2. Which kind crane can you provide?

Weihua is a famous leading manufacturer with experienced designers, engineers and a 600- people R&D team to provide all kinds crane with customized parameters.

3. What services can you provide?

We have a complete pre-sales&after-sales service system, and our engineers are available overseas. And we also provide training for your crane operators.

4. Which brand are the accessories and electronic components in your cranes?

We have a long term cooperations with ABB, Siemens, Schneider, , etc. And we have world-leading processing machines which are imported from Japan and German.

5. Do you provide crane spare parts?

Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, enclosed busbar and so on.
