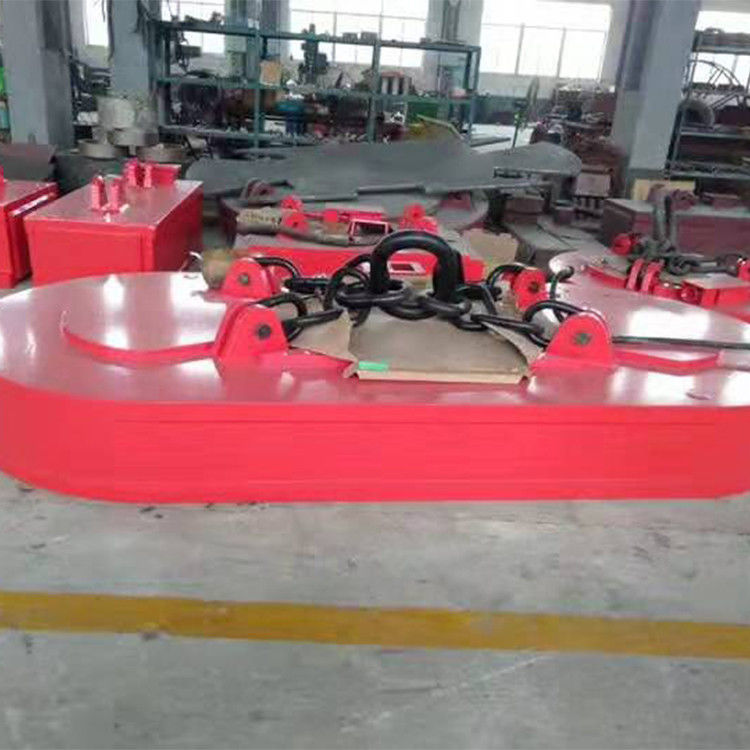

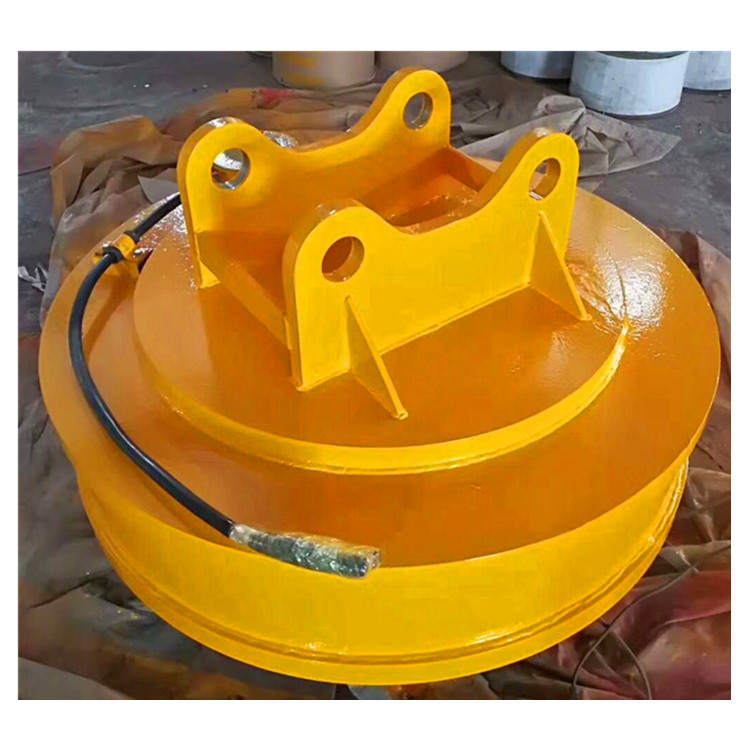

High Frequency Lifting Solenoid Electromagnet Steel Beam For Scrap Iron Factory

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : packed by rain proof plastic cloth Delivery Time : 10 work days
Payment Terms : T/T, L/C Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO

Detail Information

Material: Permanent Neodymium Magnets Certification: ISO9001
Dimension(L*W*H): Customised Type: High Frequency
After-sales Service Provided: Field Installation, Commissioning And Training Current: 18A
High Light:

circular lifting magnet


magnetic scrap lifter

Product Description

Lifter Magnet Industrial Electromagnetic Steel Beam For Scrap Iron Factory
Product presentation
Lifting electromagnetic chuck also known as lifting electromagnet, the product by computer optimization design, magnetic circuit more scientific and reasonable, air gap magnetic density, magnetic penetration depth deep.
The coil protection adopts the rolled high manganese steel plate with good abrasion resistance and strong impact resistance. Lightweight, low energy consumption, large lifting weight, long service life.
High insulation grade, insulation treatment through a unique process, improve the electrical and mechanical properties of the coil, usually using constant voltage control. Strong excitation (DC-290v /200V) can further improve the hoisting capacity. Large electromagnets can also be overexcited (DC-350v /290V/200V), speed up the current rise speed, can play a stronger lifting capacity.
Strong attraction force and energy saving

Normal & High temperature optional

Simple operation and maintenance
Matters need attention--model selection
1. Please choose the normal temperature type when the temperature of suction and transport materials is lower than 100, and the high-temperature type when the temperature exceeds 100.
2. When the power supply duration exceeds 60, please choose the high-frequency type.
3. Please choose the diving type (diving depth of 100m) for the suction and hoisting materials in water.
The parameters of the submersible electromagnet are the same as that of normal temperature electromagnet. Therefore, it is not listed in the sample.
If the user needs a diving type, please specify it when ordering.
4. Ambient temperature: normal temperature -540, high temperature -580. The altitude shall not exceed 2000m.
5. Equipment matching: the power (current) of the rectifier control equipment is greater than or equal to the sum of the cold power (current) of single or multiple units.
High Frequency Lifting Solenoid Electromagnet Steel Beam For Scrap Iron Factory 0

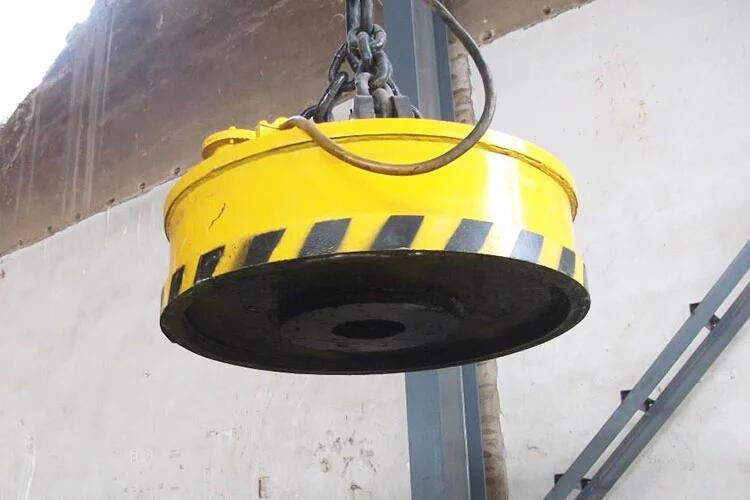

Lifting electromagnetic crane combination mode
High Frequency Lifting Solenoid Electromagnet Steel Beam For Scrap Iron Factory 1
 High Frequency Lifting Solenoid Electromagnet Steel Beam For Scrap Iron Factory 2

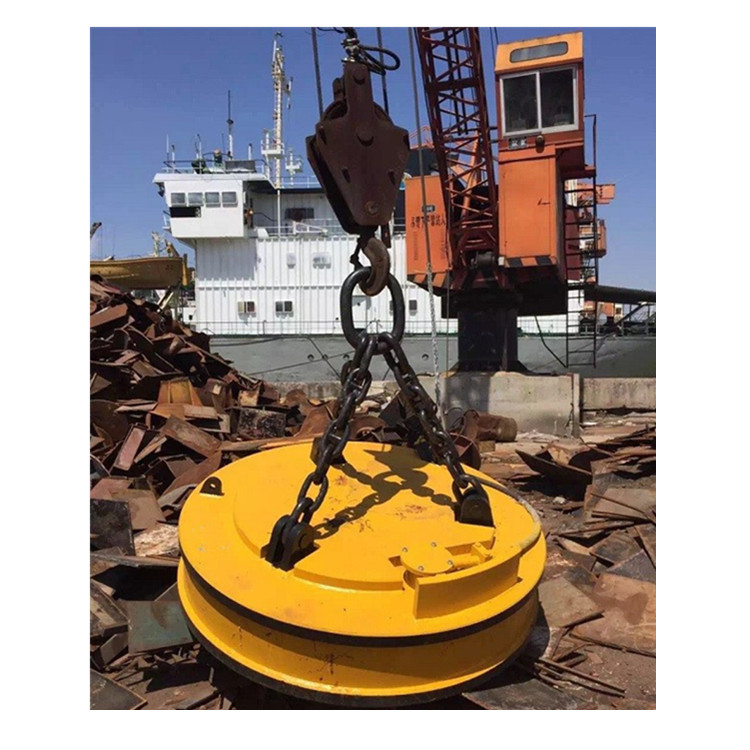

Electromagnets are used in conjunction with various hoisting machinery and are widely used for handling and carrying pig iron, scrap,
square billet, sheet, pipe and other ferromagnetic materials in steelmaking plants, rolling mills, scrap steel processing plants,
large foundry workshops, shipyards, heavy machinery factories, steel warehouses, port terminals and stations.

Technical parameters


Model MW5- MW5- MW5- MW5- MW5- MW5- MW5-
Attention 110L/1-75 130L/1-75 150L/1-75 165L/1-75 180L/1-75 210L/1-75 240L/1-75
dimension A 1100 1300 1500 1650 1800 2100 2400
B 1270 1290 1360 1670 1600 1900 2020
Mass (kg) 1500 2280 3180 3840 4690 7500 9800
Power (kw) 6.1 9 11.3 12.2 16.3 21.7 25.9
Cold-state current (A) 27.7 40.9 51.4 55.5 74.1 98.6 117.7
lifting capacity (kg) steel ball 6500 8500 11000 12500 14500 21000 26000
steel ingot 1000/800 1400/1100 1900/1500 2300/1800 2750/2100 3500/2800 4800/3800
steel scrap 450/400 700/600 1100/900 1300/1100 1600/1350 2200/1850 2850/2250
