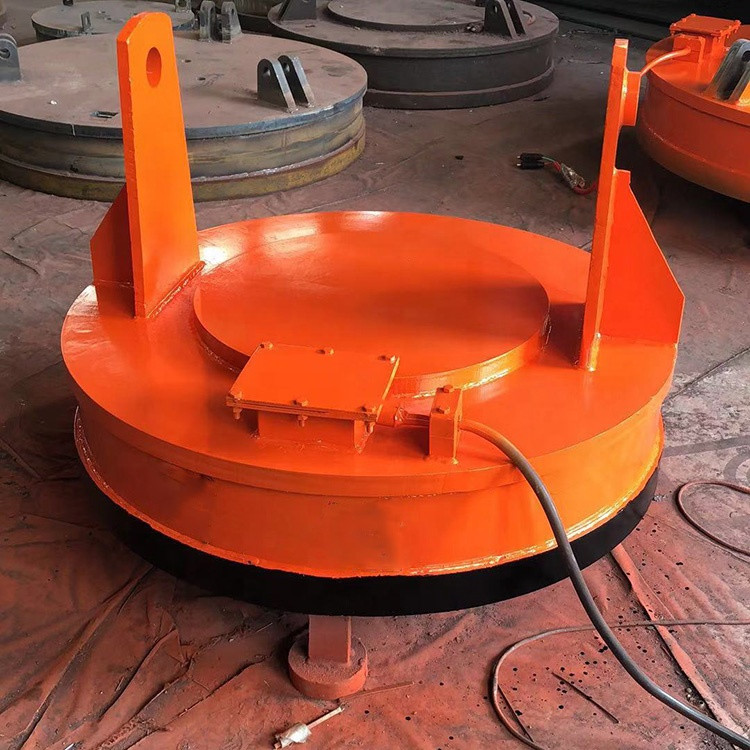

Customized Crane Round Magnetic Chuck For Lifting Steel Metal Scrap

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : packed by rain proof plastic cloth Delivery Time : 10 work days
Payment Terms : T/T, L/C Supply Ability : 5 sets
Place of Origin: China Brand Name: Silence
Certification: ISO

Detail Information

After-sales Service Provided: Field Installation, Commissioning And Training Warranty: 24 Months
Dimension(L*W*H): 73*40*48cm Can Be Installed On: Single Girder Crane, Or I-beam, H-beam
Place Of Origin: Henan, China Material: Carbon Steel
High Light:

circular lifting magnet

,

magnetic scrap lifter

Product Description

Customized Crane Magnet For Lifting Steel Metal Scrap Manufacturer Widely Use Price


Product presentation

 Electromagnetic crane can produce a strong magnetic field force, dozens of tons of heavy iron, iron wire, iron nails, scrap iron and other iron materials, do not box, do not pack and do not need to tie up, can be very convenient to collect and carry, not only the operation of labor-saving, and simplified work. Steel and machinery packed in wooden cases can be handled equally.

When the crane works, as long as the current in the electromagnet coil is not stopped, the lifted weight will not fall, the invisible magnetic force is more reliable than a strong chain. If the power is cut off for some reason, it will cause an accident, so some electromagnetic cranes are equipped with steel claw, to transport the heavy lifting, the strong steel claw will automatically fall down to tightly clasp them.

The crane cannot carry hot iron because hot steel cannot be magnetized. The large electromagnetic crane can lift nearly 100 tons of heavy objects at one time.
Electromagnetic crane work due to the loss of power, the lifting of the fall of the articles may cause harm, must be able to ensure the power supply of the electromagnetic sucker. Therefore, the lifting electromagnet of the electromagnetic crane should be powered by a special circuit.



Product feature

Adopt totally sealing structure with good property of moisture-proofing




Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption




The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life


Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%, which improves the efficiency of the electromagnet


High-temperature type electromagnet adopts a unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands the application range of the electromagnet


Simple and convenient installation, operation and maintenance


Matters need attention--model selection

1. Please choose the normal temperature type when the temperature of suction and transport materials is lower than 100, and the high-temperature type when the temperature exceeds 100.

2. When the power supply duration exceeds 60, please choose the high-frequency type.

3. Please choose the diving type (diving depth of 100m) for the suction and hoisting materials in water.

The parameters of the submersible electromagnet are the same as that of normal temperature electromagnet. Therefore, it is not listed in the sample.

If the user needs a diving type, please specify it when ordering.

4. Ambient temperature: normal temperature -540, high temperature -580. The altitude shall not exceed 2000m.

5. Equipment matching: the power (current) of the rectifier control equipment is greater than or equal to the sum of the cold power (current) of single or multiple units.

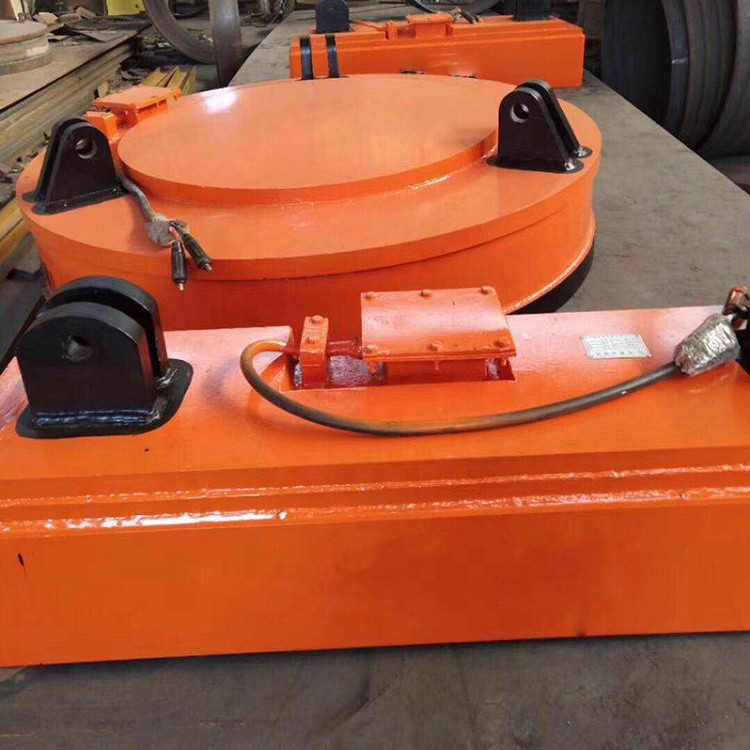

Customized Crane Round Magnetic Chuck For Lifting Steel Metal Scrap 0

Applications





Electromagnets are used in conjunction with various hoisting machinery and are widely used for handling and carrying pig iron, scrap,

square billet, sheet, pipe and other ferromagnetic materials in steelmaking plants, rolling mills, scrap steel processing plants,

large foundry workshops, shipyards,

heavy machinery factories, steel warehouses, port terminals and stations.

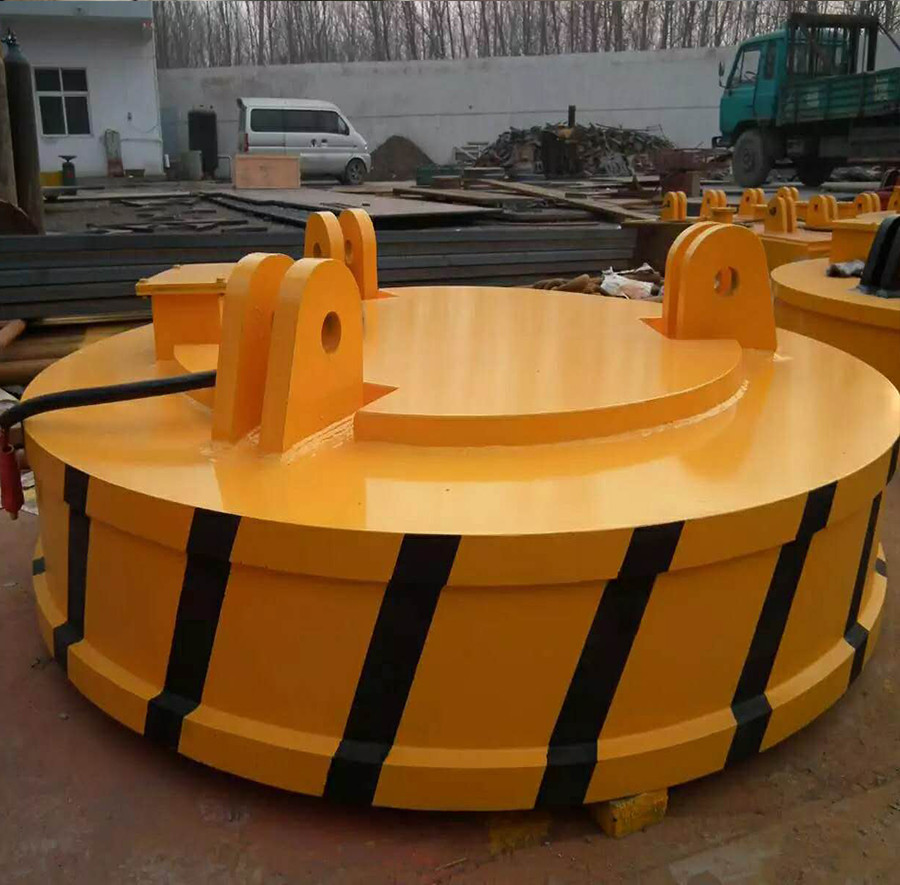

 Customized Crane Round Magnetic Chuck For Lifting Steel Metal Scrap 1


Technical parameters



Model MW5- MW5- MW5- MW5- MW5- MW5- MW5- MW5-
Attention 70L/1 110L/1 130L/1 150L/1 165L/1 180L/1 210L/1 240L/1
Dimension A 700 1100 1300 1500 1650 1800 2100 2400
B 800 1080 1210 1220 1230 1470 1800 2020
Mass (kg) 500 1250 2050 2700 3400 4100 6800 9000
Power 3.2 7 11.9 15.6 19.8 22.4 27.9 33.9
Cold-state current (A) 14.7 35.1 54 71 90 102.4 127 154
Lifting capacity (kg) steel ball 2500 6500 8500 11000 13000 14500 17000 26000
steel ingot 380/200 1000/800 1400/1100 1900/1500 2300/1800 2750/2100 3200/2500 4800/3800
steel scrap 120/100 450/400 700/600 1100/900 1350/1040 1600/1350 2000/1600 2850/2250
