Fast Loading Pillar Mounted Jib Crane Operation Smoothly Free Maintenance

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth Delivery Time : 15 days
Payment Terms : T/T, L/C Supply Ability : 10 sets
Place of Origin: China Brand Name: Silence
Certification: ISO CE Model Number: BZ

Detail Information

Lifting Mechanism: Electric Chain Hoist And Electric Wire Rope Hoist Working Class: A3-A6
Traveling Speed: 20m/min Rated Loading Capacity: 10 Ton
Shipping: Support Sea Freight And Air Freight Operating Environment: -20℃--+40℃
High Light:

column mounted jib crane


swing arm jib crane

Product Description

3 Ton Workshop Widely Used Floor Mounted Jib Crane, Jib Crane Design Calculation



Product presentation


BZD type electric rotary cantilever crane is model CD1 and MD1 electric hoist supporting the use of a crane, the crane by the post, rotating arm rotary drive device and electric hoist, column bottom through the anchor bolt on the concrete foundation, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects.

Fixed column slewing crane is composed of column device, slewing device, slewing device and chain electric hoist, including upper column, lower column, main beam, main beam tie rod, lifting mechanism (chain electric hoist), rotary mechanism, electrical system, ladder climbing and maintenance platform.

The lower end of the column is fixed on the concrete foundation, and the rotating arm can be rotated according to the user's requirements.The turning part is divided into manual turning and electric turning. The chain hoist is installed on the spiral arm track for lifting heavy objects.



Product superiority


BZ type pillar jib crane has the advantages of unique structure, high safety, reliability, high working efficiency, energy-saving and time saving, flexible operation, etc.


1. Compact Design

The compact structure design makes pillar jib crane light in dead weight and excellent in work performance, improve space utilization rate and narrows hook operation distance to the maximum intently.


The best material handling solution for your applications.


2. Smooth, Fast Loading, excellent performance

Stepless frequency conversion control system is installed to the crane and trolley, which makes pillar jib crane brake stably, locate accurately, perform reliably, and travel steadily, position quickly, and solve the problem of the swing of loads.


3. Safer, Reliable, Using Free Maintenance Design

The best technology is adopted which makes frequent operations safe and efficient.


Perfect braking systems can largely improve pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times.


Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.



Using maintenance technology

1. Operators shall strictly abide by the operation rules of the crane, and overload is not allowed.

2. Terminal baffle is not allowed to be used as the normal parking method.

3. The chain or steel rope of the heavy object must be strong enough and securely tied.

4. Lifting and moving of heavy objects shall be carried out in the vertical condition.


It is prohibited to drag or forcibly lift heavy objects buried underground with electric hoist.

5. It is strictly forbidden to stand on the top of lifting heavy objects and strictly forbidden to walk on the bottom.

6. Do not hang heavy objects in the air after work or rest.

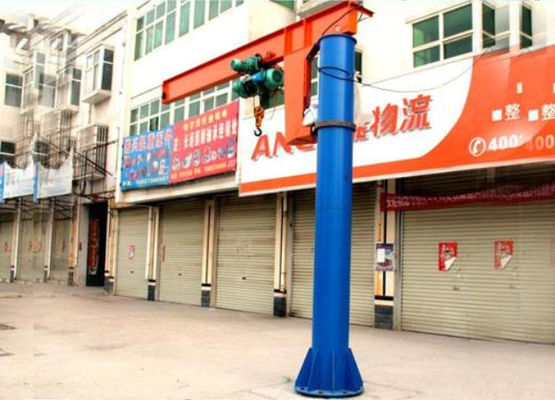

Fast Loading Pillar Mounted Jib Crane Operation Smoothly Free Maintenance 0



Technical parameters

Fast Loading Pillar Mounted Jib Crane Operation Smoothly Free Maintenance 1

Model BZ0.5 BZ1 BZ2 BZ3 BZ5
Lifting capacity T 0.5 1 2 3 5
Max. Lifting height M 3 3 3 4 4
Max. Horizontal throw M 2.6 3-4 2.9-3.9 3.8 3.7
Max. Radius of gyration M 3.6 4-5 4-5 5 5
Max. Rotation moment T/M 3 6 12 18 27
Angle of revolution Degree 360
Lifting speed Normal m/min 8(4)
Slow m/min 0.8(0.4)
Traveling speed m/min 20
Angle of revolution speed m/min 1 0.75 0.7 0.9 0.6



Fast Loading Pillar Mounted Jib Crane Operation Smoothly Free Maintenance 2
