Luffing 270° Pillar Mounted Jib Crane Span 4.5m~6m
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||Negotiable|
|Packaging Details :||Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth||Delivery Time :||15 days|
|Payment Terms :||T/T, L/C||Supply Ability :||10 sets|
|Place of Origin:||China||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||BZ|
|Lifting Mechanism:||Electric Chain Hoist And Electric Wire Rope Hoist||Working Class:||A3-A6|
|After-sales Service Provided:||Rovided: Field Maintenance And Repair Service||Customization:||Provided|
|Lifting Speed:||8m/min||Rated Loading Capacity:||3 Ton|
post mounted jib crane,
swing arm jib crane

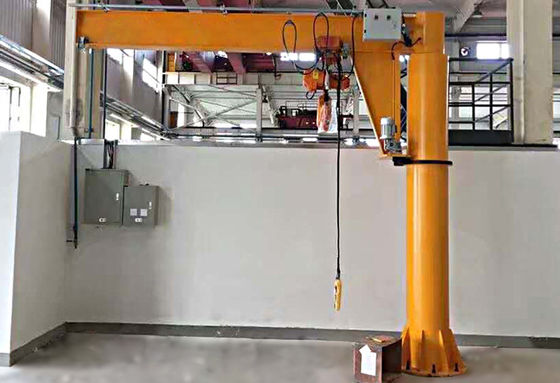

3 Ton Workshop Widely Used Floor Mounted Jib Crane, Jib Crane Design Calculation
The working strength of the slewing jib crane is light, the crane is composed of the column, the slewing driving device of the slewing arm and the electric hoist.
The lower end of the column is fixed on the concrete foundation by the anchor bolt, and the slewing arm is driven by the cycloidal needle wheel reduction device. Crane slewing for hollow steel structure, lightweight, span, large lifting weight, economic and durable.
Built-in rotary arm lifting mode-type walking mechanism, using special engineering plastic walking wheel with rolling bearing, low friction, walking briskness; Structure size is small, especially conducive to improve the hook travel.
Rotary jib crane is a new generation of light hoisting equipment for modern production, with high-reliability chain hoist is especially suitable for short-distance, frequent use, intensive hoisting operation, with high efficiency, energy-saving, small footprint, easy to operate and maintain and other characteristics.
BZ type pillar jib crane has the advantages of unique structure, high safety, reliability, high working efficiency, energy-saving and time saving, flexible operation, etc.
1. Compact Design
The compact structure design makes pillar jib crane light in dead weight and excellent in work performance, improve space utilization rate and narrows hook operation distance to the maximum intently.
The best material handling solution for your applications.
2. Smooth, Fast Loading, excellent performance
Stepless frequency conversion control system is installed to the crane and trolley, which makes pillar jib crane brake stably, locate accurately, perform reliably, and travel steadily, position quickly, and solve the problem of the swing of loads.
3. Safer, Reliable, Using Free Maintenance Design
The best technology is adopted which makes frequent operations safe and efficient.
Perfect braking systems can largely improve pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times.
Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.
Using maintenance technology
1. Operators shall strictly abide by the operation rules of the crane, and overload is not allowed.
2. Terminal baffle is not allowed to be used as the normal parking method.
3. The chain or steel rope of the heavy object must be strong enough and securely tied.
4. Lifting and moving of heavy objects shall be carried out in the vertical condition.
It is prohibited to drag or forcibly lift heavy objects buried underground with electric hoist.
5. It is strictly forbidden to stand on the top of lifting heavy objects and strictly forbidden to walk on the bottom.
6. Do not hang heavy objects in the air after work or rest.
|Max. Lifting height||M||3||3||3||4||4|
|Max. Horizontal throw||M||2.6||3-4||2.9-3.9||3.8||3.7|
|Max. Radius of gyration||M||3.6||4-5||4-5||5||5|
|Max. Rotation moment||T/M||3||6||12||18||27|
|Angle of revolution||Degree||360|
|Angle of revolution speed||m/min||1||0.75||0.7||0.9||0.6|
