Luffing 270° Pillar Mounted Jib Crane Span 4.5m~6m
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||Negotiable|
|Packaging Details :||Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth||Delivery Time :||15 days|
|Payment Terms :||L/C, T/T||Supply Ability :||3 sets|
|Place of Origin:||China||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||BZ|
|Traveling Speed:||20m/min||Lifting Speed:||8m/min|
|Color:||Customized||Application:||Indoor Or Outdoor|
|Ex, Factpru Inspection:||Included||Fall:||4/1|
post mounted jib crane,
column mounted jib crane

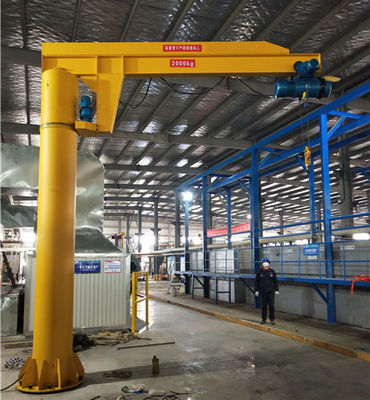

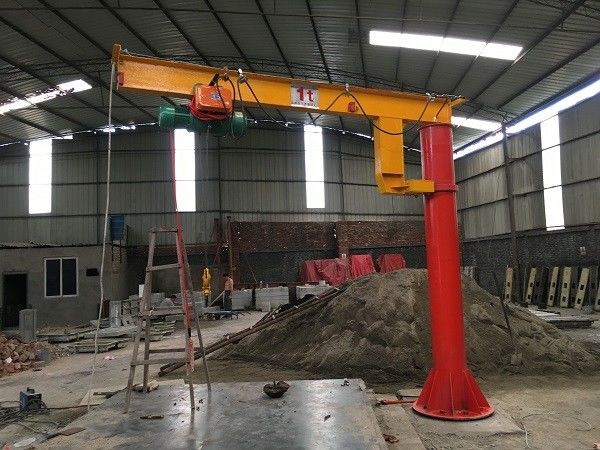

Silence Floor Mount 10 Ton 360 Degree Anti Swing Arm Lift Electric Jib Crane
Jib Crane is widely used to control or position a load in areas that are generally inaccessible to other material handling equipment.
They are designed to provide reliable long-life performance with minimum maintenance.
This jib crane provides 360-degree rotation. The flexible move mechanism makes you handle lifting tasks at ease.
5 Ton Floor Mounted Jib Cranes are directly fixed on the floor without any support to keep it upright.
To maintain it’s stability and not topple over it you fix it to a foundation of 3 to 5 feet deep and up to 4 to 10 feet square foundation base. The foundation depends on the load and reach.
The advantage of this type of crane is it doesn’t need a support column or structure and provides an optimal range of span and control compared to wall-mounted cranes and other types of Jib cranes.
1. Stable base: multiple chemical expansion screws are fixed, which are not easy to rust, and the stressed area is increased to ensure safety.
The stressed surface varies with different tonnage.
2. Rotation Angle: the rotation Angle can be 360° to meet the needs of different space environments.
3. Smooth operation and low noise: the machine runs smoothly, with low noise, flexible operation, and convenient installation and use.
4. Energy-saving, time-saving and labor-saving: it covers a small area and is easy to operate and maintain.
It is an energy-saving material hoisting equipment.
Using maintenance technology
1. Operators shall strictly abide by the operation rules of the crane, and overload is not allowed.
2. Terminal baffle is not allowed to be used as the normal parking method.
3. The chain or steel rope of the heavy object must be strong enough and securely tied.
4. Lifting and moving of heavy objects shall be carried out in the vertical condition.
It is prohibited to drag or forcibly lift heavy objects buried underground with electric hoist.
5. It is strictly forbidden to stand on the top of lifting heavy objects and strictly forbidden to walk on the bottom.
6. Do not hang heavy objects in the air after work or rest.
|Max. Lifting height||M||3||3||3||4||4|
|Max. Horizontal throw||M||2.6||3-4||2.9-3.9||3.8||3.7|
|Max. Radius of gyration||M||3.6||4-5||4-5||5||5|
|Max. Rotation moment||T/M||3||6||12||18||27|
|Angle of revolution||Degree||360|
|Angle of revolution speed||m/min||1||0.75||0.7||0.9||0.6|
