European Type 4.5T Column Mounted Jib Crane Free Standing Motorized
Contact Person : Iris
Phone Number : +86 19939938244
WhatsApp : +8619939938244
|Minimum Order Quantity :||1 set||Price :||Negotiable|
|Packaging Details :||Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth.||Delivery Time :||15 days|
|Payment Terms :||T/T, L/C||Supply Ability :||1 sets|
|Place of Origin:||China||Brand Name:||Silence|
|Certification:||ISO CE||Model Number:||BZ|
|Crane Material:||Q235B/Q345D||Rated Lifting Moment:||160 Kn|
|Certification:||ISO CE||Rotating Speed:||0.7r/min|
column mounted jib crane,
swing arm jib crane
CE Approval 3 Ton Cantilever Jib Crane For Workshop Material Handling

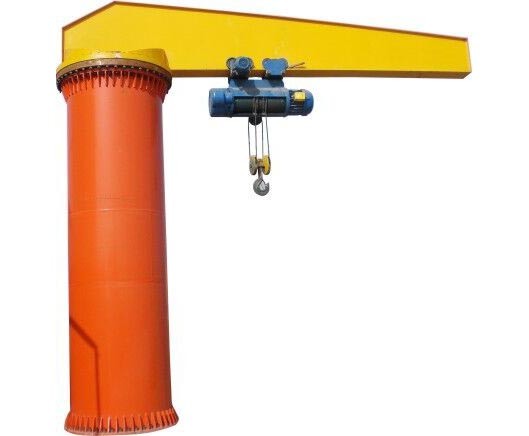

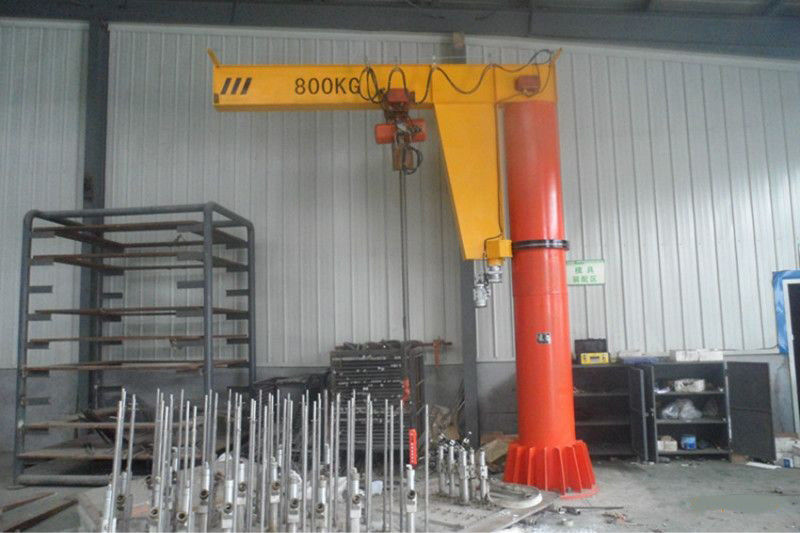

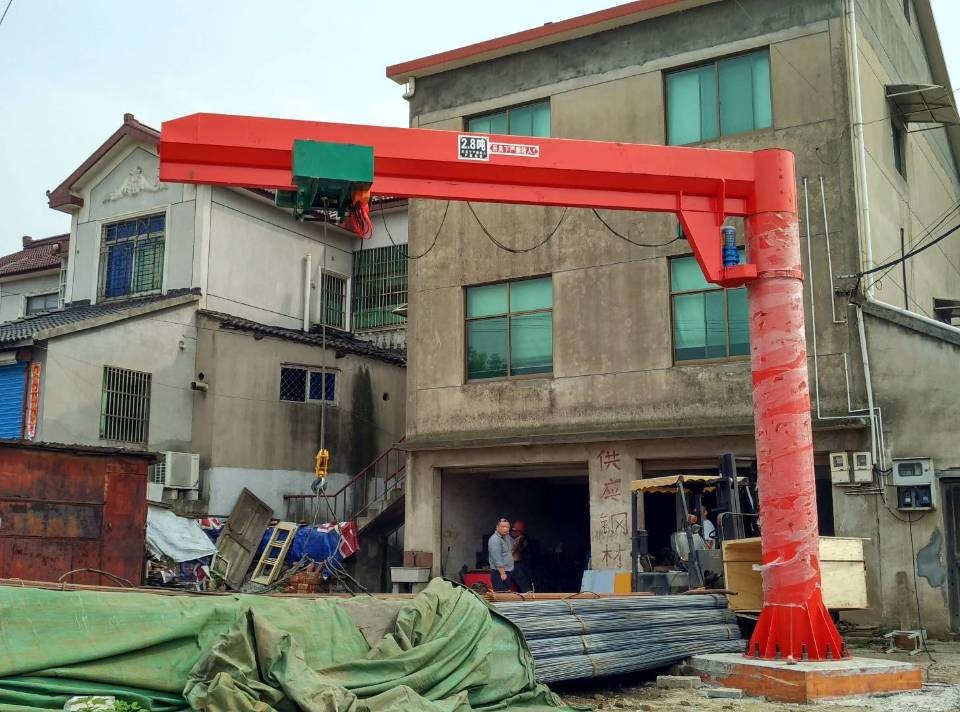

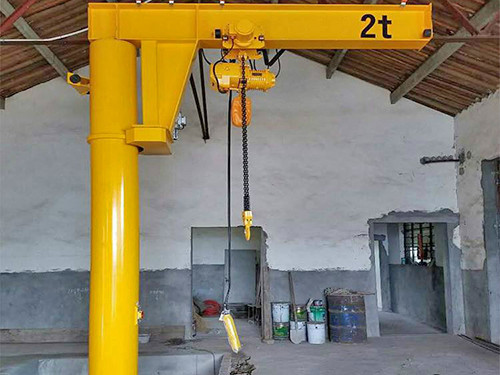

This BZD type column mounted jib crane normally works with an electric wire rope hoist or electric chain hoist, which consists of a fixed column, rotating arm, rotation drive mechanism and electric hoist.
The column is fixed on the concrete foundation by anchor bolt. The motor drives the driving mechanism to make the cantilever rotate. Electric hoist traveling on the jib beam.
BZD type jib crane is of Light&Middle work class, which can load 0.25t, 0.5t, 1t, 2t, 3t, 5t, 8t, 10t, 16t. You can choose different load capacity and rotation angle, such as 180°, 270°, 340°, 360°as per your actual working site.
The Slewing type is: Electrical type or manual type.
BZ type pillar jib crane has the advantages of unique structure, high safety, reliability, high working efficiency, energy-saving and time saving, flexible operation, etc.
1. Compact Design
The compact structure design makes pillar jib crane light in dead weight and excellent in work performance, improve space utilization rate and narrows hook operation distance to the maximum intently.
The best material handling solution for your applications.
2. Smooth, Fast Loading, excellent performance
Stepless frequency conversion control system is installed to the crane and trolley, which makes pillar jib crane brake stably, locate accurately, perform reliably, and travel steadily, position quickly, and solve the problem of the swing of loads.
3. Safer, Reliable, Using Free Maintenance Design
The best technology is adopted which makes frequent operations safe and efficient.
Perfect braking systems can largely improve pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times.
Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.
Using maintenance technology
1. Operators shall strictly abide by the operation rules of the crane, and overload is not allowed.
2. Terminal baffle is not allowed to be used as the normal parking method.
3. The chain or steel rope of the heavy object must be strong enough and securely tied.
4. Lifting and moving of heavy objects shall be carried out in the vertical condition.
It is prohibited to drag or forcibly lift heavy objects buried underground with electric hoist.
5. It is strictly forbidden to stand on the top of lifting heavy objects and strictly forbidden to walk on the bottom.
6. Do not hang heavy objects in the air after work or rest.
|Max. Lifting height||M||3||3||3||4||4|
|Max. Horizontal throw||M||2.6||3-4||2.9-3.9||3.8||3.7|
|Max. Radius of gyration||M||3.6||4-5||4-5||5||5|
|Max. Rotation moment||T/M||3||6||12||18||27|
|Angle of revolution||Degree||360|
|Angle of revolution speed||m/min||1||0.75||0.7||0.9||0.6|
